![ASRock X79 Extreme6/GB [16/101] Lan port led indications](/img/pdf.png)
ASRock X79 Extreme6/GB [16/101] Lan port led indications

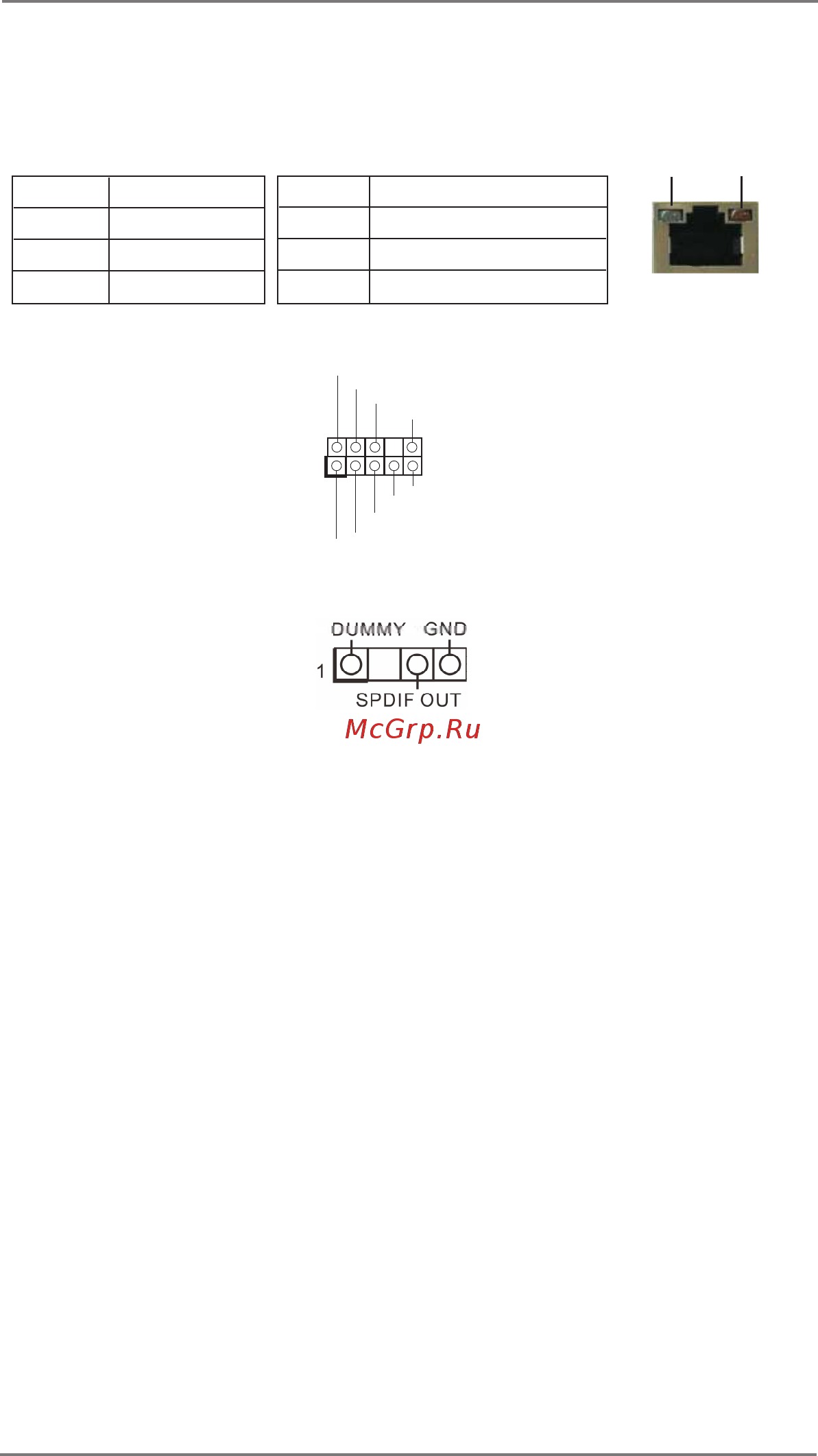

![ASRock X79 Extreme6/GB [16/101] Lan port led indications](/views2/1686228/page16/bg10.png)
16
* There are two LEDs next to the LAN port. Please refer to the table below for the LAN port LED
indications.
LAN Port LED Indications
Activity/Link LED SPEED LED
Status Description Status Description
Off No Link Off 10Mbps connection
Blinking Data Activity Green 100Mbps connection
On Link Green 1Gbps connection
** Front Panel Audio Header
(9-pin F_AUDIO1)
ACT/LINK
LED
SPEED
LED
LAN Port
J _S EN SE
O UT 2_ L
1
M IC _R ET
P RE SE NC E#
GND
O UT 2_ R
M IC 2_ R
M IC 2_ L
OUT_RET
*** HDMI_SPDIF Header
(3-pin HDMI_SPDIF1)
**** The onboard audio will be disabled when ASRock Game Blaster is installed, but you can still
enable it in the UEFI setup.
