ASRock X79 Extreme6/GB [35/101] Profile
![ASRock X79 Extreme6/GB [35/101] Profile](/views2/1686228/page35/bg23.png)
35

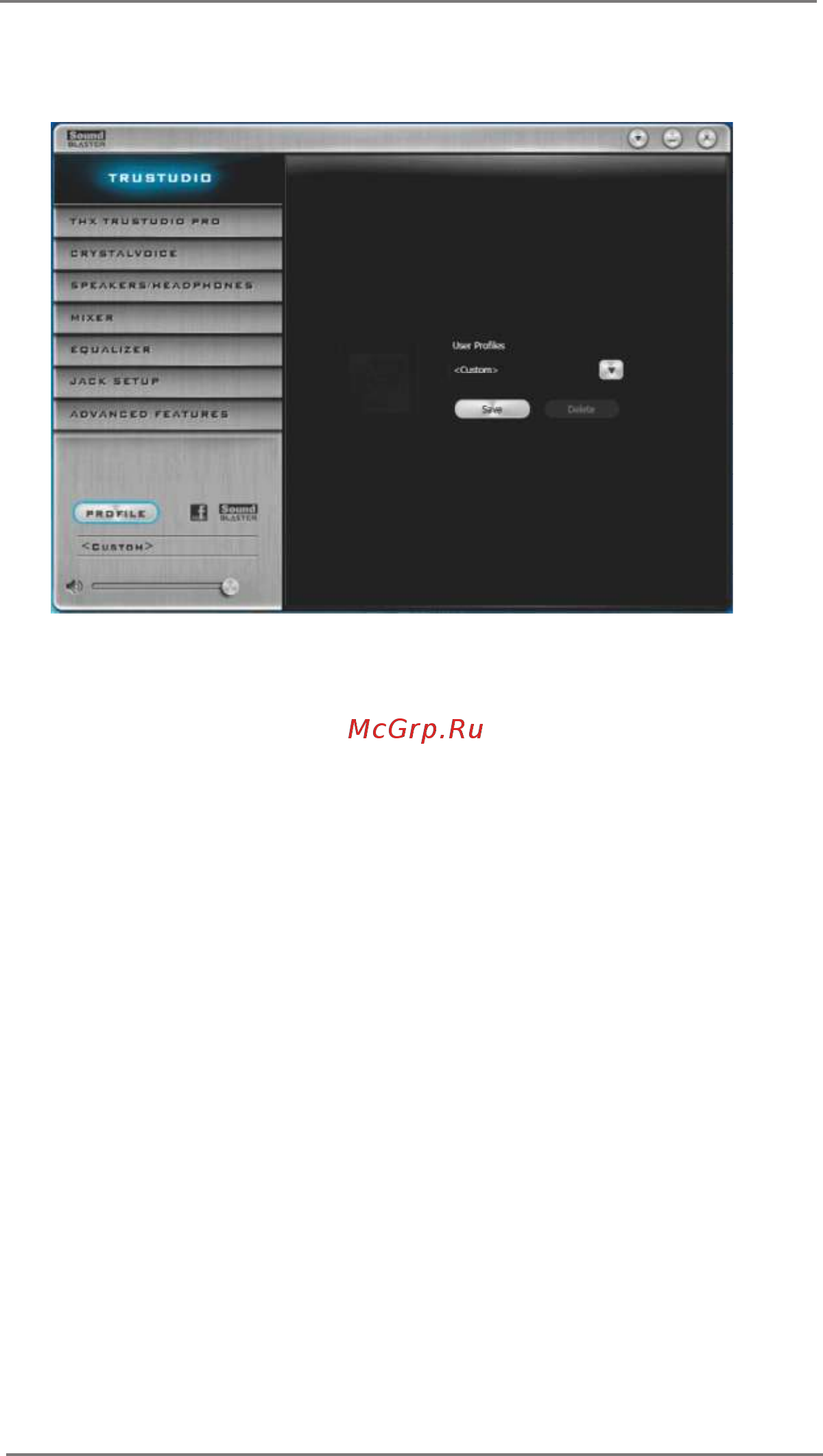

2.7.2.8 PROFILE
User Proles
You can save, load or delete your user proles. The default is <Custom>.
