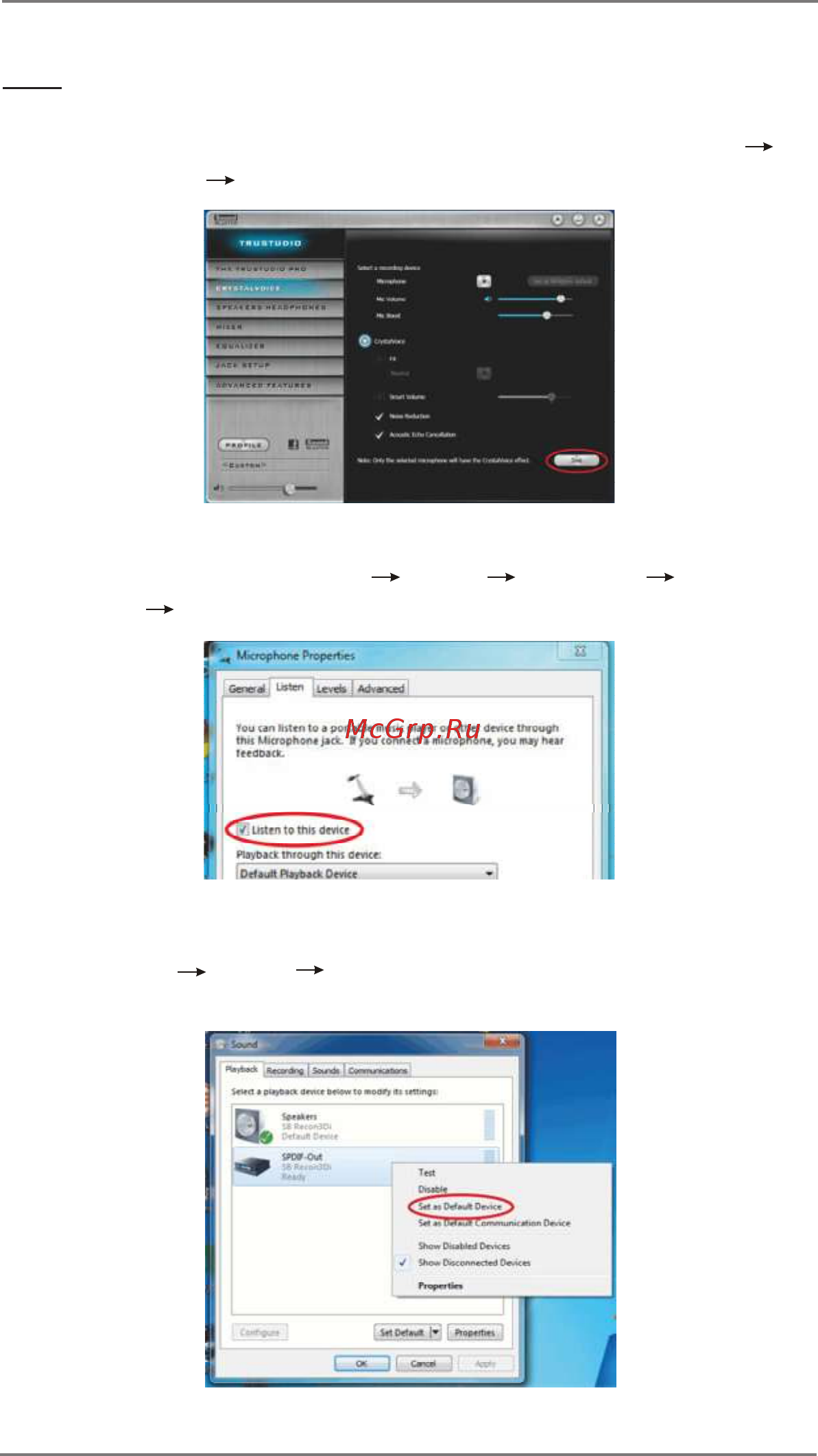

36
Note
1. If you want to hear your own voice through the microphone (Playback mode).
You can enable it by using ASRock Game Blaster's conguration Utility
CRYSTALVOICE Test.
OR you can change your settings to "playback mode" by checking the "Listen to
this device" box in Control panel Sound Recording Microphone
Properties Listen.
2. If you want to change your playback device to a SPDIF-Out device, go into
Control panel Sound Playback, then right click on SPDIF-Out and
check the "Set as Default Device" option.
