2
ASRock X79 Extreme7 Motherboard
English

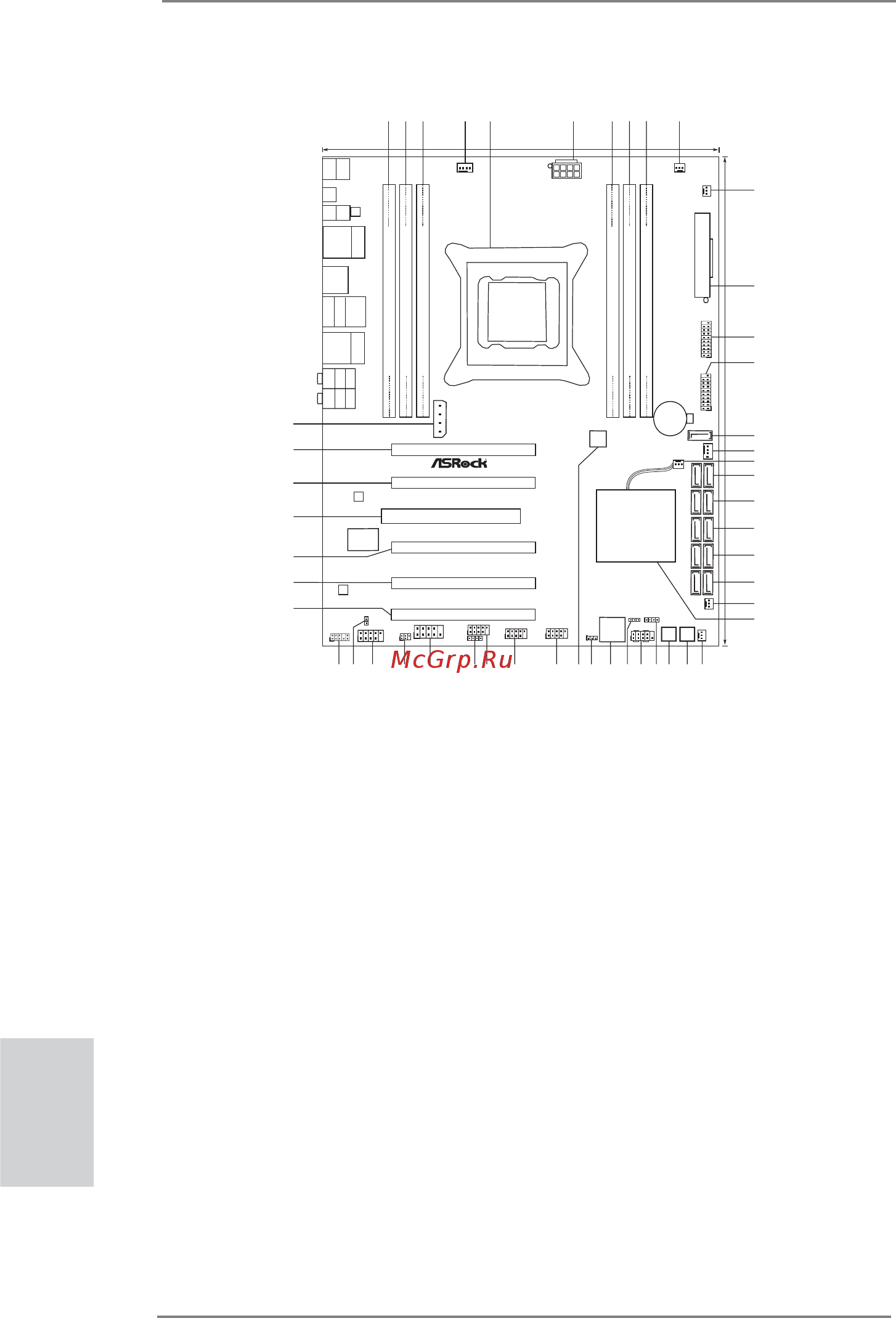

Motherboard Layout
1 240-pin DDR3 DIMM Slot (DDR3_A1, Black) 28 Chassis Speaker Header (SPEAKER1, Black)
2 240-pin DDR3 DIMM Slot (DDR3_B2, Black) 29 System Panel Header (PANEL1, Black)
3 240-pin DDR3 DIMM Slot (DDR3_B1, Black) 30 Power LED Header (PLED1)
4 CPU Fan Connector (CPU_FAN1) 31 Dr. Debug
5 2011-Pin CPU Socket 32 Clear CMOS Jumper (CLRCMOS1)
6 ATX 12V Power Connector (ATX12V1) 33 SPI Flash Memory (64Mb)
7 240-pin DDR3 DIMM Slot (DDR3_D1, Black) 34 USB 2.0 Header (USB_10_11, Black)
8 240-pin DDR3 DIMM Slot (DDR3_D2, Black) 35 USB 2.0 Header (USB_8_9, Black)
9 240-pin DDR3 DIMM Slot (DDR3_C1, Black) 36 USB 2.0 Header (USB_6_7, Black)
10 CPU Fan Connector (CPU_FAN2) 37 Consumer Infrared Module Header
11 Power Fan Connector (PWR_FAN1) (CIR1, Gray)
12 ATX Power Connector (ATXPWR1) 38 COM Port Header (COM1)
13 USB 3.0 Header (USB3_4_5, Black) 39 Infrared Module Header (IR1)
14 USB 3.0 Header (USB3_2_3, Black) 40 Front Panel IEEE 1394 Header
15 SATA3 Connector (SATA3_M4, Gray) (FRONT_1394, Black)
16 Chassis Fan Connector (CHA_FAN1) 41 HDMI_SPDIF Header
17 SB Fan Connector (SB_FAN1) (HDMI_SPDIF1, Black)
18 SATA2 Connectors (SATA2_2_3, Black) 42 Front Panel Audio Header
19 SATA2 Connectors (SATA2_0_1, Black) (HD_AUDIO1, Black)
20 SATA3 Connectors (SATA3_0_1, Gray) 43 PCI Express 3.0 x16 Slot (PCIE5, Black)
21 SATA3 Connectors (SATA3_M2_M3, Gray) 44 PCI Express 3.0 x16 Slot (PCIE4, Black)
22 SATA3 Connectors (SATA3_M0_M1, Gray) 45 PCI Express 3.0 x16 Slot (PCIE3, Black)
23 Chassis Fan Connector (CHA_FAN3) 46 PCI Slot (PCI1, Black)
24 Intel X79 Chipset 47 PCI Express 3.0 x16 Slot (PCIE2, Black)
25 Chassis Fan Connector (CHA_FAN2) 48 PCI Express 3.0 x16 Slot (PCIE1, Black)
26 Reset Switch (RSTBTN) 49 SLI / XFIRE Power Connector
27 Power Switch (PWRBTN)
DDR3_A1 (64bit, 240-pin module)
DDR3_B2 (64bit, 240-pin module)
ATX12V1
PS2
Mouse
PS2
Keyboard
Clr
CMOS
Coaxial
SPDIF
Optical
SPDIF
USB 2.0
T: U SB 2
B: USB3
Top:
RJ-45
USB 3.0
T: U SB 0
B: USB1
USB 2.0
T: U SB 4
B: USB5
eSATA3
IEEE 1394
Top:
SIDE SPK
Center:
REAR SPK
Bottom:
CTR BASS
Top:
LINE IN
Center:
FRONT
Bottom:
MIC IN
SLI/XFIRE_PWR1
ATXPWR1
PWR_FAN1
CPU_FAN1
CPU_FAN2
CHA_FAN1
1
USB3_2_3
CHA_FAN3
Intel
X79
PCIE1
PCI1
Super
I/O
LAN
PHY
AUDIO
CODEC
CMOS
Battery
SATA3_M0_M1
64Mb
BIOS
24.4cm (9.6 in)
30.5cm (12.0 in)
Dr.
Debug
PWRBTN1
RSTBTN1
HDLED RESET
PLED PWRBTN
PANEL 1
1
1
SPEAKER1
PLED1
1
SB_FAN1
CLRCMOS1
1
CHA_FAN2
FRONT_1394
1
IR1
1
COM1
1
1
HD_AUDIO1
1
HDMI_SPDIF1
USB_6_7
1
CIR1
1
USB_8_9
1
USB_10_11
1
Designed inTaipei
4 Channels DDR3
SATA3 6Gb/s
Front USB 3.0
ErP/EuP Ready
1394a
USB 3.0
3-Way SLI
RoHS
X79 Extreme7
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
3334
35
36
37
38
39
40
41
42
43
44
X
Fast USB
2 oz Copper PCB
PCIE2
PCIE3
PCIE4
PCIE5
X
Fast LAN
LAN
PHY
DDR3_B1 (64bit, 240-pin module)
DDR3_D1 (64bit, 240-pin module)
DDR3_D2 (64bit, 240-pin module)
DDR3_C1 (64bit, 240-pin module)
SATA3_M2_M3
SATA3_0_1
SATA2_0_1
SATA2_2_3
SATA3_M4
DDR3 2400+
Top:
RJ-45
USB 2.0
T: U SB 0
B: USB1
1
USB3_4_5
45
46
47
48
PCI Express 3.0 Ready
49
