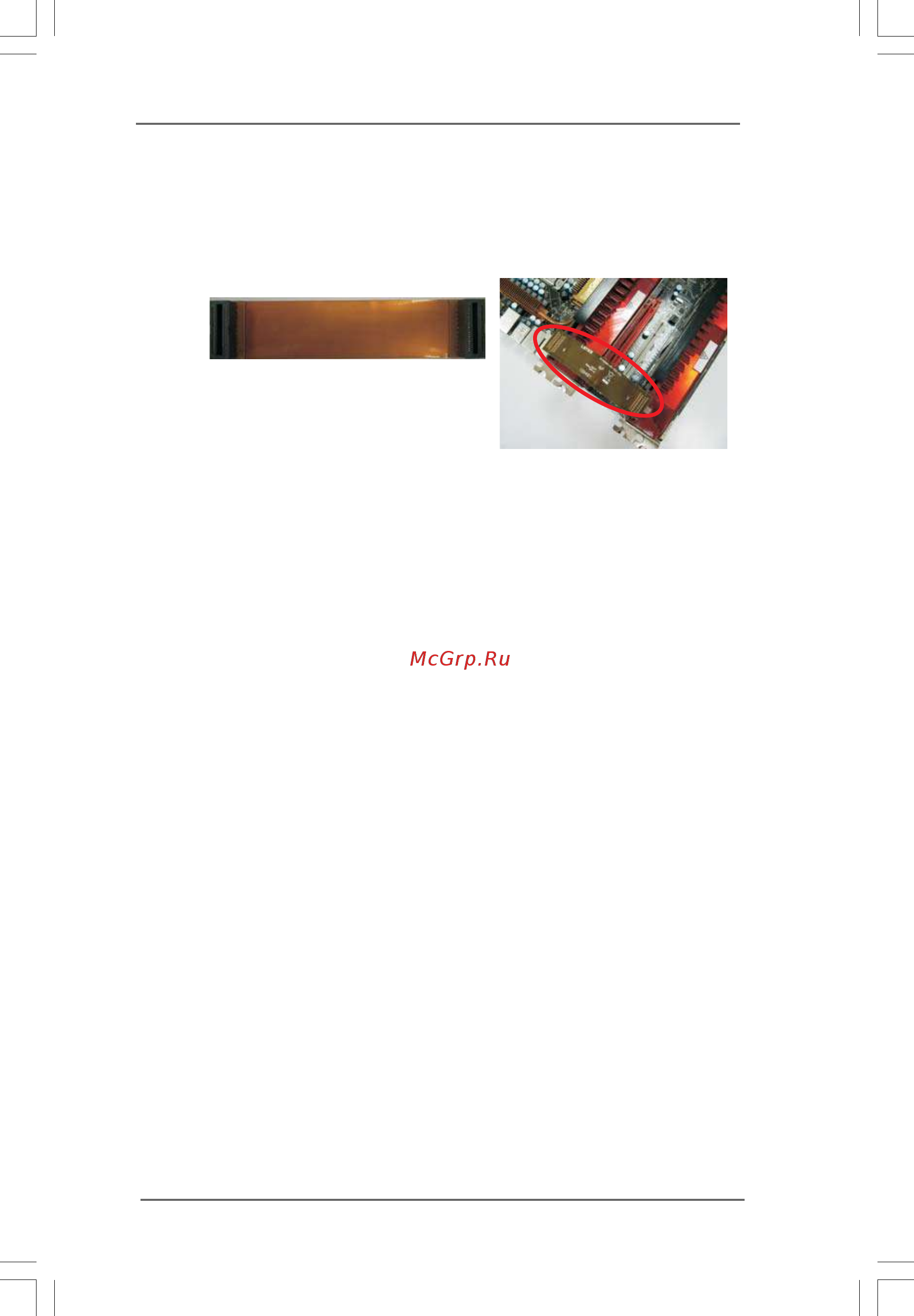

Step 2. Connect two Radeon graphics cards by installing ASRock XFire_Bridge_3S
Card on ASRock XFire_Bridge_3S Card Interconnects on the top of Radeon
graphics cards. (If there are two gold fingers on each Radeon graphics card,
please use two ASRock XFire_Bridge_3S Cards to connect two Radeon graphics
cards.)
ASRock XFire_Bridge_3S Card
Step 3. Connect the DVI monitor cable to the DVI connector on the Radeon graphics
card on PCIE1 slot. (You may use the DVI to D-Sub adapter to convert the DVI
connector to D-Sub interface, and then connect the D-Sub monitor cable to the
DVI to D-Sub adapter.)
