![ASRock X58 SuperComputer [35/74] 35 35 35 35](/img/pdf.png)
ASRock X58 SuperComputer [35/74] 35 35 35 35
![ASRock X58 SuperComputer [35/74] 35 35 35 35](/views2/1686723/page35/bg23.png)
3535
3535
35
J_SENSE
OUT2_L
1
MIC_RET
PRESENCE#
GND
OUT2_R
MIC2_R
MIC2_L
OUT_RET

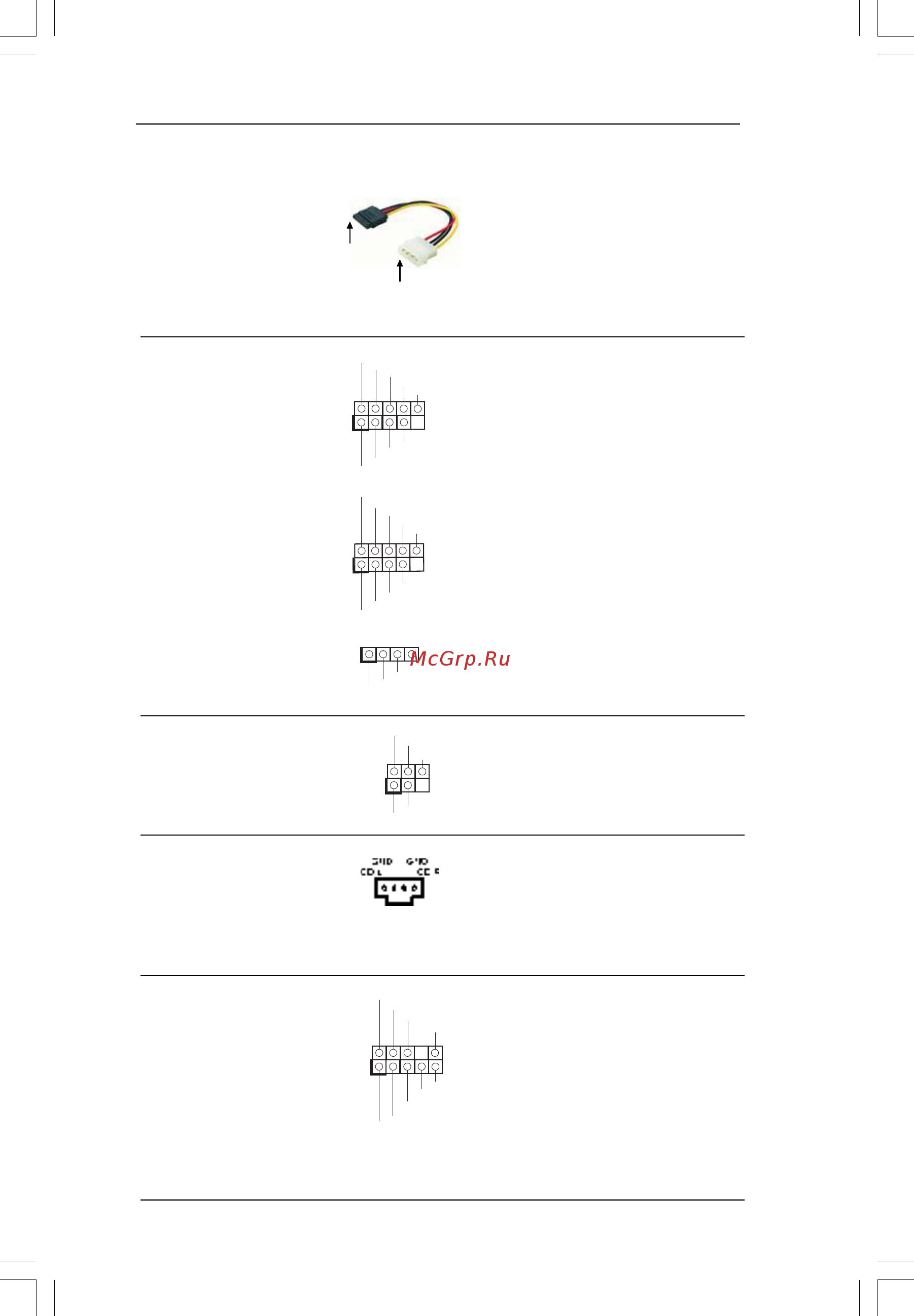

Front Panel Audio Header This is an interface for front
(9-pin HD_AUDIO1) panel audio cable that allows
(see p.12 No. 34) convenient connection and
control of audio devices.
connect to the SATA HDD
power connector
connect to the
power supply
USB_P WR
USB_P WR
P +7
P-7
P +6
P-6
GND
GND
DUMMY
1
1
USB _PWR
P-8
GND
DUMMY
USB _PWR
P+8
GND
P-9
P+9
USB 2.0 Headers Besides seven default USB 2.0
(9-pin USB8_9) ports on the I/O panel, there are
(see p.12 No. 8) three USB 2.0 headers on this
motherboard. USB8_9 and
USB6_7 headers can support four
USB 2.0 ports (two ports for each
(9-pin USB6_7) header). USB10 header can
(see p.12 No. 9) support one USB 2.0 port.
(4-pin USB10)
(see p.12 No. 19)
Serial ATA (SATA) Please connect the black end of
Power Cable SATA power cable to the power
(Optional) connector on each drive. Then
connect the white end of SATA
power cable to the power
connector of the power supply.
1
USB_PWR
P-10
P+10
GND
Infrared Module Header This header supports an optional
(5-pin IR1) wireless transmitting and
(see p.12 No. 25) receiving infrared module.
Internal Audio Connectors This connector allows you
(4-pin CD1) to receive stereo audio input
(CD1: see p.12 No. 31) from sound sources such as
a CD-ROM, DVD-ROM, TV
tuner card, or MPEG card.
CD1
1
IRRX
+5VSB
DUMMY
IRTX
GND
