ASRock X58 SuperComputer [38/74] 38 38 38 38

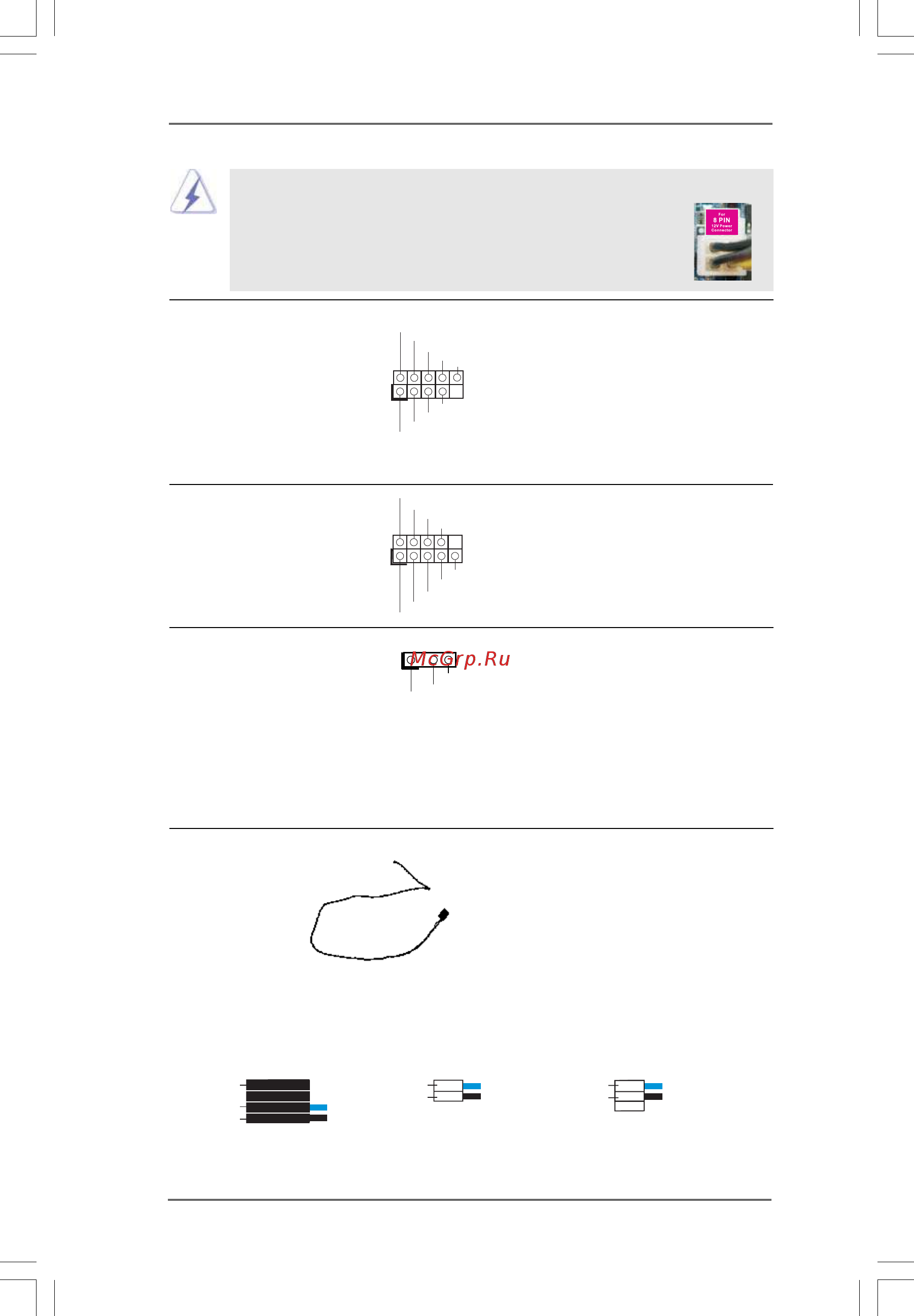

![ASRock X58 SuperComputer [38/74] 38 38 38 38](/views2/1686723/page38/bg26.png)
3838
3838
38
1
GND
+5V
SPDIFOUT
HDMI_SPDIF Header HDMI_SPDIF header, providing
(3-pin HDMI_SPDIF1) SPDIF audio output to HDMI VGA
(see p.12 No. 28) card, allows the system to
connect HDMI Digital TV/
projector/LCD devices. Please
connect the HDMI_SPDIF
connector of HDMI VGA card to
this header.
HDMI_SPDIF Cable Please connect the black end (A)
(Optional) of HDMI_SPDIF cable to the
HDMI_SPDIF header on the
motherboard. Then connect the
white end (B or C) of
HDMI_SPDIF cable to the
HDMI_SPDIF connector of HDMI
VGA card.
A. black end B. white end (2-pin) C. white end (3-pin)
C
B
GND
+5V
SPDIFOUT
blue
black
blue
black
GND
SPDIFOUT
blue
black
GND
SPDIFOUT
A
IEEE 1394 Header Besides one default IEEE 1394
(9-pin FRONT_1394) port on the I/O panel, there is one
(see p.12 No. 7) IEEE 1394 header
(FRONT_1394) on this
motherboard. This IEEE 1394
header can support one IEEE
1394 port.
+12V
GND
+12V
1
RXTPB M_0
GND
RXTPAM_0
RXTPB P_0
GND
RXTPAP_0
4-Pin ATX 12V Power Supply Installation
Though this motherboard provides 8-pin ATX 12V power
connector, it can still work if you adopt a traditional 4-pin ATX
12V power supply. To use the 4-pin ATX power supply, please
plug your power supply along with Pin 1 and Pin 5.
Serial port Header This COM1 header supports a
(9-pin COM1) serial port module.
(see p.12 No.26)
CCTS#1
DDSR#1
DDTR#1
RRX D 1
DDCD#1
TTXD1
GND
RRTS#1
RRI#1
1
4
1
8
5
