2

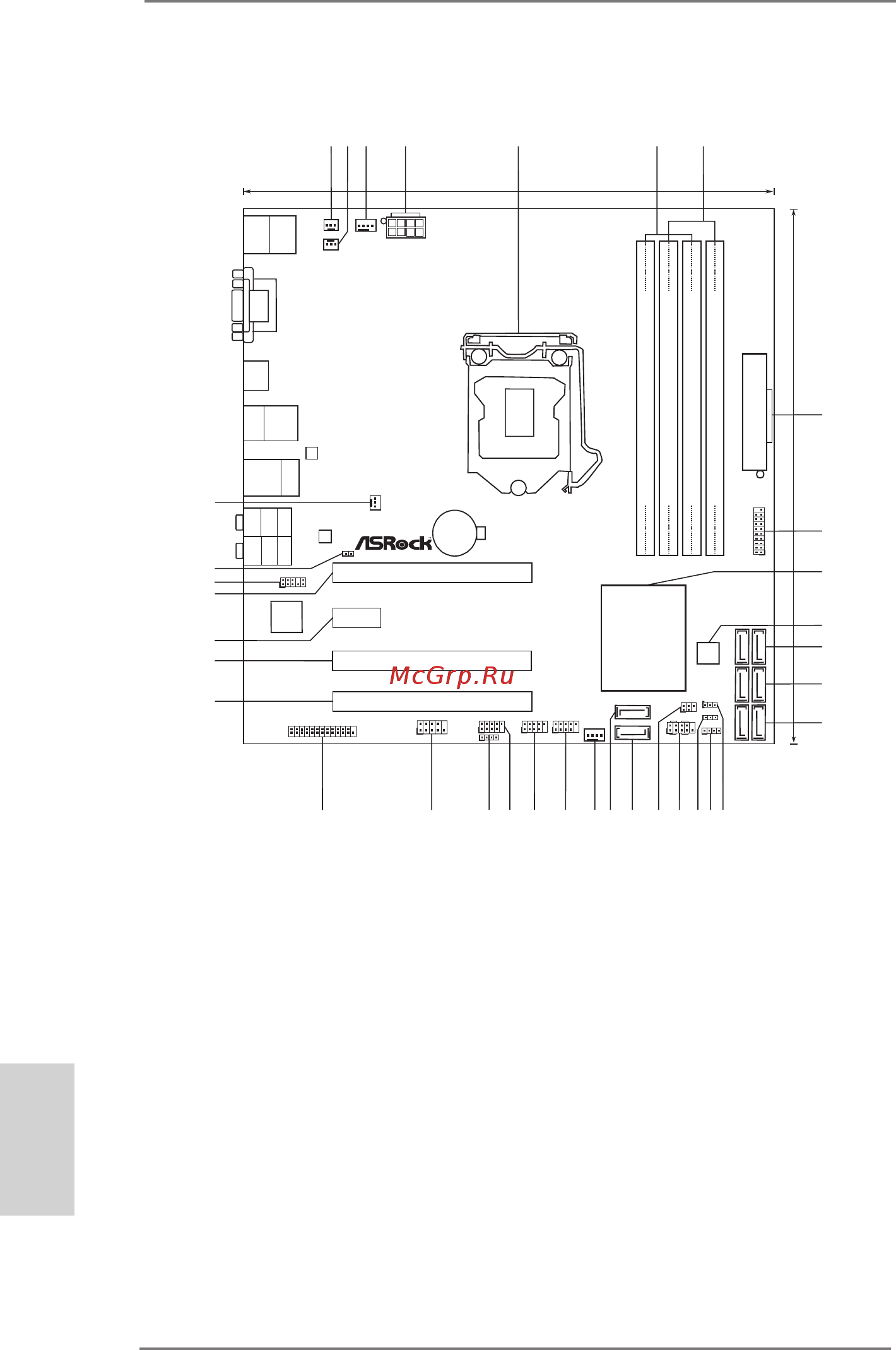

ASRock H77 Pro4-M Motherboard
1 CPU Fan Connector (CPU_FAN2)
2 Power Fan Connector (PWR_FAN1)
3 CPU Fan Connector (CPU_FAN1)
4 ATX 12V Power Connector (ATX12V1)
5 1155-Pin CPU Socket
6 2 x 240-pin DDR3 DIMM Slots
(DDR3_A1, DDR3_B1, Black)
7 2 x 240-pin DDR3 DIMM Slots
(DDR3_A2, DDR3_B2, Black)
8 ATX Power Connector (ATXPWR1)
9 USB 3.0 Header (USB3_12_13, Black)
10 Intel H77 Chipset
11 SPI Flash Memory (64Mb)
12 SATA3 Connectors (SATA3_A0_A1, Gray)
13 SATA3 Connectors (SATA3_0_1, Gray)
14 SATA2 Connectors (SATA2_2_3, Black)
15 Clear CMOS Jumper (CLRCMOS1)
16 Chassis Speaker Header (SPEAKER1, Black)
17 Power LED Header (PLED1)
18 System Panel Header (PANEL1, Black)
19 Infrared Module Header (IR1)
20 SATA2 Connector (SATA2_5, Black)
21 SATA2 Connector (SATA2_4, Black)
22 Chassis Fan Connector (CHA_FAN1)
23 USB 2.0 Header (USB_10_11, Black)
24 USB 2.0 Header (USB_8_9, Black)
25 USB 2.0 Header (USB_6_7, Black)
26 Consumer Infrared Module Header
(CIR1, Gray)
27 COM Port Header (COM1)
28 Print Port Header (LPT1)
29 PCI Express 2.0 x16 Slot (PCIE4, Black)
30 PCI Express 2.0 x16 Slot (PCIE3, Black)
31 PCI Express 2.0 x1 Slot (PCIE2, Black)
32 PCI Express 3.0 x16 Slot (PCIE1, Black)
33 Front Panel Audio Header
(HD_AUDIO1, Black)
34 HDMI_SPDIF Header
(HDMI_SPDIF1, Black)
35 Chassis Fan Connector (CHA_FAN2)
Intel
H77
CHA_ FAN2
64Mb
BIOS
DDR3_ A2 (64 bit, 2 40-pin m odule)
DDR3_ A1 (64 bit, 2 40-pin m odule)
DDR3_ B2 (64 bit, 2 40-pin m odule)
DDR3_ B1 (64 bit, 2 40-pin m odule)
ATX12 V1
CPU _FAN1
CMOS
Batte ry
Super
I/O
USB 2.0
T: US B0
B: USB1
PS2
Keyboa rd
ATXPWR1
1
USB 3_12_1 3
CPU_ FAN2
AUDI O
CODE C
LAN
PHY
PCIE2
PCIE1
VGA1
DVI1
eSATA
USB 2.0
T: US B2
B: USB3
HDMI
Top:
RJ- 45
USB 3.0
T: US B4
B: USB5
Top:
Cen tral/B ass
Cen ter:
REA R S PK
Top:
LIN E I N
Cen ter:
FRO NT
Bot tom:
Opt ical
SPD IF
Bot tom:
MIC IN
24.4cm (9.6 in)
24.4cm (9.6 in)
Front USB 3. 0
PCIE3
CLRC MOS1
1
PLED1
1
1
SPEAK ER1
IR1
1
HDLED RES ET
PLED PWRBTN
PANEL1
1
SATA2_ 5
SATA2_ 4
USB_ 6_7
1
CIR1
1
USB_ 8_9
1
1
USB_ 10_11
1
HDM I_SPDI F1
COM1
1
1
HD_A UDIO1
PWR _FAN1
DDR3
PCI Express 3.0
H77 Pro4-M
ErP/EuP R eady
RoHS
X
Fast RAM
XFa s t LAN
XFa s t USB
Designed in Taipei
LPT1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
18
19
15
16
17
20
21
2223
24
25
26
27
28
29
30
31
32
33
SATA3_ A0_A1
SATA3_ 0_1
SATA2_ 2_3
PCIE4
34
CHA _FAN1
35
English
Motherboard Layout
