Motherboard LayoutMotherboard Layout

Motherboard Layout

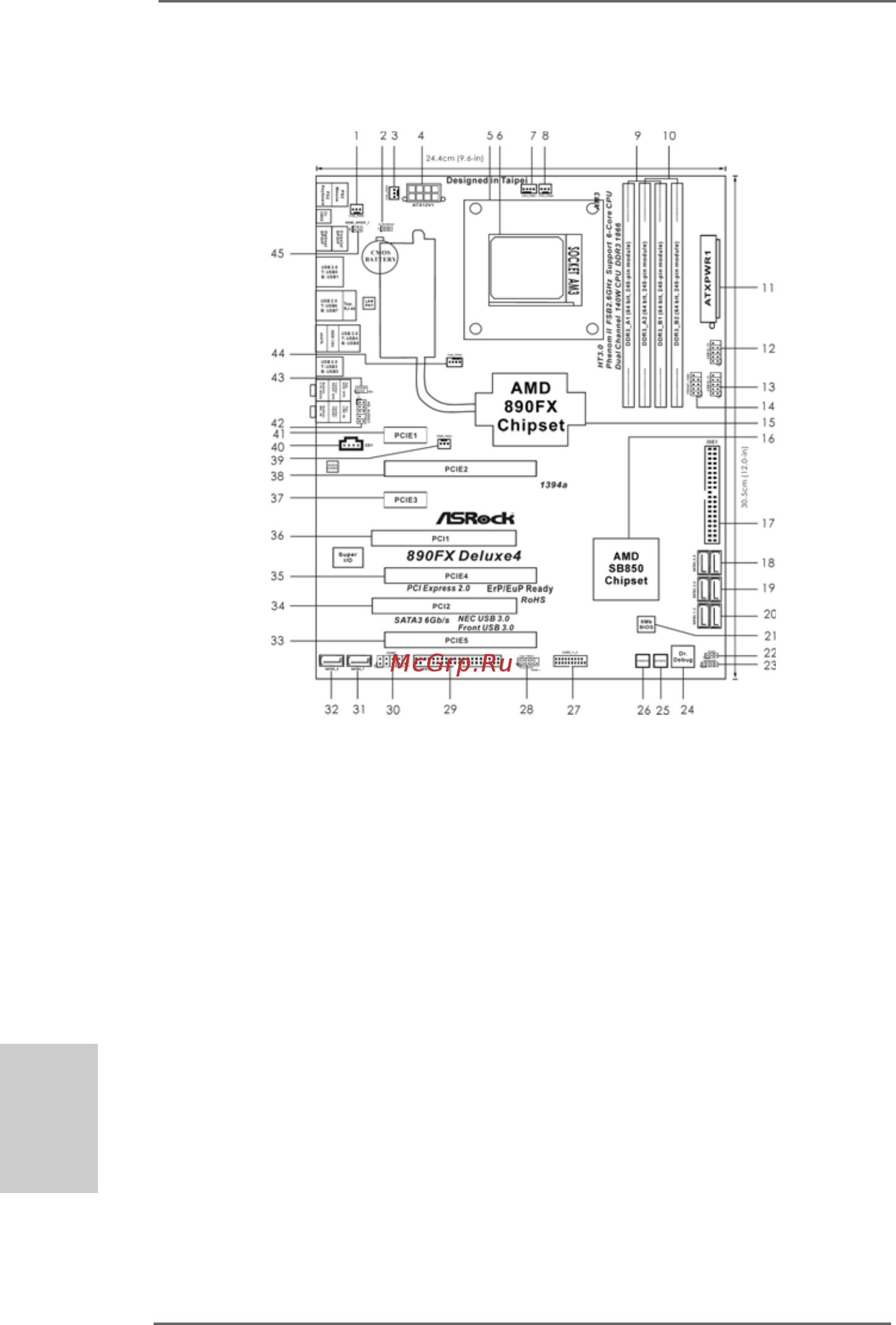

1 Chassis Fan Connector (CHA_FAN3) 23 Chassis Speaker Header

2 Clear CMOS Jumper (CLRCMOS1) (SPEAKER 1, White)

3 Chassis Fan Connector (CHA_FAN2) 24 Dr. Debug (LED)

4 ATX 12V Power Connector (ATX12V1) 25 Reset Switch (RSTBTN)

5 CPU Heatsink Retention Module 26 Power Switch (PWRBTN)

6 AM3 CPU Socket 27 USB 3.0 Header (USB3_1_2, Light Blue)

7 CPU Fan Connector (CPU_FAN1) 28 System Panel Header (PANEL1, White)

8 CPU Fan Connector (CPU_FAN2) 29 Floppy Connector (FLOPPY1)

9 2 x 240-pin DDR3 DIMM Slots 30 Serial Port Connector (COM1)

(Dual Channel A: DDR3_A1, DDR3_B1; Blue) 31 SATA3 Connector (SATA3_7, White)

10 2 x 240-pin DDR3 DIMM Slots 32 SATA3 Connector (SATA3_8, White)

(Dual Channel B: DDR3_A2, DDR3_B2; White) 33 PCI Express 2.0 x16 Slot (PCIE5; Blue)

11 ATX Power Connector (ATXPWR1) 34 PCI Slot (PCI2)

12 USB 2.0 Header (USB12_13, Blue) 35 PCI Express 2.0 x16 Slot (PCIE4; Blue)

13 USB 2.0 Header (USB10_11, Blue) 36 PCI Slot (PCI1)

14 Front Panel IEEE 1394 Header 37 PCI Express 2.0 x1 Slot (PCIE3; White)

(FRONT_1394, White) 38 PCI Express 2.0 x16 Slot (PCIE2; Blue)

15 Northbridge Controller 39 Power Fan Connector (PWR_FAN1)

16 Southbridge Controller 40 Internal Audio Connector: CD1 (White)

17 Primary IDE Connector (IDE1, Blue) 41 PCI Express 2.0 x1 Slot (PCIE1; White)

18 SATA3 Connector (SATA3_5_6, White) 42 Front Panel Audio Header

19 SATA3 Connector (SATA3_3_4, White) (HD_AUDIO1, White)

20 SATA3 Connector (SATA3_1_2, White) 43 Infrared Module Header (IR1)

21 SPI Flash Memory (8Mb) 44 Chassis Fan Connector (CHA_FAN1)

22 Power LED Header (PLED1) 45 HDMI_SPDIF Header (HDMI_SPDIF1, White)
