ASRock 890FX Deluxe4 Motherboard

connect to the

power supply

connect to the SATA

HDD power connector

EnglishEnglish

English

CD1

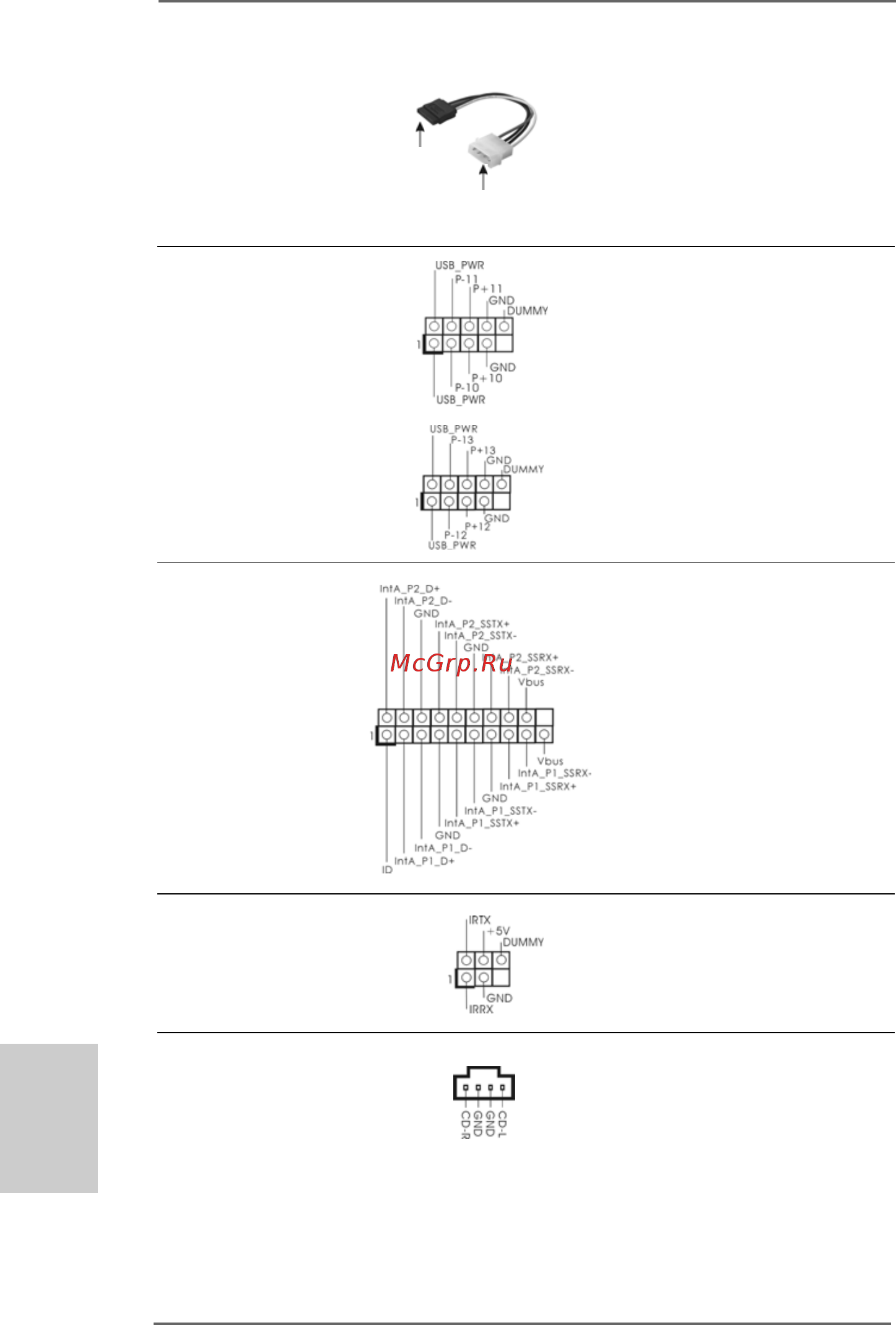

USB 2.0 Headers Besides six default USB 2.0

(9-pin USB10_11) ports on the I/O panel, there are

(see p.2 No. 13) two USB 2.0 headers on this

motherboard. Each USB 2.0

header can support two USB

2.0 ports.

(9-pin USB12_13)

(see p.2 No. 12)

Infrared Module Header This header supports an

(5-pin IR1) optional wireless transmitting

(see p.2 No. 43) and receiving infrared module.

Serial ATA (SATA) Please connect the black end of

Power Cable SATA power cable to the power

(Optional) connector on each drive. Then

connect the white end of SATA

power cable to the power

connector of the power supply.

Internal Audio Connectors This connector allows you

(4-pin CD1) to receive stereo audio input

(CD1: see p.2 No. 40) from sound sources such as

a CD-ROM, DVD-ROM, TV

tuner card, or MPEG card.

USB 3.0 Header Besides two default USB 3.0

(19-pin USB3_1_2) ports on the I/O panel, there is

(see p.2 No. 27) one USB 3.0 header on this

motherboard. This USB 3.0

header can support two USB

3.0 ports.
