ASRock 890FX Deluxe4 Motherboard

EnglishEnglish

English

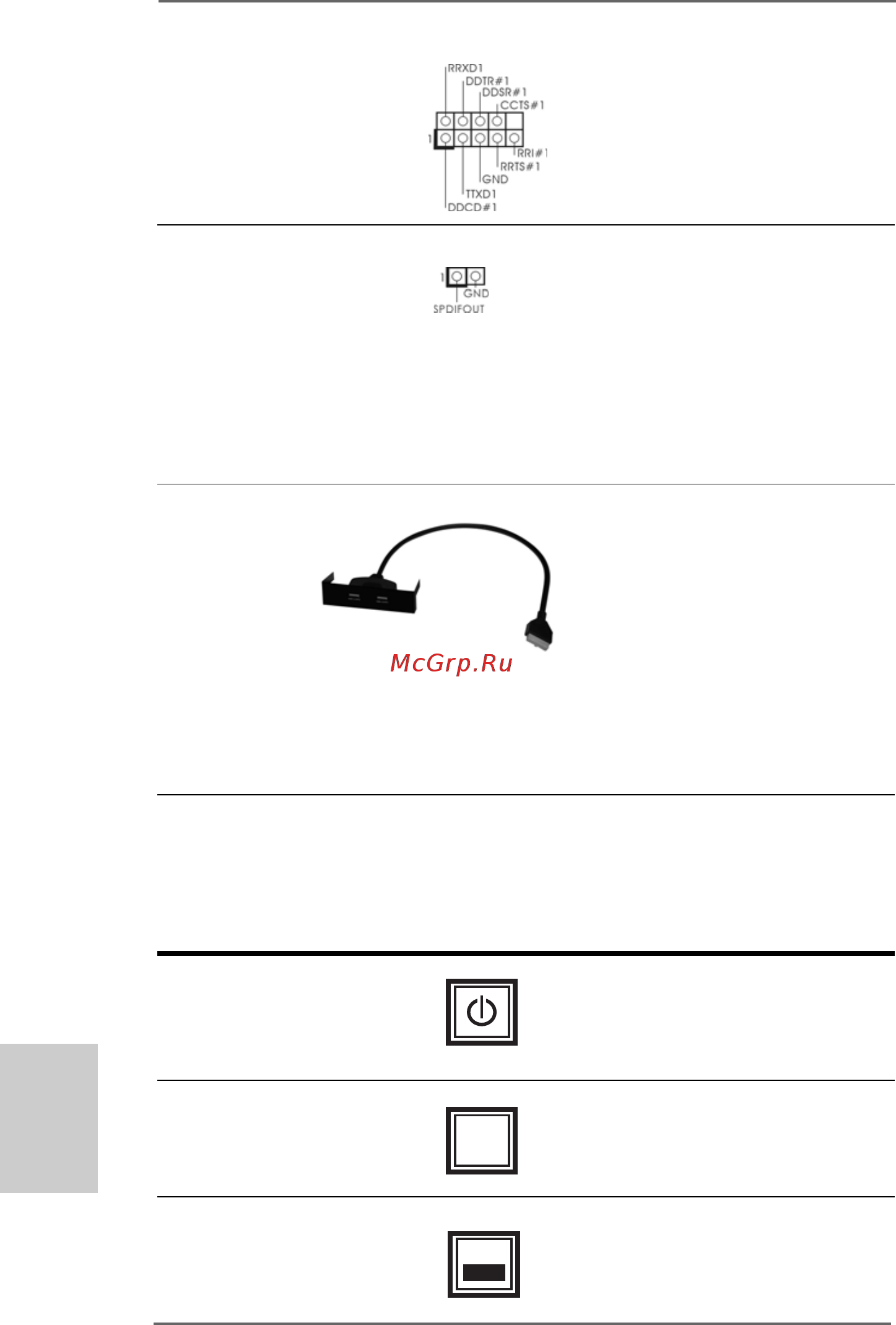

HDMI_SPDIF Header HDMI_SPDIF header, providing

(2-pin HDMI_SPDIF1) SPDIF audio output to HDMI VGA

(see p.2 No. 45) card, allows the system to

connect HDMI Digital TV/

projector/LCD devices. Please

connect the HDMI_SPDIF

connector of HDMI VGA card to

this header.

Front USB 3.0 Panel This front USB 3.0 panel can

support 2 additional USB 3.0

ports besides the I/O panel.

Please connect the light blue

connector on the cable of this

front USB 3.0 panel to the USB

3.0 header (USB3_1_2) and

fasten the front USB 3.0 panel to

the chassis with the bundled

six screws.

Serial port Header This COM1 header supports a

(9-pin COM1) serial port module.

(see p.2 No.30)

2.9 Smart Switches2.9 Smart Switches

2.9 Smart Switches

This motherboard has three smart switches: power switch, reset switch and

clear CMOS switch, allowing users to quickly turn on/off or reset the system or

clear the CMOS values.

Power Switch Power Switch is a smart switch,

(PWRBTN) allowing users to quickly turn

(see p.2 No. 26) on/off the system.

Reset Switch Reset Switch is a smart switch,

(RSTBTN) allowing users to quickly reset

(see p.2 No. 25) the system.

RESET

Clear CMOS Switch Clear CMOS Switch is a smart

(CLRCBTN) switch, allowing users to quickly

(see p.3 No. 17) clear the CMOS values

clr

CMOS
