ASRock 890FX Deluxe4 Motherboard

EnglishEnglish

English

the red-striped side to Pin1

connect the black end

to the IDE devices

80-conductor ATA 66/100/133 cable

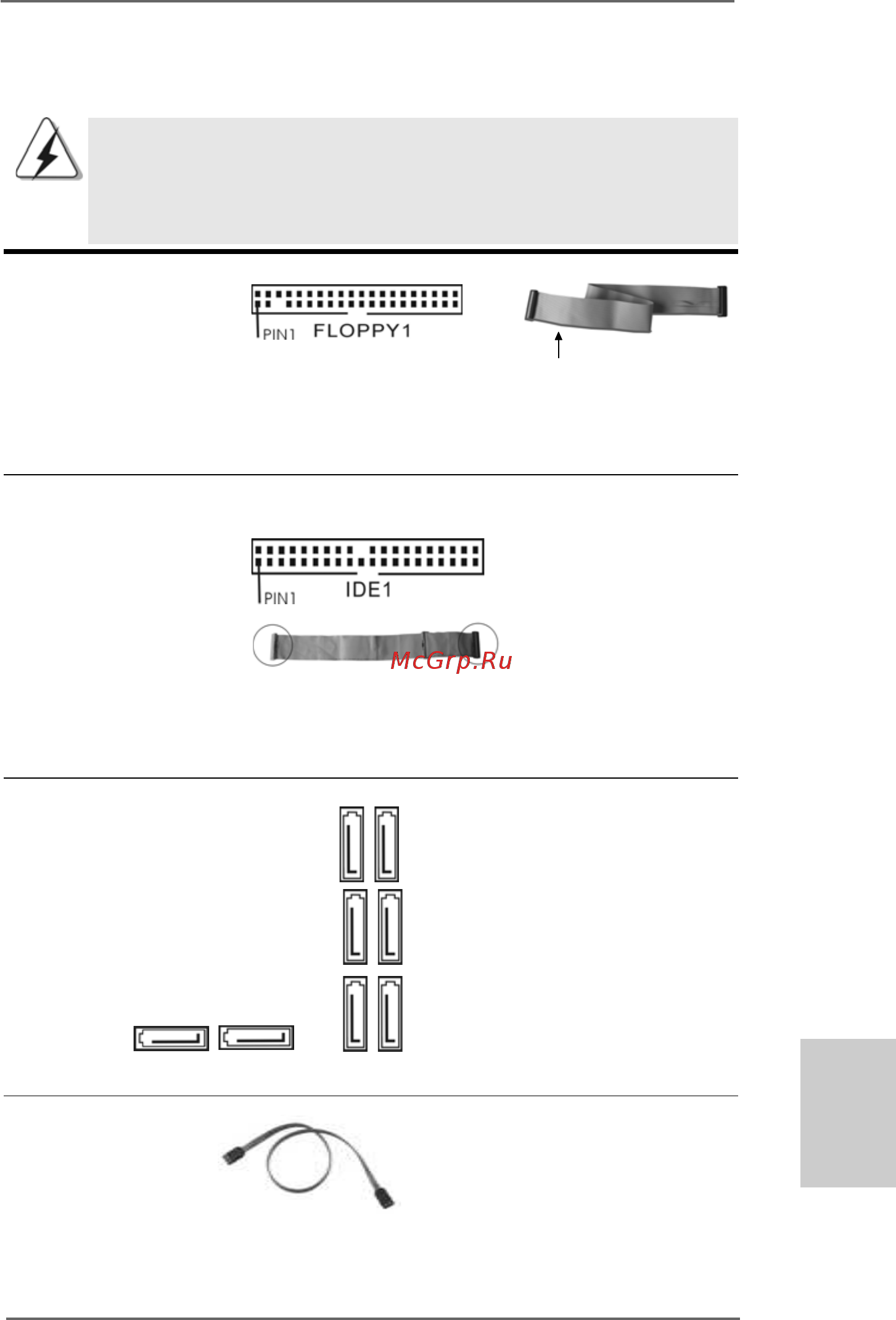

2.8 Onboard Headers and Connectors2.8 Onboard Headers and Connectors

2.8 Onboard Headers and Connectors

Onboard headers and connectors are NOT jumpers. Do NOT place

jumper caps over these headers and connectors. Placing jumper caps

over the headers and connectors will cause permanent damage of the

motherboard!

FDD connector

(33-pin FLOPPY1)

(see p.2 No. 29)

Note: Make sure the red-striped side of the cable is plugged into Pin1 side of the

connector.

Primary IDE connector (Blue)

(39-pin IDE1, see p.2 No. 17)

Note: Please refer to the instruction of your IDE device vendor for the details.

connect the blue end

to the motherboard

Serial ATA (SATA) Either end of the SATA data cable

Data Cable can be connected to the SATA3

(Optional) hard disk or the SATA3

connector on this motherboard.

SATA3_1_2 SATA3_3_4 SATA3_5_6

Serial ATA3 Connectors These eight Serial ATA3

(SATA3_1_2: see p.2, No. 20) (SATA3) connectors support

(SATA3_3_4: see p.2, No. 19) SATA data cables for internal

(SATA3_5_6: see p.2, No. 18) storage devices. The current

(SATA3_7: see p.2, No. 31) SATA3 interface allows up to

(SATA3_8: see p.2, No. 32) 6.0 Gb/s data transfer rate. If

you install the HDD on the

eSATA port on the rear I/O,

the internal SATA3_8 will not

function.

SATA3_8 SATA3_7
