ASRock k8A780LM Motherboard

CD1

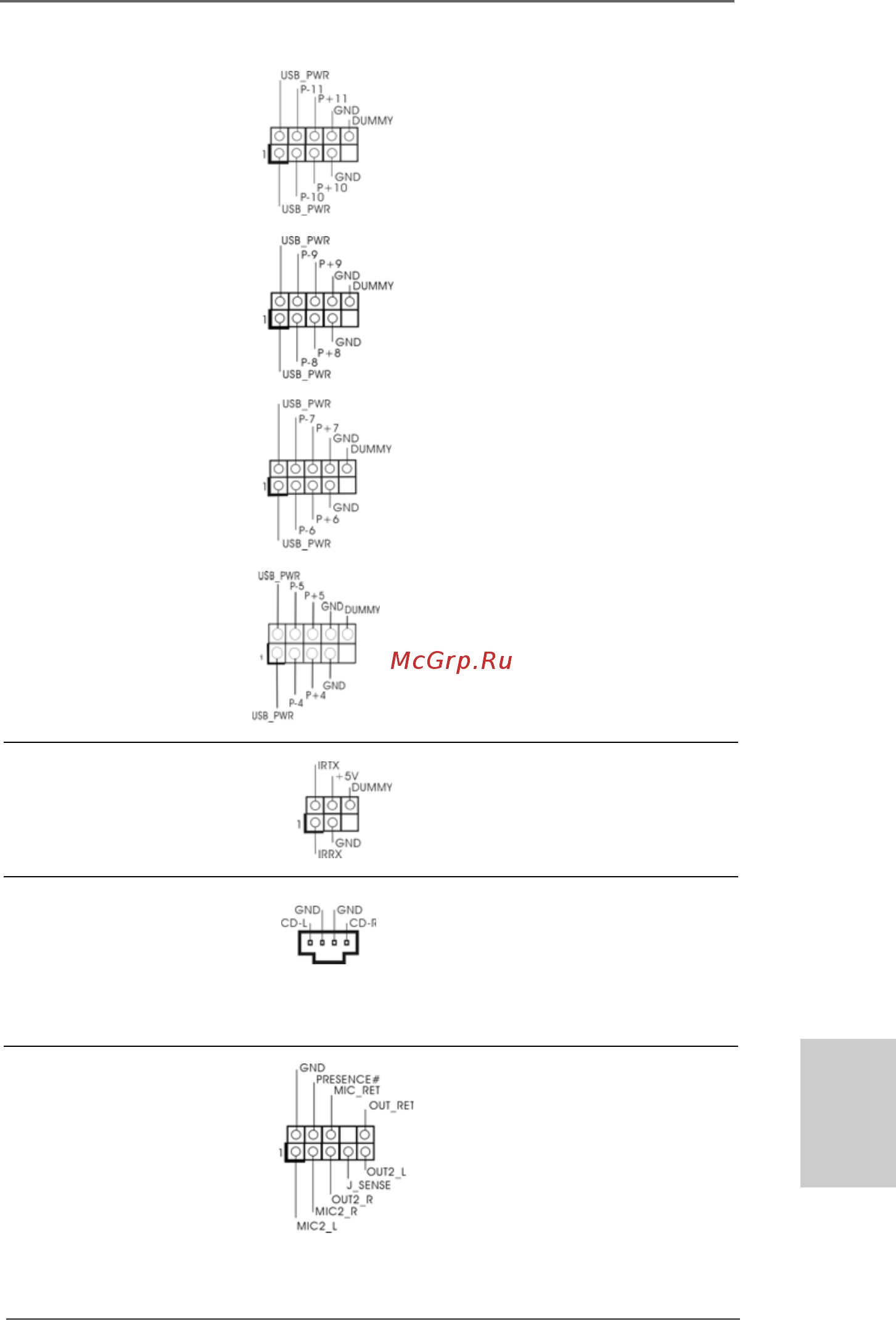

Internal Audio Connectors This connector allows you

(4-pin CD1) to receive stereo audio input

(CD1: see p.2 No. 26) from sound sources such as

a CD-ROM, DVD-ROM, TV

tuner card, or MPEG card.

Infrared Module Header This header supports an

(5-pin IR1) optional wireless transmitting

(see p.2 No. 23) and receiving infrared module.

EnglishEnglish

English

USB 2.0 Headers Besides four default USB 2.0

(9-pin USB10_11) ports on the I/O panel, there are

(see p.2 No. 22) four USB 2.0 headers on this

motherboard. Each USB 2.0

header can support two USB

2.0 ports.

(9-pin USB8_9)

(see p.2 No. 21)

(9-pin USB6_7)

(see p.2 No. 20)

(9-pin USB4_5)

(see p.2 No. 19)

Front Panel Audio Header This is an interface for the front

(9-pin HD_AUDIO1) panel audio cable that allows

(see p.2, No. 25) convenient connection and

control of audio devices.
