25

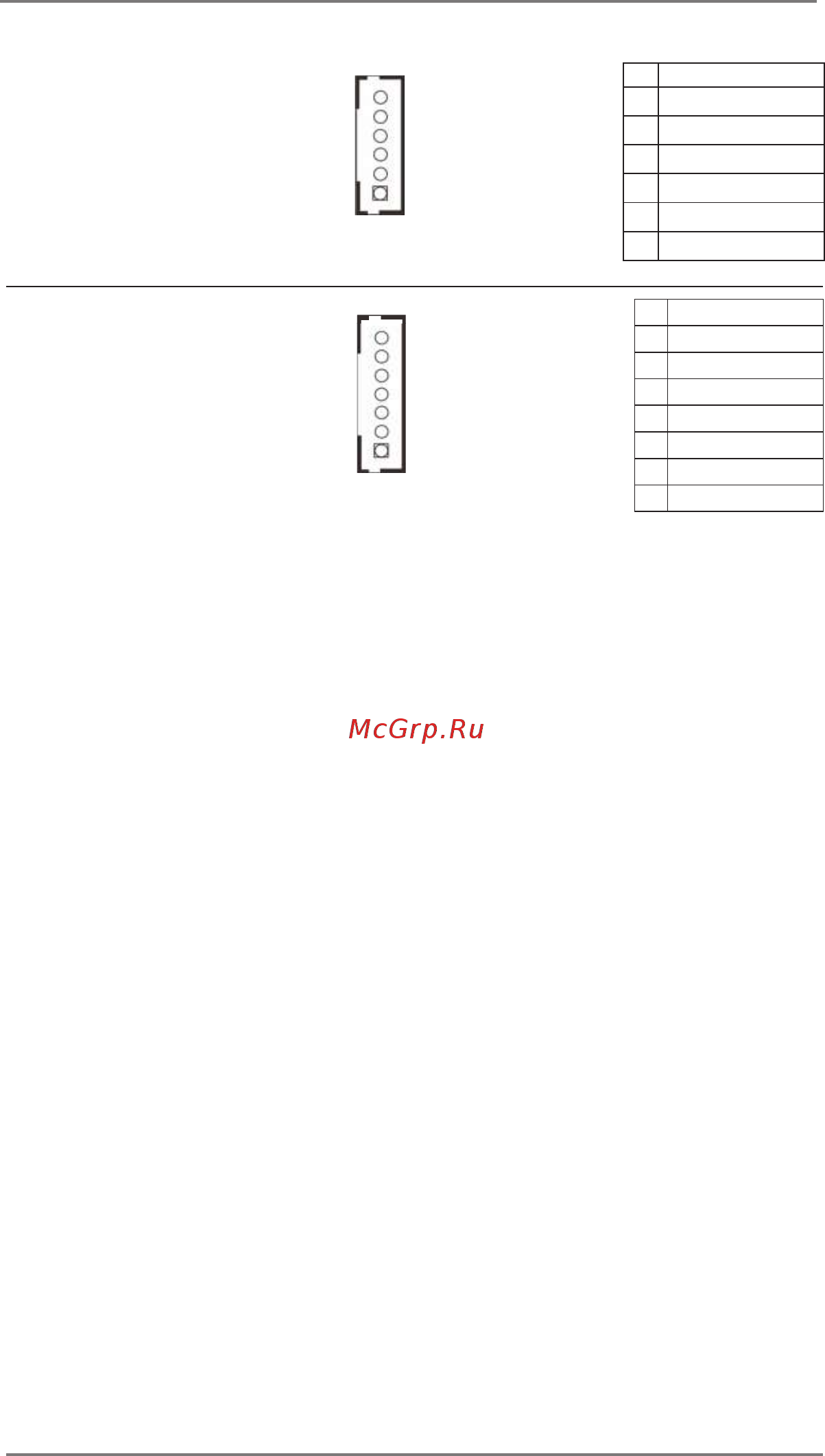

Inverter Power Control Wafer
(6-pin BLT_PWR1)
(see p.10 No. 5)
1
PIN Signal Name
6 LCD_BLT_VCC
5 LCD_BLT_VCC
4 CON_LBKLT_EN
3 CON_LBKLT_CTL
2 GND
1 GND
PIN Signal Name
7 GND
6 GND
5 BLT_DW
4 BLT_UP
3 PWRDN
2 GPIO_VOL_DW
1 GPIO_VOL_UP
1
Backlight Volume Control
(7-pin BLT_VOL1)
(see p.10 No. 9)
