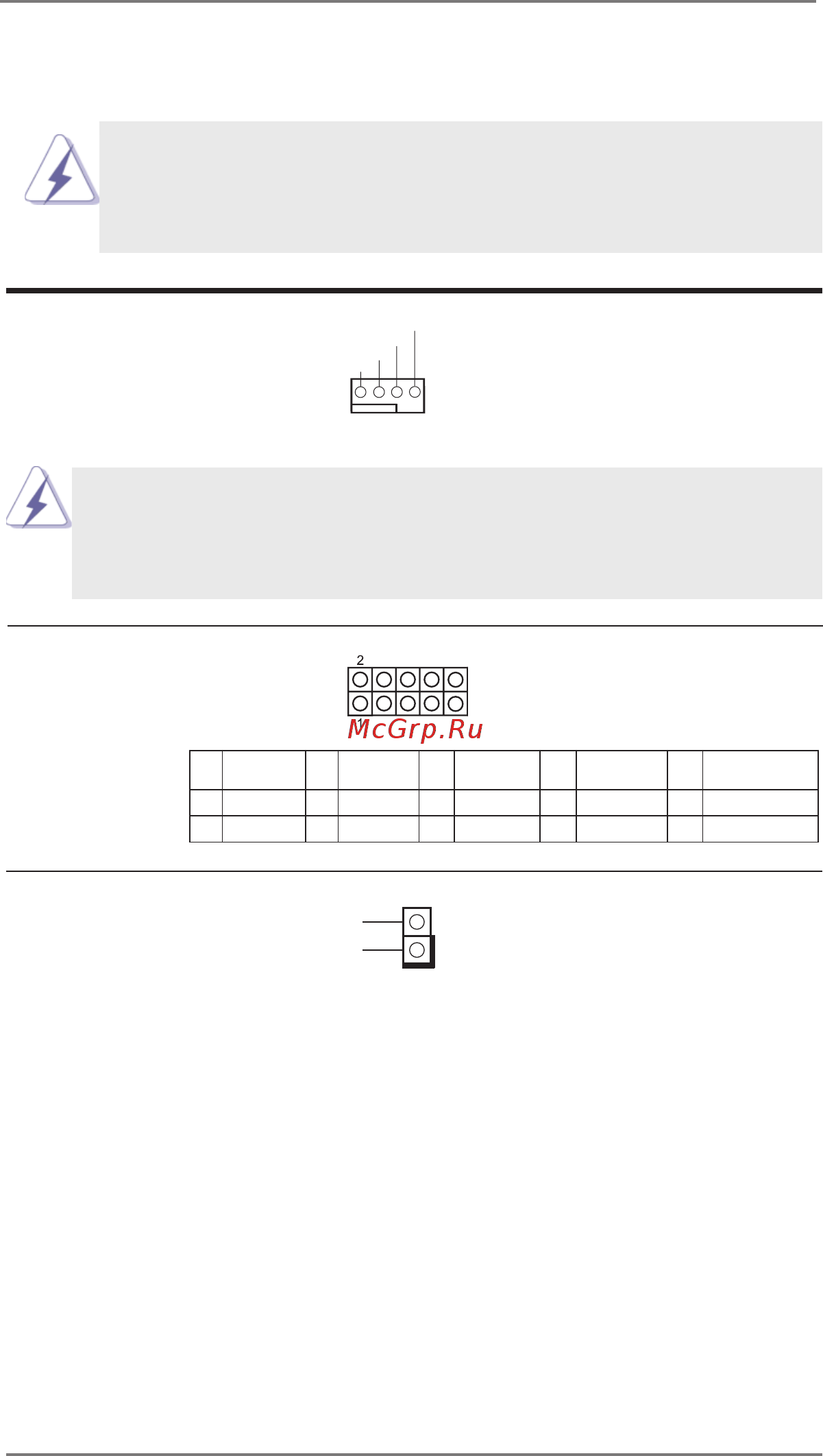

2.6 Onboard Headers and Connectors
Onboard headers and connectors are NOT jumpers. Do NOT place
jumper caps over these headers and connectors. Placing jumper caps
over the headers and connectors will cause permanent damage of the
motherboard!
CPU Fan Connectors Please connect the CPU fan
(4-pin CPU_FAN1, CPU_FAN2)
cable to the connector and
(see p.10 No. 10)
match the black wire to the
ground pin.
Though this motherboard provides 4-Pin CPU fan (Quiet Fan) support, the 3-Pin
CPU fan still can work successfully even without the fan speed control function.
If you plan to connect the 3-Pin CPU fan to the CPU fan connector on this
motherboard, please connect it to Pin 1-3.
Digital Input / Output Pin Header
(10-pin JGPIO1)
(see p.10, No. 22)
FAN_SPE E D
FAN_SPE E D_CONT ROL
GND
+12V
1 2 3 4
PIN
Signal
Name
PIN
Signal
Name
PIN
Signal
Name
PIN
Signal
Name
PIN Signal Name
2 SIO_GP20 4 SIO_GP21 6 SIO_GP22 8 SIO_GP23 10 GND
1
SIO_GP24
3
SIO_GP25
5
SIO_GP26
7
SIO_GP27
9
JGPIO_PWR
Chassis Intrusion Headers This motherboard supports
(2-pin CI1, CI2: see p.10, No. 23)
CASE OPEN detection feature
that detects if the chassis cover
has been removed. This feature
requires a chassis with chassis
intrusion detection design.
CI1 :
Close : Active Case Open
Open : Normal
CI2 :
Close : Normal
Open : Active Case Open
1
Signal
GND
