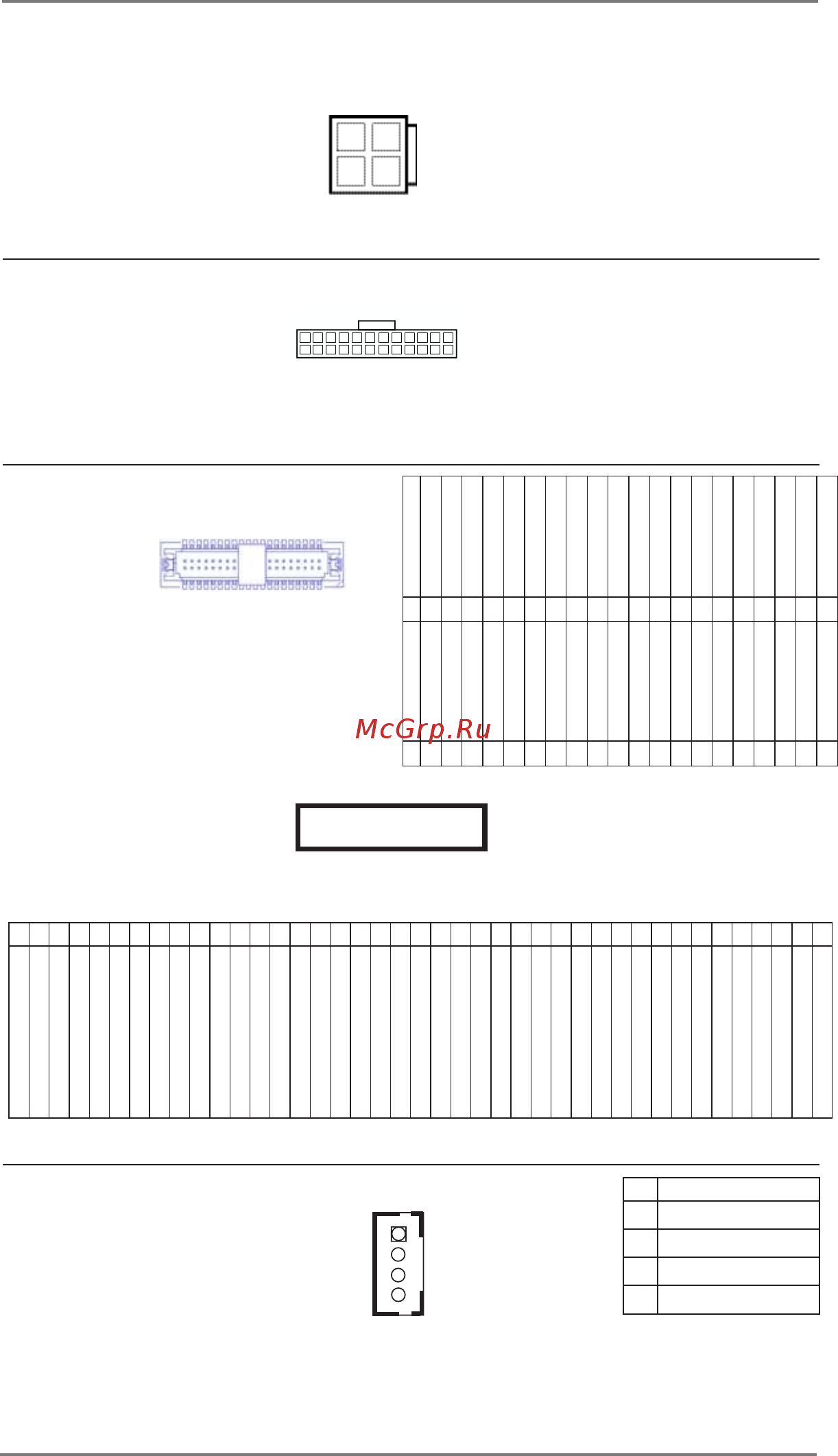

ATX Power Input/Output Connector
Please connect a DC
(4-pin ATX12V1)
power supply to this
(see p.10 No. 26)
connector.
1-2 : GND
3-4 : DC Input
* LVDS Connector (Only for IMB-194-L)
(40-pin LVDS1)
(see p.10 No. 7)
eDP Connector (For IMB-194-D only)
(on the Backside of PCB)
(40-pin EDP1)
(see p.10 No. 7)
4
2
3
1
1
39
40
2
PIN Signal Name PIN Signal Name
2 LCD_VCC 1 LCD_VCC
4 LDDC_CLK 3 +3.3V
6 LVDS_A_DATA0# 5 LDDC_DATA
8 GND 7 LVDS_A_DATA0
10 LVDS_A_DATA1 9 LVDS_A_DATA1#
12 LVDS_A_DATA2# 11 GND
14 GND 13 LVDS_A_DATA2
16 LVDS_A_DATA3 15 LVDS_A_DATA3#
18 LVDS_A_CLK# 17 GND
20 GND 19 LVDS_A_CLK
22 LVDS_B_DATA0 21 LVDS_B_DATA0#
24 LVDS_B_DATA1# 23 GND
26 GND 25 LVDS_B_DATA1
28 LVDS_B_DATA2 27 LVDS_B_DATA2#
30 LVDS_B_DATA3# 29 DPLVDD_EN
32 GND 31 LVDS_B_DATA3
34 LVDS_B_CLK 33 LVDS_B_CLK#
36 CON_LBKLT_EN 35 GND
38 LCD_BLT_VCC 37 CON_LBKLT_CTL
40 LCD_BLT_VCC 39 LCD_BLT_VCC
3W Audio AMP Output Wafer
(4-pin SPEAKER1)
(see p.10 No. 25)
PIN Signal Name
1 OUTLN
2 OUTLP
3 OUTRP
4 OUTRN
1
24 13
12 1
ATX Power Input Connector
This motherboard provides
(24-pin ATXPWR1)
a 24-pin ATX power connector.
(see p.10 No. 19)
To use a 20-pin ATX power
supply, please plug it along Pin
1 and Pin 13.
40 NA
39 LCD_BLT_VCC
38 LCD_BLT_VCC
37 LCD_BLT_VCC
36 LCD_BLT_VCC
35 NA
34 NA
33 CON_LBKLT_CTL
32 CON_LBKLT_EN
31 GND
30 GND
29 GND
28 GND
27 eDP_HPD_CON
26 GND
25 GND
24 GND
23 GND
22 NA
21 LCD_VCC
20 LCD_VCC
19 LCD_VCC
18 LCD_VCC
17 GND
16 eDP_AUX#_CON
15 eDP_AUX_CON
14 GND
13 eDP_TX0_CON
12 eDP_TX#0_CON
11 GND
10 eDP_TX1_CON
9 eDP_TX#1_CON
8 GND
7 eDP_TX2_CON
6 eDP_TX#2_CON
5 GND
4 eDP_TX3_CON
3 eDP_TX#3_CON
2 GND
1 NA
PIN Signal Name
1
EDP1
