36

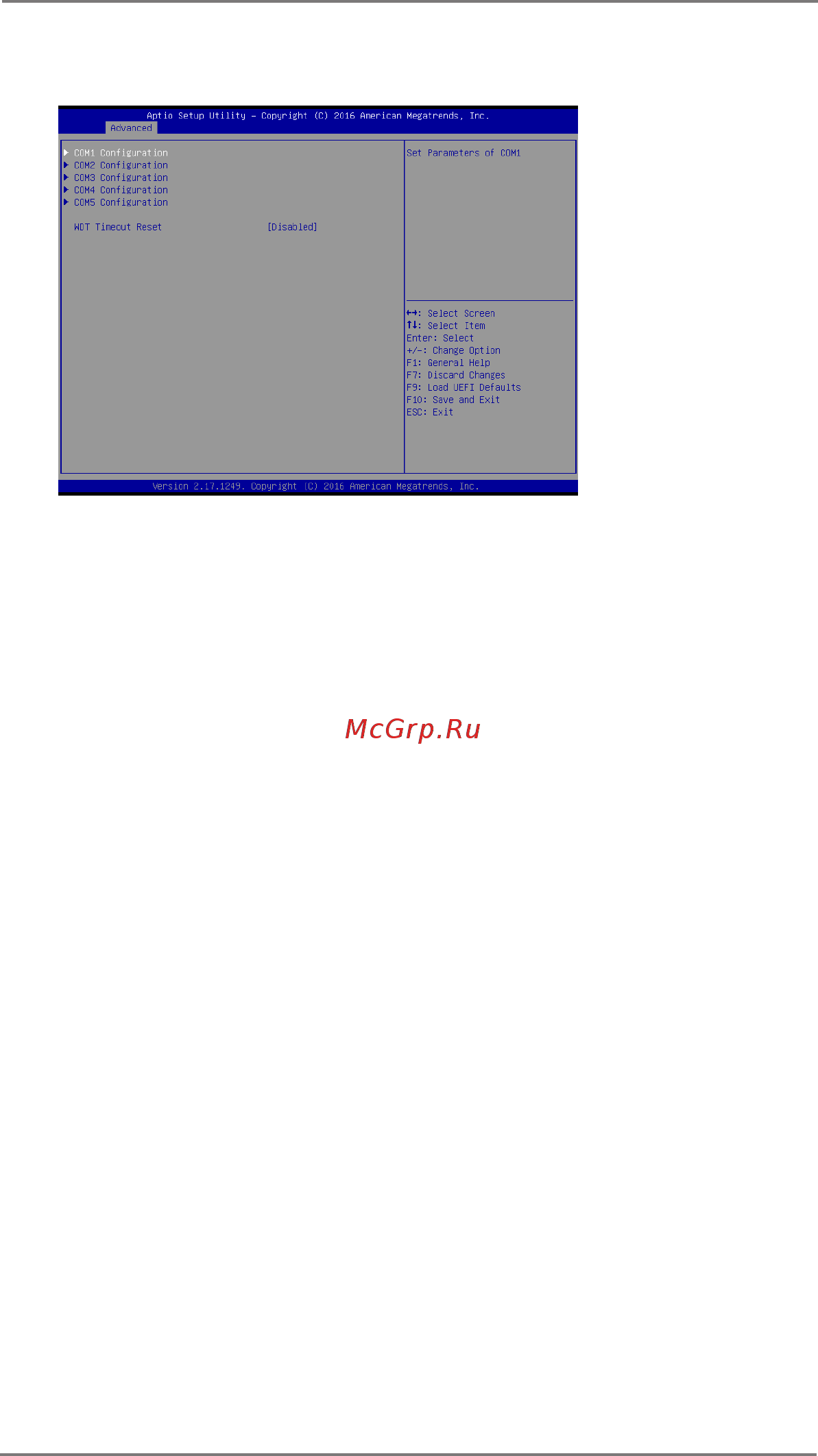

3.3.5 Super IO Conguration
COM1 Conguration
Use this to set parameters of COM1. Select COM1 port type: [RS232],
[RS422] or [RS485].
COM2 Conguration
Use this to set parameters of COM2. Select COM2 port type: [RS232],
[RS422] or [RS485].
COM3 Conguration
Use this to set parameters of COM3.
COM4 Conguration
Use this to set parameters of COM4.
COM5 Conguration
Use this to set parameters of COM5.
Watchdog Conguration
Use this to set the Watch Dog Timer.
