ASRock IMB-194-L [19/45] Backlight control level

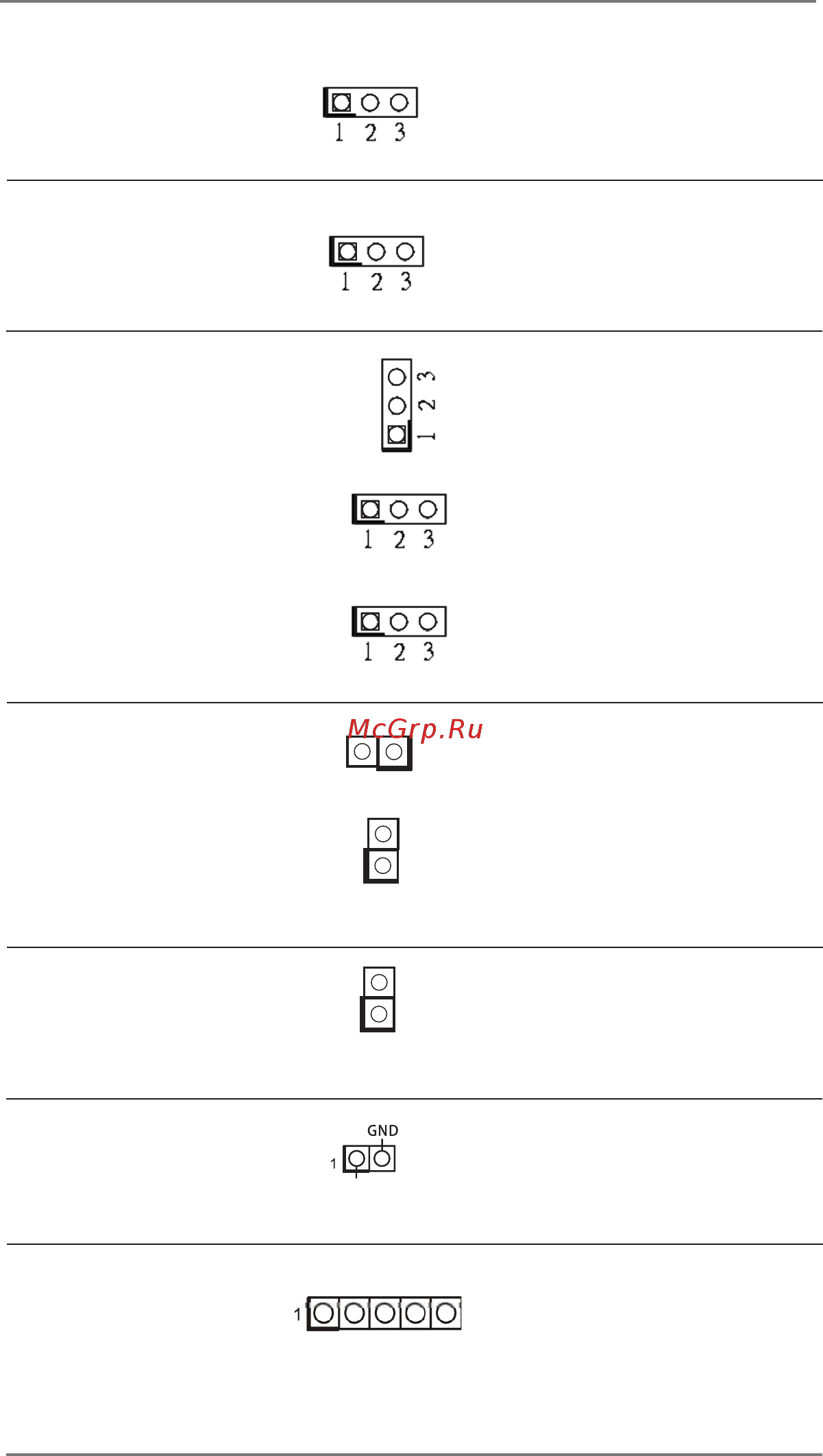

Backlight Control Level

1-2 : +3V (eDP)

(3-pin BLT_PWM1)

2-3 : +5V (LVDS)

(see p.10, No. 3)

Backlight Power Select (LCD_BLT_VCC) 1-2 : LCD_BLT_VCC : +5V

(3-pin BKT_PWR1)

2-3 : LCD_BLT_VCC : +12V

(see p.10, No. 4)

COM Port PWR Setting Jumpers 1-2 : +5V

(3-pin PWR_COM1 (For COM Port1),

2-3 : +12V

PWR_COM2 (For COM Port2))

(see p.10, No. 1)

(3-pin PWR_COM4 (For COM Port4),

PWR_COM5 (For COM Port5))

(see p.10, No. 12)

(3-pin PWR_COM3 (For COM Port3))

(see p.10, No. 16)

BL1, BL2

(2-pin BL1)

(see p.10 No. 6)

(2-pin BL2)

(see p.10 No. 13)

mSATA Select Open : For SATA3_1

(2-pin MSATA_SEL1)

Short : For mSATA

(see p.10, No. 24)

Power Loss Jumper

Open : Power Loss

(2-pin PWR_LOSS1)

Close : no Power Loss

(see p.10, No. 8)

+5VSB_ATX

Panel Power Select (LCD_VCC) 1-2 : LCD_VCC : +3V

(5-pin PNL_PWR1)

2-3 : LCD_VCC : +5V

(see p.10, No. 11)

4-5 : LCD_VCC : +12V
