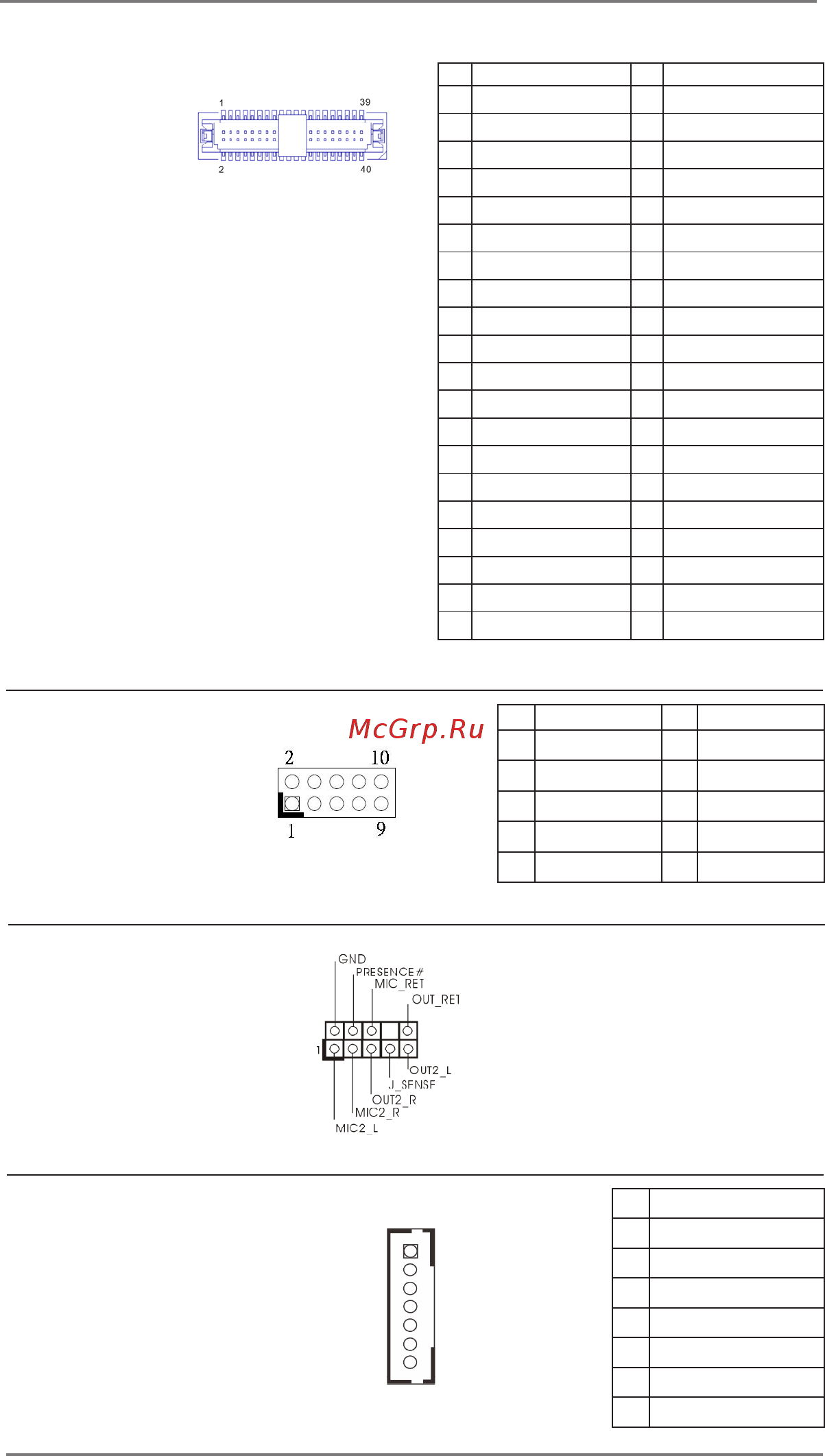

19
LVDS Connector
(40-pin LVDS1)
(see p.8 No. 28)
Backlight & Amp Volume Control
(7-pin BLT_VOL1)
(see p.8 No. 8)
PIN
Signal Name
1 GPIO_VOL_UP
2 GPIO_VOL_DW
3 PWRDN
4 GPIO_BLT_UP
5 GPIO_BLT_DW
6 GND
7 GND
1
Front Panel Audio Header
(9-pin HD_AUDIO1)
(see p.8 No. 25)
Digital Input/Output Pin Header
(10-pin JGPIO1)
(see p.8 No. 15)
PIN Signal Name PIN Signal Name
1 SIO_GP24 2 SIO_GP20
3 SIO_GP25 4 SIO_GP21
5 SIO_GP26 6 SIO_GP22
7 SIO_GP27 8 SIO_GP23
9 JGPIO_PWR 10 GND
PIN Signal Name PIN Signal Name
1 LCD_VCC 2 LCD_VCC
3 +3V 4 N/A
5 N/A 6 LVDS_A_DATA0#
7 LVDS_A_DATA0 8 GND1
9 LVDS_A_DATA1# 10 LVDS_A_DATA1
11 GND6 12 LVDS_A_DATA2#
13 LVDS_A_DATA2 14 GND2
15 LVDS_A_DATA3# 16 LVDS_A_DATA3
17 GND7 18 LVDS_A_CLK#
19 LVDS_A_CLK 20 GND3
21 LVDS_B_DATA0# 22 LVDS_B_DATA0
23 GND8 24 LVDS_B_DATA1#
25 LVDS_B_DATA1 26 GND4
27 LVDS_B_DATA2# 28 LVDS_B_DATA2
29 DPLVDD_EN 30 LVDS_B_DATA3#
31 LVDS_B_DATA3 32 GND5
33 LVDS_B_CLK# 34 LVDS_B_CLK
35 GND9 36
CON_LBKLT_EN
37
CON_LBKLT_CTR
38 LCD_BLT_VCC
39 LCD_BLT_VCC 40 LCD_BLT_VCC
