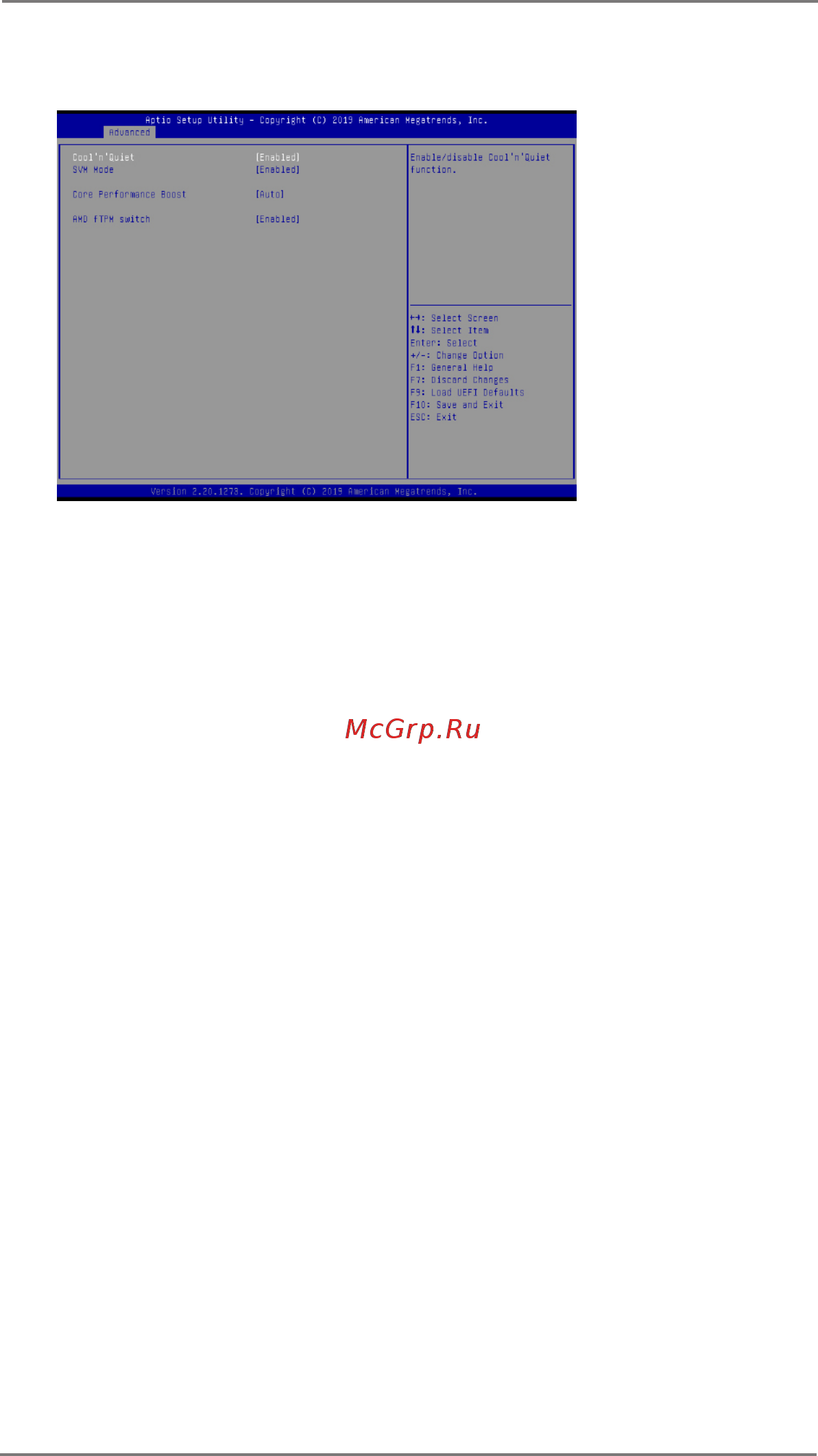

3.3.1 CPU Conguration
Cool ‘n‘ Quiet
Use this item to enable or disable AMD’s Cool ‘n’ QuietTM technology.
The default value is [Enabled]. Conguration options: [Enabled] and [Dis-
abled]. If you install Windows
®
OS and want to enable this function, please
set this item to [Enabled]. Please note that enabling this function may re-
duce CPU voltage and memory frequency, and lead to system stability or
compatibility issue with some memory modules or power supplies. Please
set this item to [Disable] if above issue occurs.
SVM Mode
When this is set to [Enabled], a VMM (Virtual Machine Architecture) can
utilize the additional hardware capabilities provided by AMD-V. The default
value is [Enabled]. Conguration options: [Enabled] and [Disabled].
Core Performance Boost
The default value is [Auto].
AMD fTPM Switch
Use this to enable or disable AMD CPU fTPM.
