ASRock 4X4-R1000V [21/32] Chipset configuration

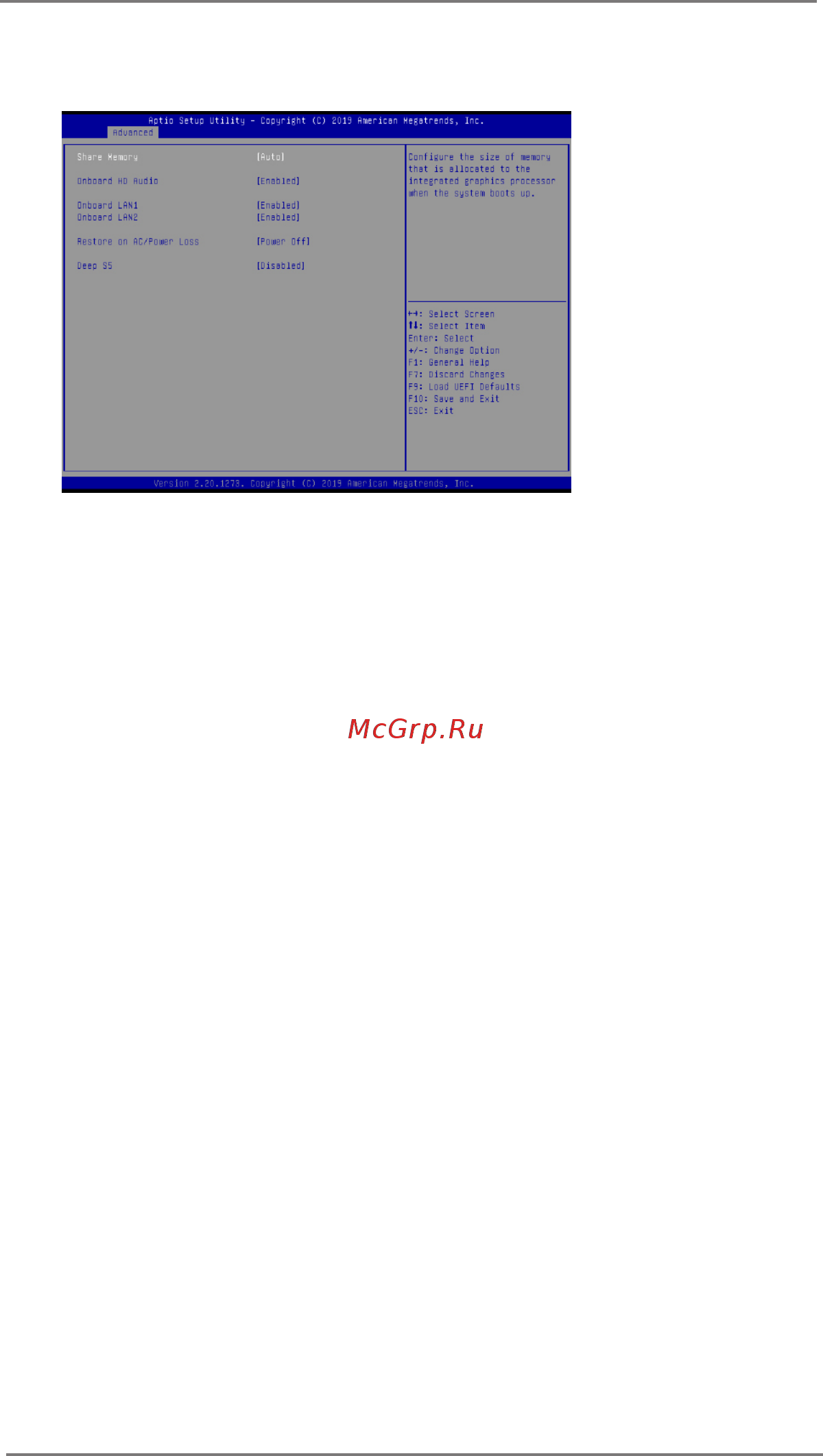

3.3.2 Chipset Conguration

Share Memory

Congure the size of memory that is allocated to the integrated graphics

processor when the system boots up.

Onboard HD Audio

Select [Enabled] or [Disabled] for the onboard HD Audio feature.

Onboard LAN 1

This allows you to enable or disable the Onboard LAN 1.

Onboard LAN 2

This allows you to enable or disable the Onboard LAN 2.

Restore on AC/Power Loss

Select the power state after a power failure. If [Power O] is selected, the

power will remain o when the power recovers. If [Power On] is selected,

the system will start to boot up when the power recovers.

Deep S5

[Auto] will disable the deep S5 conguration if RTC/LAN/USB

device power on settings are enabled. The default value is

[Disabled].
