2.3 Installation of Memory Modules (SO-DIMM)

N3710-NUC IPC motherboard provides two 204-pin DDR3 (Double Data Rate

3) SO-DIMM slots, which support Dual Channel DDR3L (low voltage).

1. It is not allowed to install a DDR or DDR2 memory module into a

DDR3 slot; otherwise, this motherboard and SO-DIMM may be

damaged.

2. Please make sure to disconnect the power supply before adding or

removing SO-DIMMs or the system components.

3. The SO-DIMM only ts in one correct orientation. It will cause

permanent damage to the motherboard and the SO-DIMM if you force

the SO-DIMM into the slot at incorrect orientation.

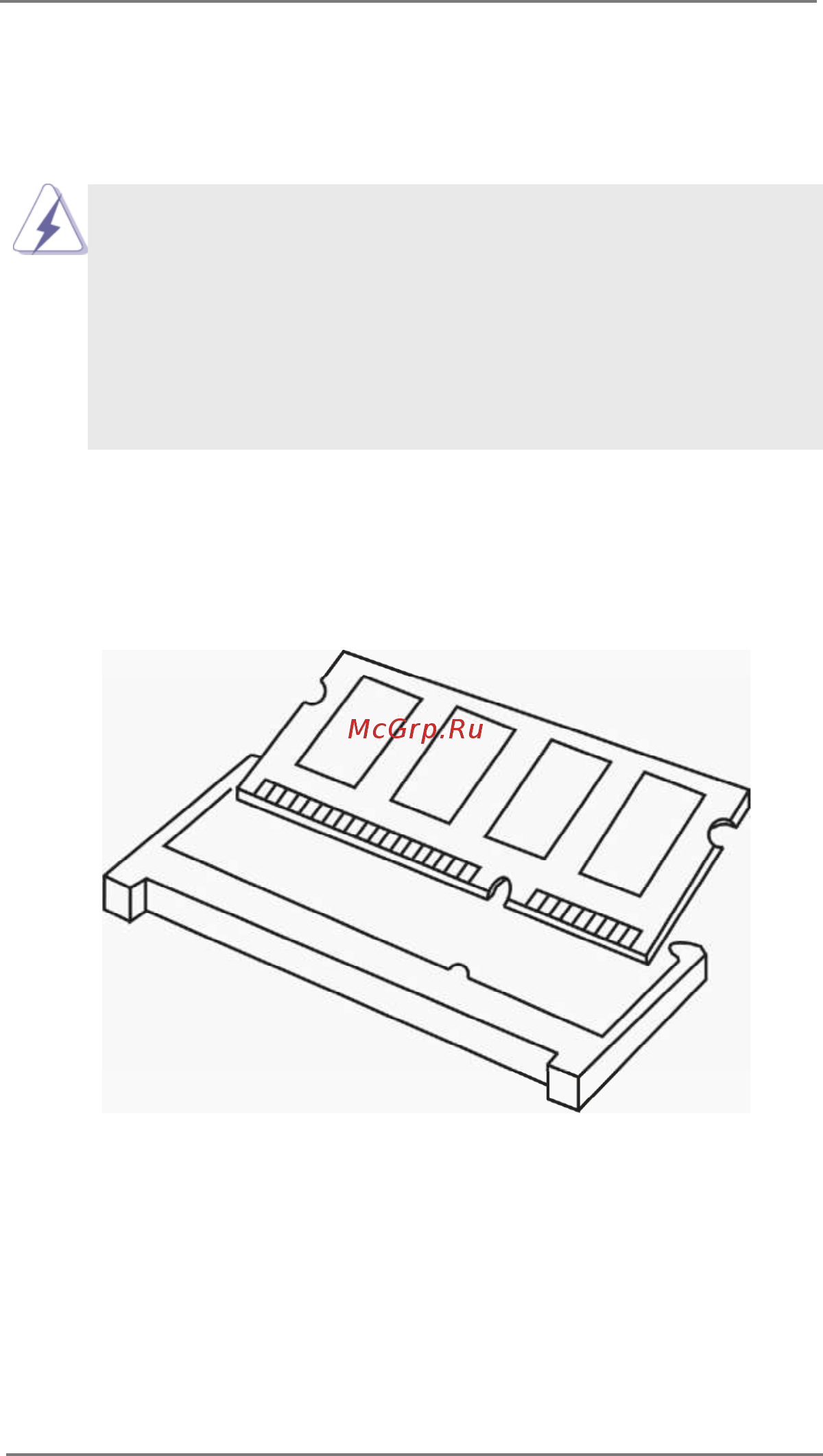

Installing a SO-DIMM

Step 1. Align a SO-DIMM on the slot such that the notch on the SO-DIMM

matches the break on the slot.

Step 2. Firmly insert the SO-DIMM into the slot until the retaining clips at both

ends fully snap back in place and the SO-DIMM is properly seated.
