1.4 I/O Panel

* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED

indications.

LAN Port LED Indications

Activity/Link LED SPEED LED

Status Description Status Description

Off No Link Off 10Mbps connection

Blinking Data Activity Off 100Mbps connection

On Link Green 1Gbps connection

ACT/LINK

LED

SPEED

LED

LAN Port

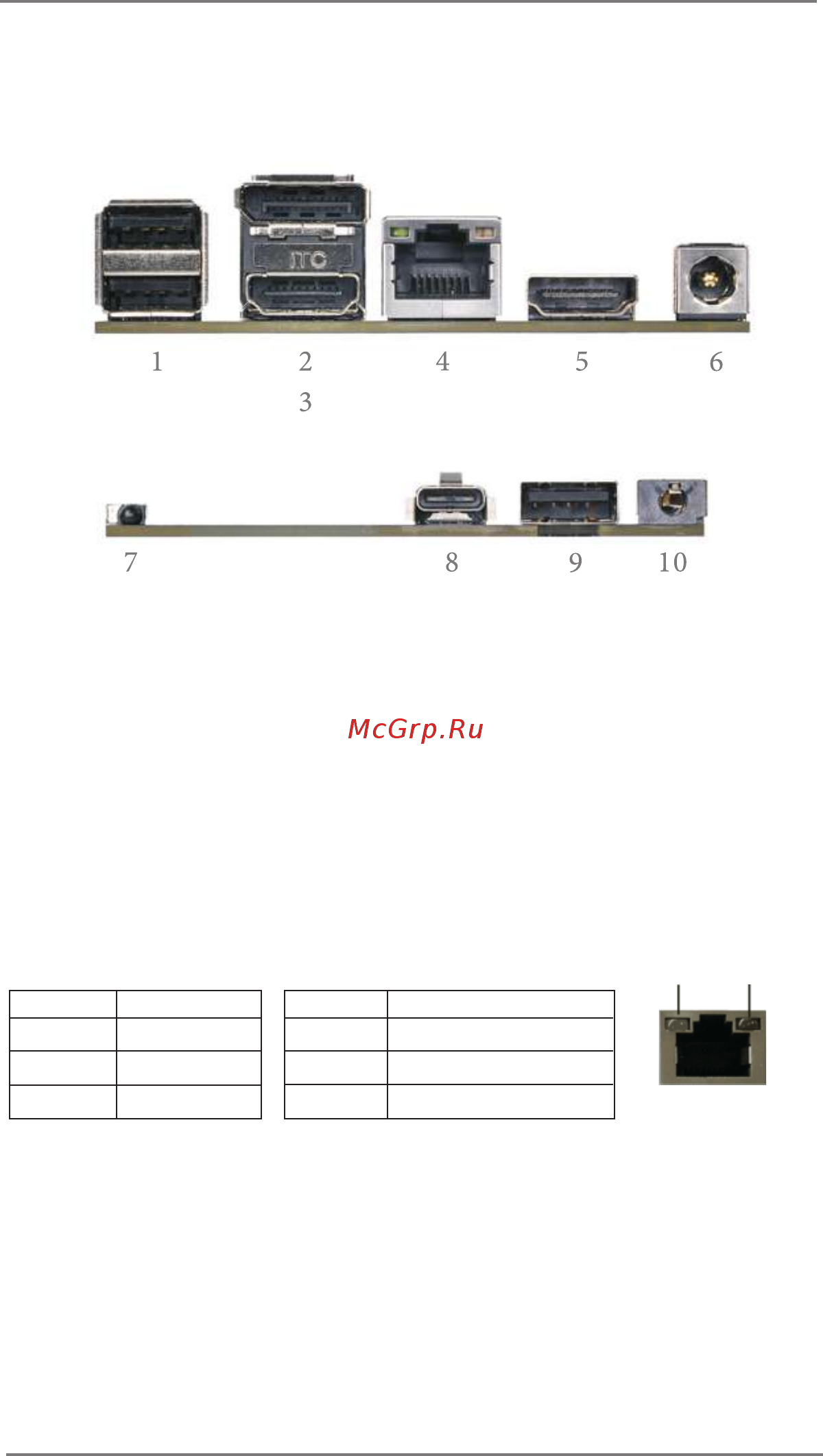

1 USB 3.0 Ports (USB3_3_4)

2 DisplayPort (HDMI_DP_1)

3 HDMI Port (HDMI1)

4 LAN RJ-45 Port (LAN1)*

5 HDMI Port (HDMI2)

6 DC Jack (DC_IN1)

7 Infrared LED (IR1)

8 USB 3.1 Type-C Port (USB3_TC_1)

9 USB 3.0 Port (USB3_2)

10 Audio Jack (AUDIO1)
