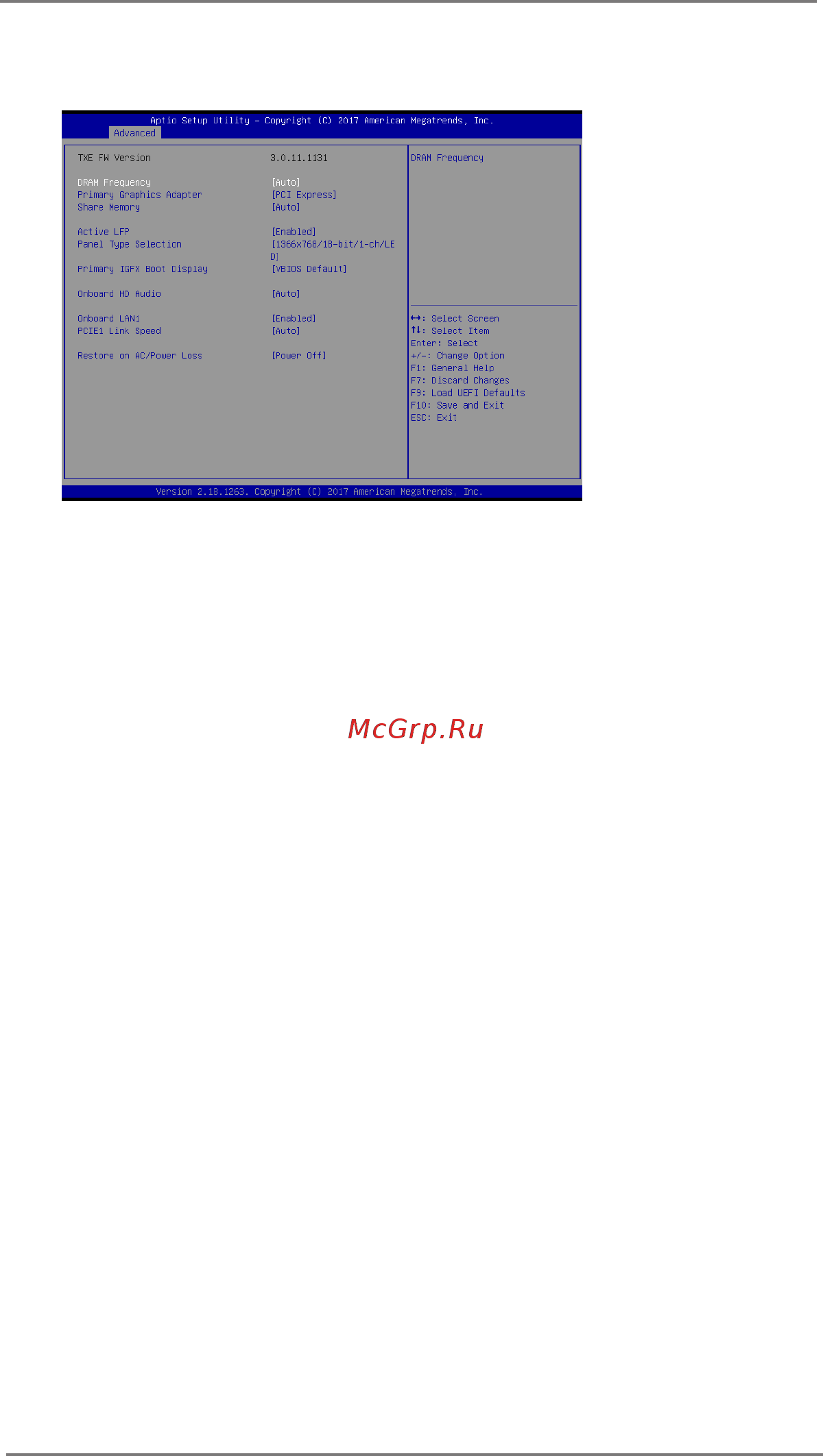

3.3.2 Chipset Conguration

DRAM Frequency

If [Auto] is selected, the motherboard will detect the memory module(s)

inserted and assign the appropriate frequency automatically.

Share Memory

Congure the size of memory that is allocated to the integrated graphics

processor when the system boots up.

Active LFP

Select [Enabled] or [Disabled]. The default value is [Enabled].

Panel Type Selection

Use this to select panel type.

Primary IGFX Boot Display

Use this to select primary internal graphics boot display. The default value

is [VBIOS Default].

Onboard HD Audio

Select [Auto], [Enabled] or [Disabled] for the onboard HD Audio feature. If

you select [Auto], the onboard HD Audio will be disabled when PCI Sound

Card is plugged.

Onboard LAN 1

This allows you to enable or disable the Onboard LAN 1 feature.

PCIE1 Link Speed

Select the link speed for PCIE1.
