ASRock NUC BOX 6100 [14/39] How to install the msata ssd
![ASRock NUC BOX 6100 [14/39] How to install the msata ssd](/views2/1693779/page14/bge.png)
NUC BOX 6100
8 9
English

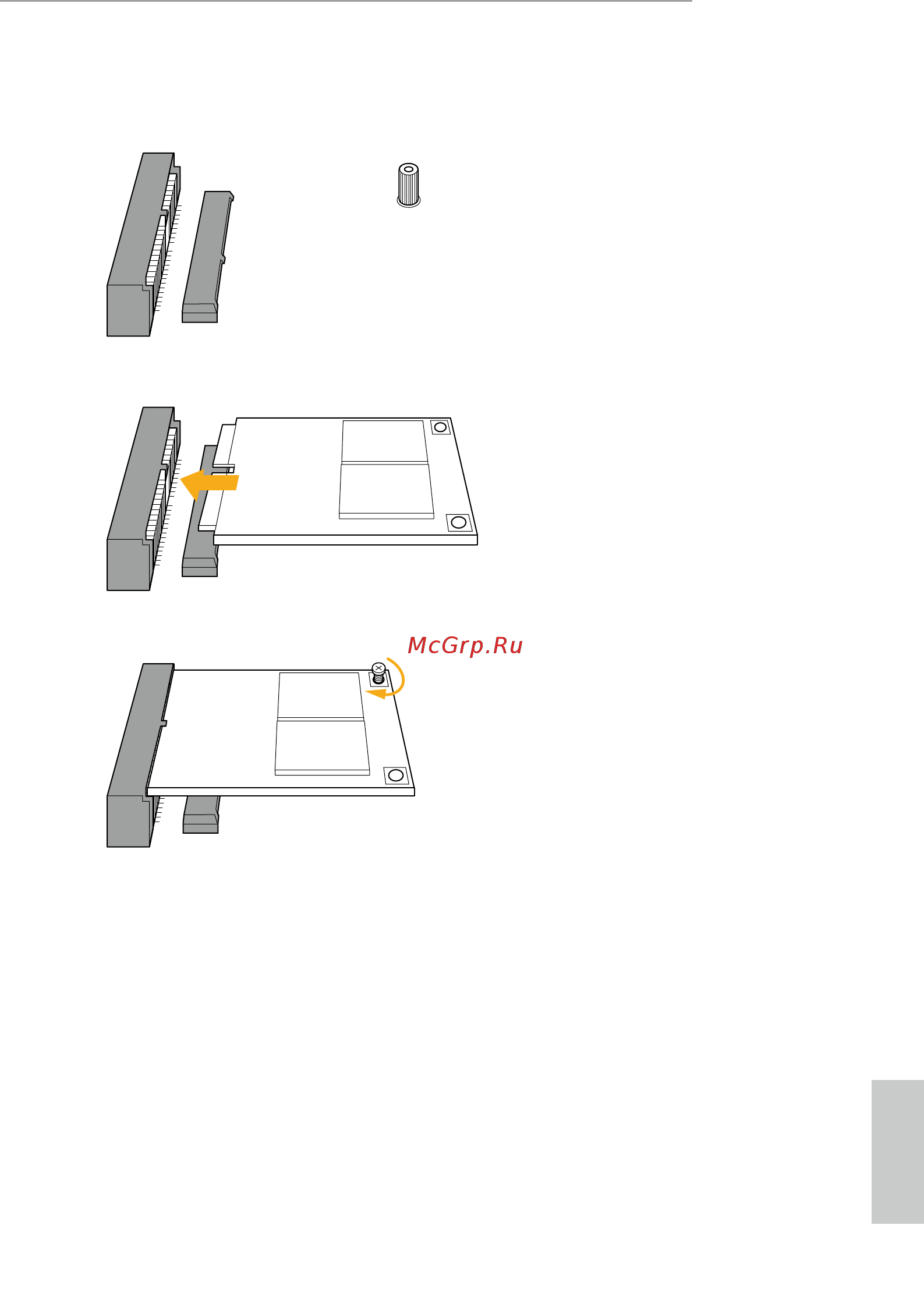

3.3 How to Install the mSATA SSD
1. Locate the mSATA slot on the motherboard
.
2. Carefully insert the mSATA SSD into the slot.
3. Tighten the screw to secure the mSATA SSD to the motherboard.
