NUC BOX 6100
12 13
English

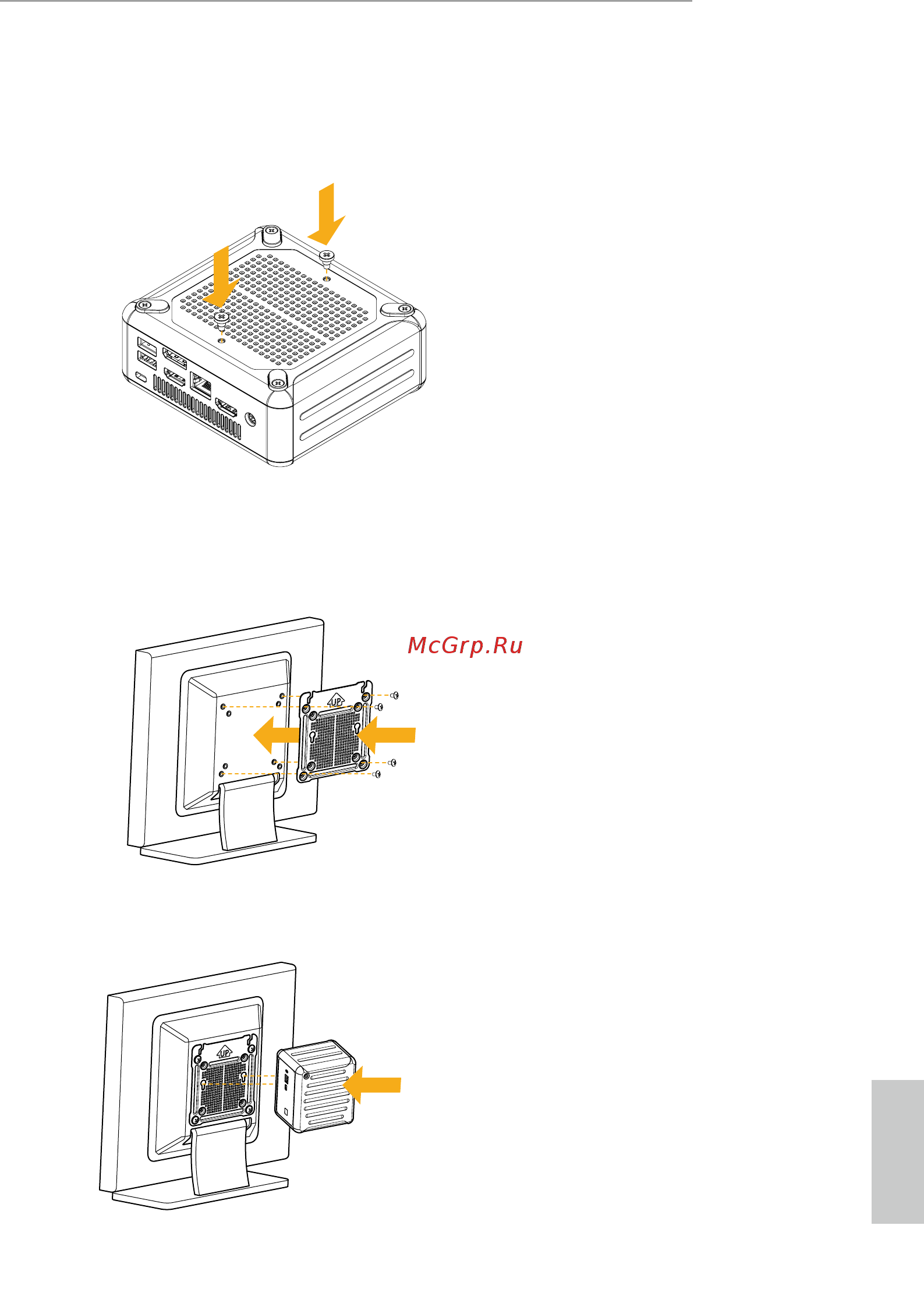

3.6 How to Install the VESA Bracket
1. Attach the two screws to the base of the NUC BOX 6100.
2. 2. Attach the VESA Bracket to the rear of a compatible display using the four screws.
*Choose mounting holes depending on the mounting hole pattern of your LCD screen
(75 mm × 75 mm or 100 mm × 100 mm).
3. Mount the NUC BOX 6100 by sliding it into place.
