ASRock NUC BOX 6100 [15/39] English
![ASRock NUC BOX 6100 [15/39] English](/views2/1693779/page15/bgf.png)
10 11
English

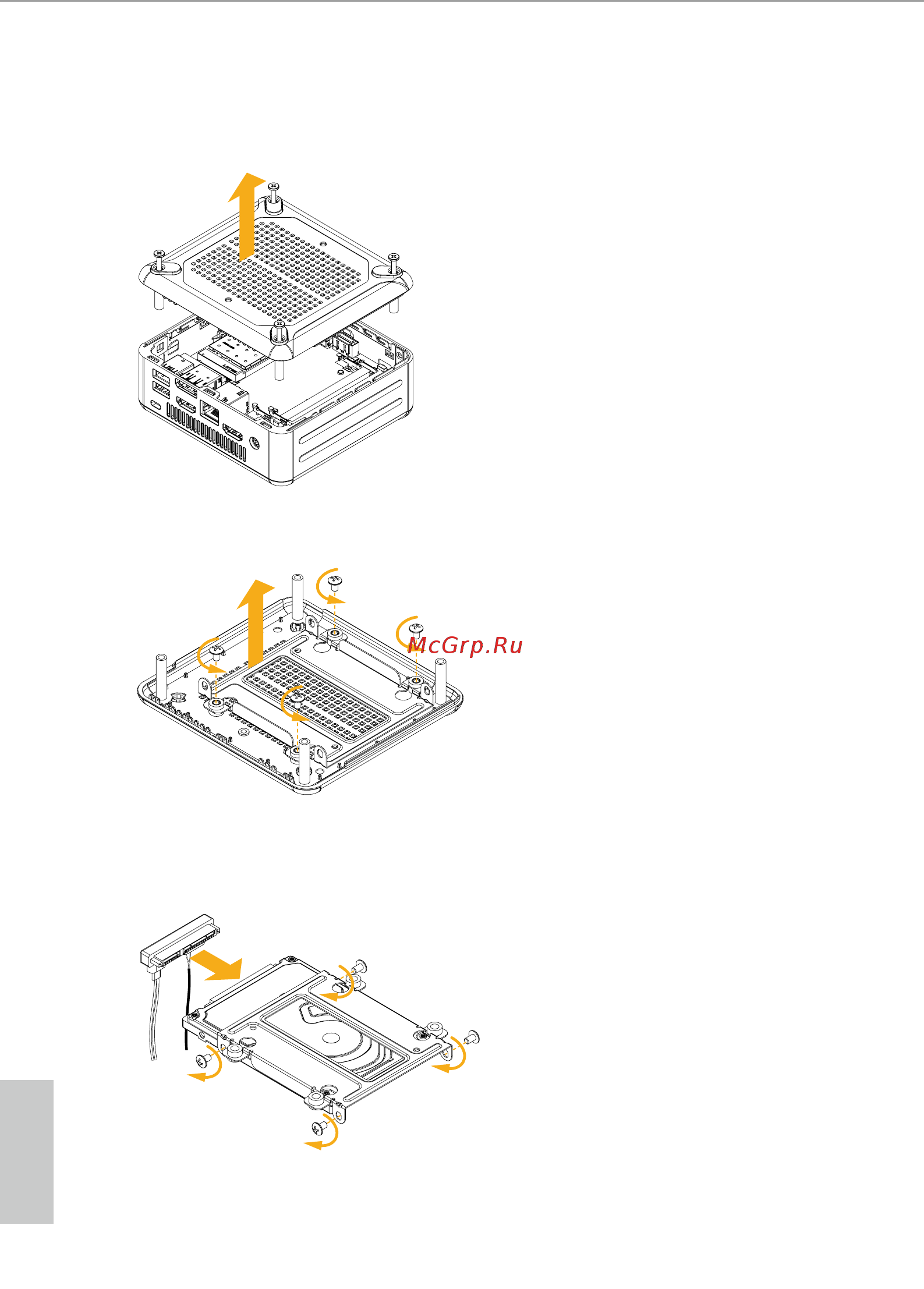

3.4 How to Install the 2.5-inch Hard Drive
1. Remove the four screws on the bottom case. en li up and remove the bottom panel.
2. Unscrew the four screws that hold the HDD cage in place.
3. Install the HDD in the cage using the four screws. en connect the SATA cable to the
HDD.
