NUC BOX 3000/3050/3150
PB 7
English
Chapter 3 Hardware Installation
is chapter helps you install or remove important components.

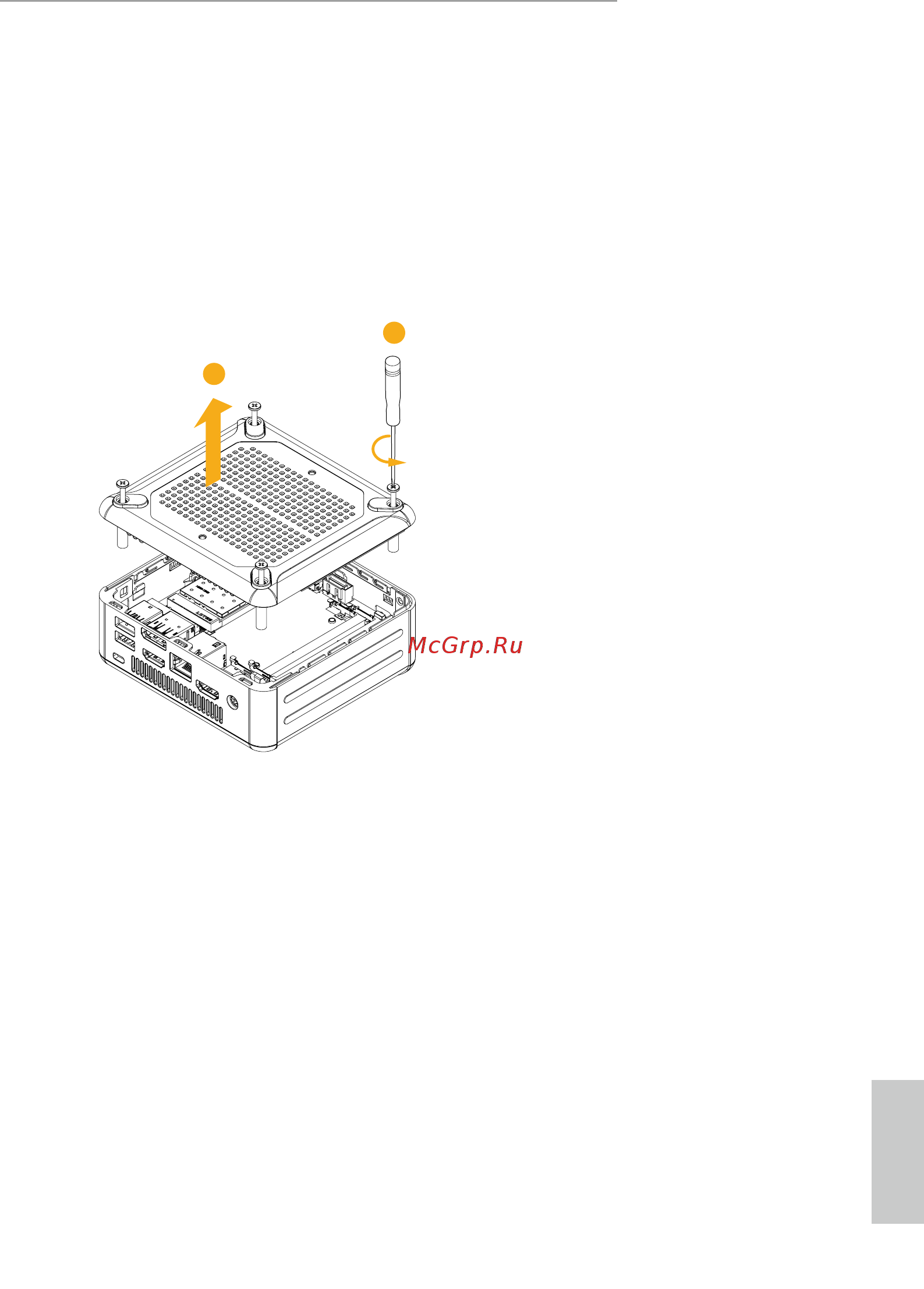

3.1 How to Remove the Bottom Case
1. Remove the four screws on the bottom case.
2. en li up and remove the bottom panel..
2
1
