NUC BOX 3000/3050/3150
20 21
English

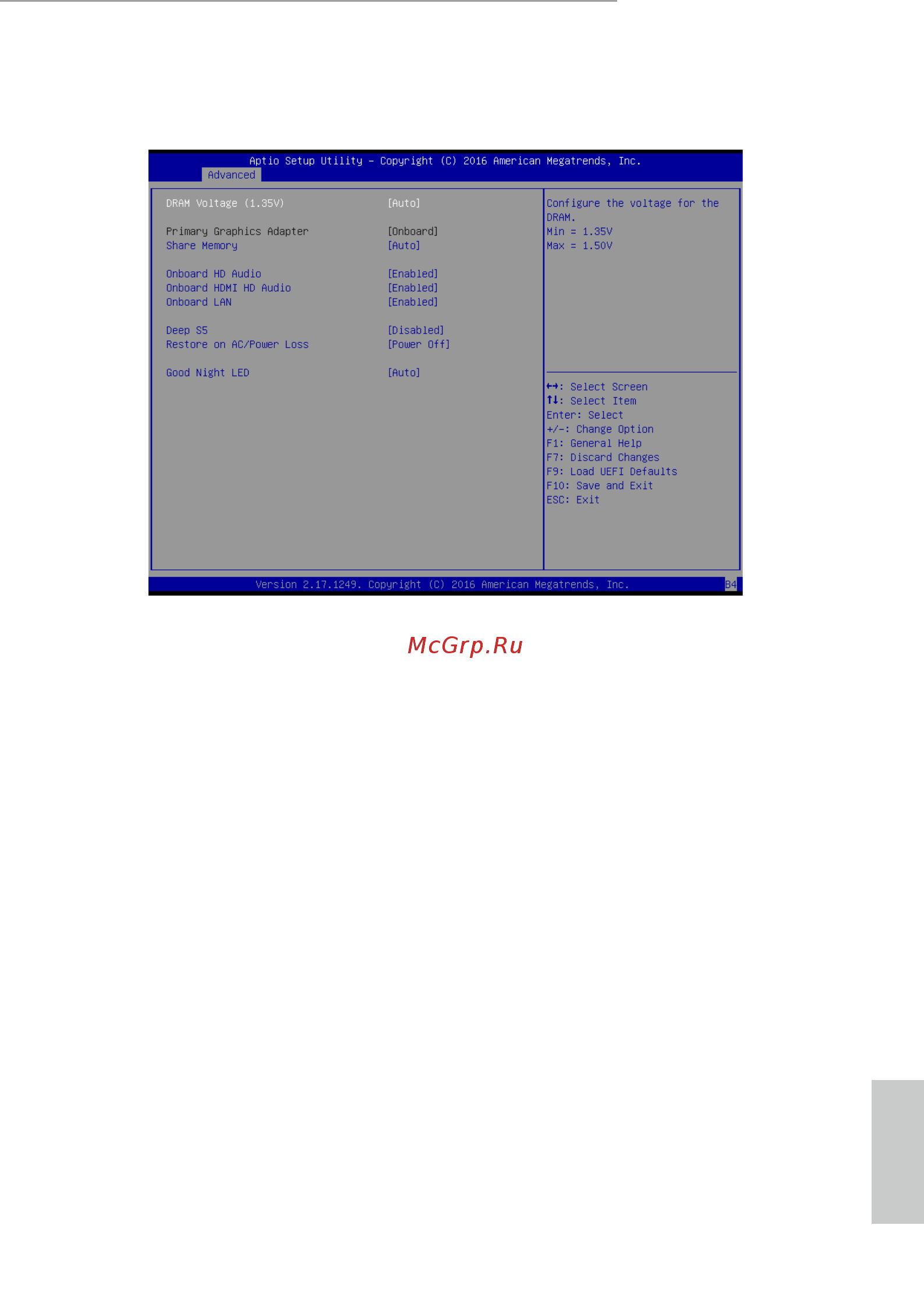

5.3.2 Chipset Conguration
DRAM Voltage (1.35V)
Use this to congure DRAM Voltage (1.35V). e default value is [Auto].
Primary Graphics Adapter
Select a primary VGA.
Share Memory
Congure the size of memory that is allocated to the integrated graphics processor
when the system boots up.
Onboard HD Audio
Enable/disable onboard HD audio. Set to Auto to enable onboard HD audio and
automatically disable it when a sound card is installed.
Onboard HDMI HD Audio
Enable audio for the onboard digital outputs.
