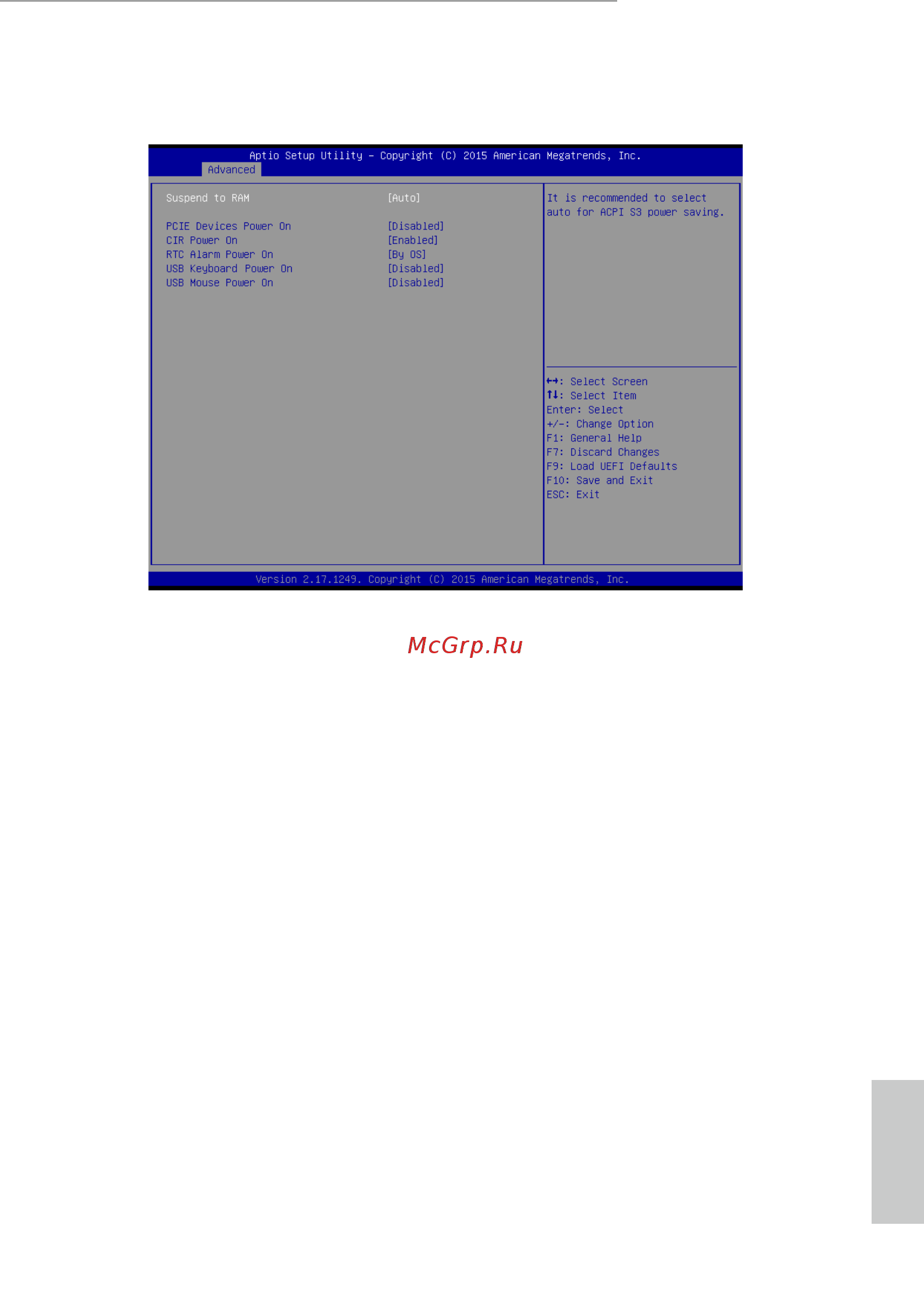

5.3.5 ACPI Conguration
Suspend to RAM
It is recommended to select auto for ACPI S3 power saving.
PCIE Device Power On
Allow the system to be waked up by a PCIE device and enable wake on LAN.
CIR Power On
Enable or disable the CIR Power On feature.
RTC Alarm Power On
Allow the system to be waked up by the real time clock alarm. Set it to By OS to let
it be handled by your operating system.
USB Keyboard Power On
Allow the system to be waked up by an USB keyboard.
