NUC BOX 3000/3050/3150
18 19
English

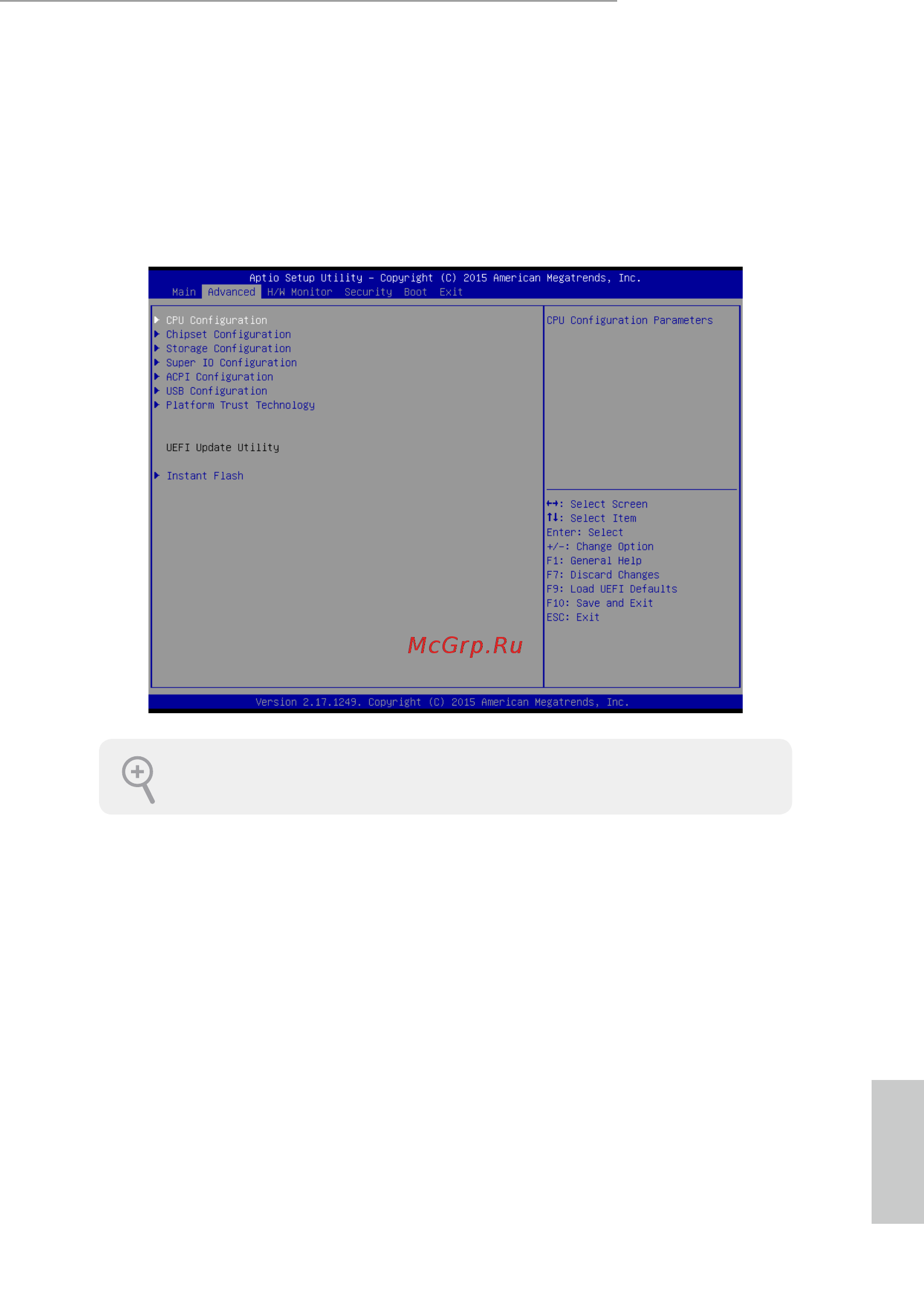

5.3 Advanced Screen
In this section, you may set the congurations for the following items:
CPU Conguration, Chipset Conguration, Storage Conguration, Super IO
Conguration, ACPI Conguration, USB Conguration and Platform Trust
Technology.
Instant Flash
Save UEFI les in your USB storage device and run Instant Flash to update your
UEFI.
Setting wrong values in this section may cause the system to malfunction.
