![ASRock NUC BOX 8265U [12/36] Rear view](/img/pdf.png)
ASRock NUC BOX 8265U [12/36] Rear view
![ASRock NUC BOX 8265U [12/36] Rear view](/views2/1693786/page12/bgc.png)
7 8
English

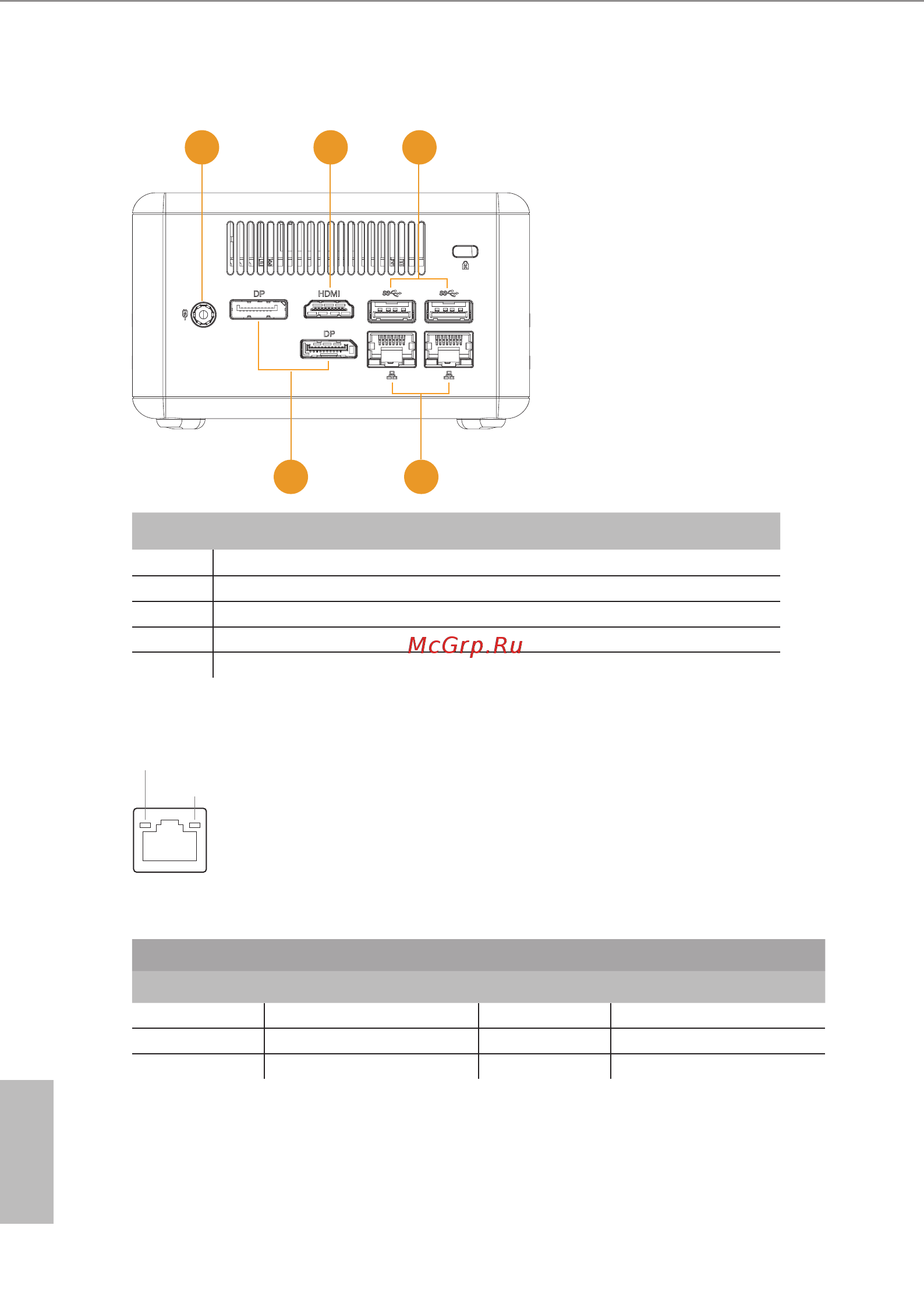

2.2 Rear View
No. Description
1 DC-IN
2 HDMI
3 2 x USB 3.0 (Type A)
4 2 x DisplayPort
5 2 x RJ-45
* ere are two LEDs on the LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
ACT/LINK LED
SPEED LED
LAN Port
1 2 3
4 5
