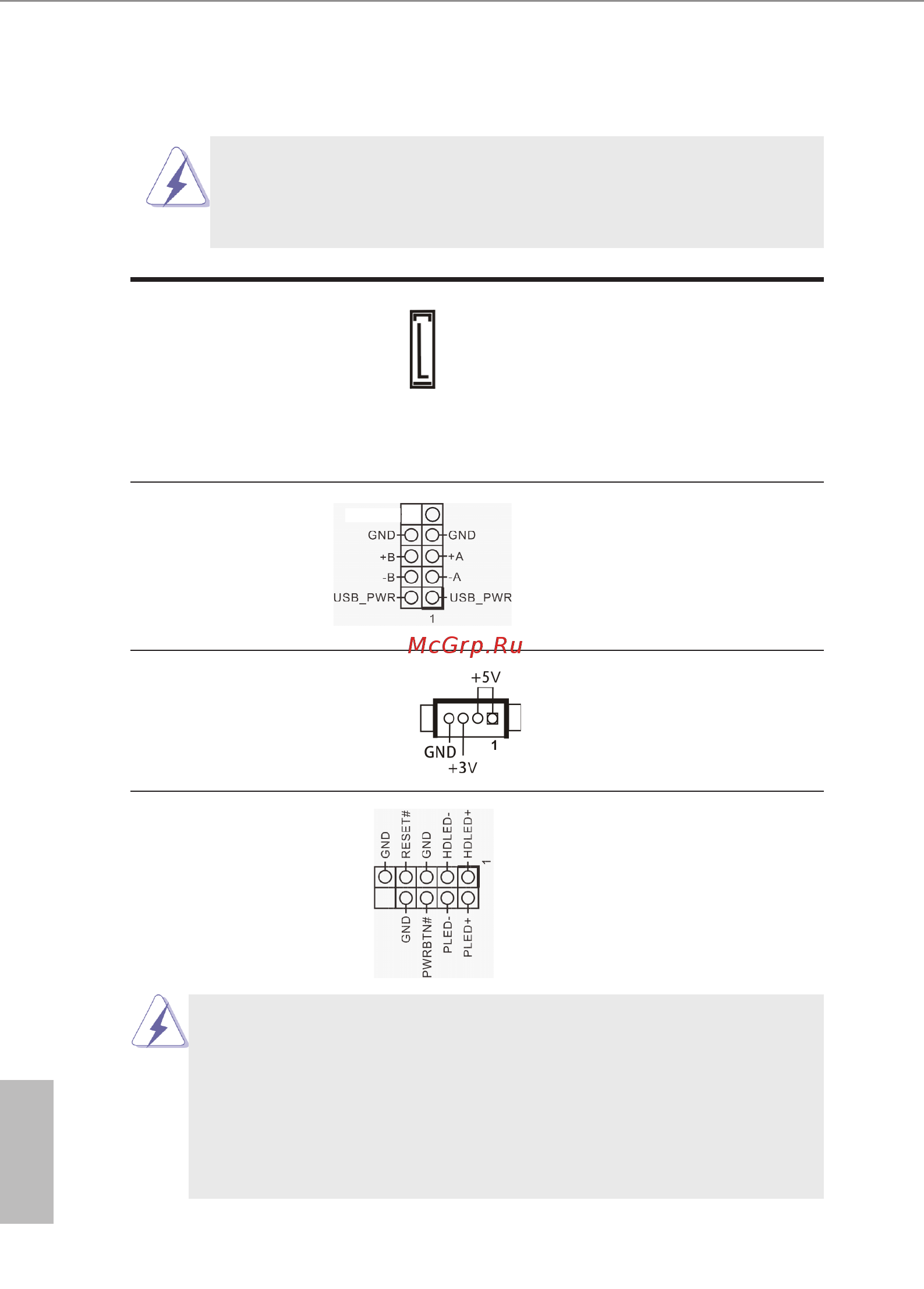

4.4 Onboard Headers and Connectors
Onboard headers and connectors are NOT jumpers. Do NOT place
jumper caps over these headers and connectors. Placing jumper caps
over the headers and connectors will cause permanent damage of the
motherboard!
SATA Power Output Connector
Please connect a SATA
(SATA_PWR1)
power cable to this connector.
(see p.16, No. 8)
SATA3 Connector This Serial ATA3 (SATA3)
(SATA3_1: see p.16, No. 9)
connector supports SATA data
cables for internal storage
devices. The current SATA3
interface allows up to 6.0 Gb/s
data transfer rate.
USB 2.0 Connector There is one USB 2.0
(9-pin USB2_3_4)
connector on this
(see p.16 No. 3)
motherboard.
_
DUMMY
System Panel Header This header accommodates
(9-pin PANEL1)
several system front panel
(see p.16 No. 5)
functions.
Connect the power switch, reset switch and system status indicator on the
chassis to this header according to the pin assignments below. Note the
positive and negative pins before connecting the cables.
PWRBTN (Power Switch):
Connect to the power switch on the chassis front panel. You may congure
the way to turn off your system using the power switch.
