16 17
English
Chapter 4 Motherboard (NUC BOX 8265U)

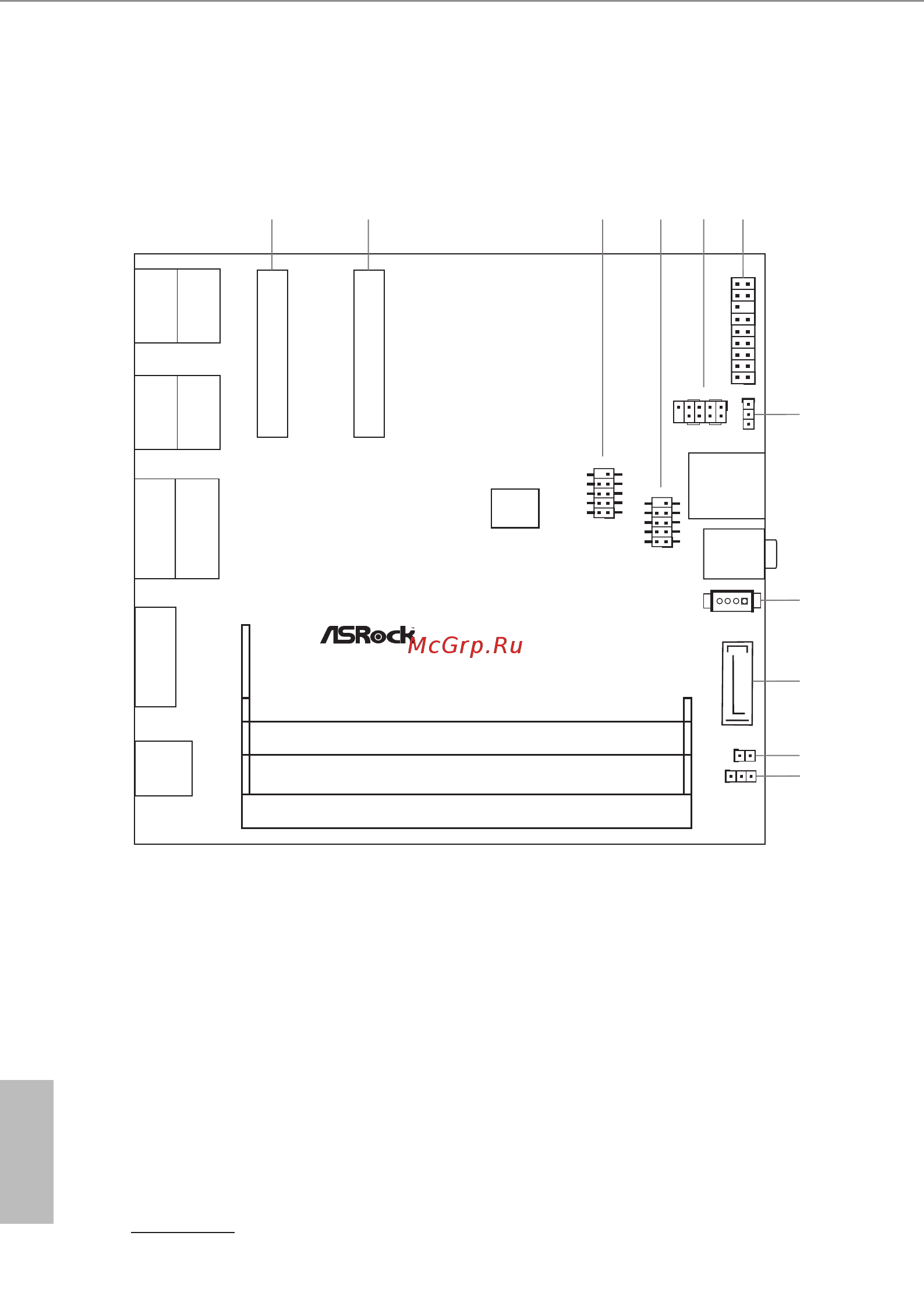

4.1 Motherboard Layout
M2_2
AUDIO1
HDMI1
USB3.1:
USB3_3
DC_IN1
M.2SSD (M2_1)
DP2
DISPLAY1
SATA3_1
DDR4_B1 (SupportDDR4L Only)
DDR4_A1 (SupportDDR4L Only)
SATA_PWR1
1
11
10
1
8
2
3
6
7
9
NUC-8265U
Industrial
LAN1
USB3.1:
USB3_1
LAN2
USB3.1:
USB3_2
BIOS
ROM
M2_SEL2
1
CLRMOS1
1
1
LPC1
RESET HDLED
PWRBTNPLED
PANEL1
1
PWR _J P1
1
USB2_3_4
1
COM1
4
5
1
1 :
M.2 Key-M Socket (M2_1)
2 :
M.2 Key-E Socket (M2_2)
3 : USB2.0 Connector (USB2_3_4)
4 :
COM Port Header (RS232/422/485)
5 :
System Panel Header (PANEL1)
6 : LPC Debug Header (LPC1)
7 : ATX/AT Mode Jumper (PWR_JP1)
8 :
SATA Power Output Connector (SATA_PWR1)
9 : SATA3 Connector (SATA3_1)
10 : M.2 Select (M2_SEL1)
11 :
Clear CMOS Headers (CLRMOS1)
Back Side :
Power Button (PWR_BTN1)
Fan Connector (FAN1)
