ASRock 3U8G-C612 [21/59] English
![ASRock 3U8G-C612 [21/59] English](/views2/1694132/page21/bg15.png)
16 17
English

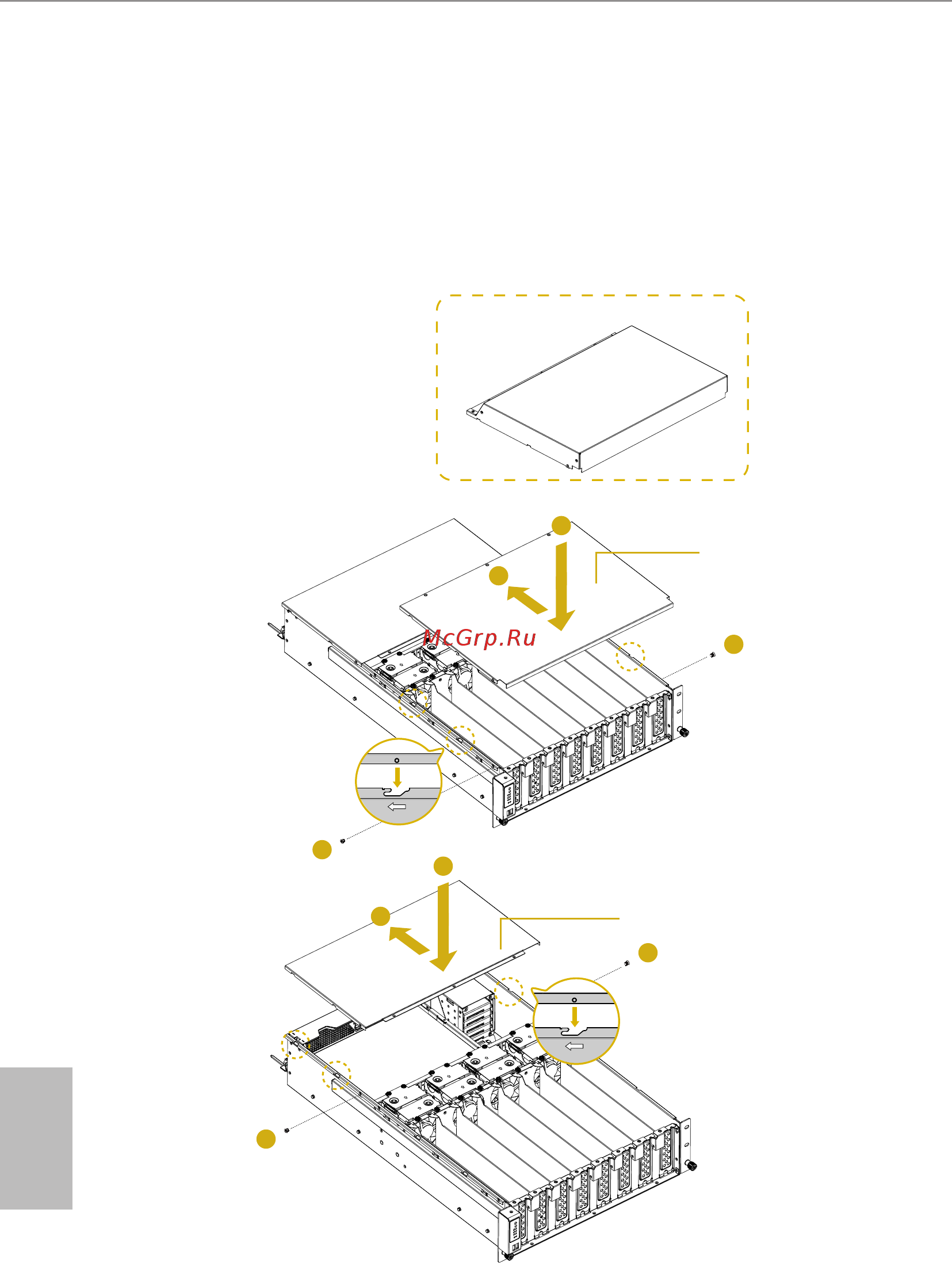

Installing the Server Top Covers
1. Lower the top front or rear cover on the chassis, making sure the side latches align with
the cutouts.
2. Slide the top front or rear cover toward the REAR of the chassis.
*Use a 4U top (front) cover instead if the power connectors of your GPGPU card are on the top side of it.
Please purchase seperately if needed.
3. Secure the top front or rear cover with the two screws.
2
1
Top Front Cover
Top Rear Cover
2
1
3
3
3
3
4U Top Front Cover (Optional)
