Kuppersberg TGM 60B [13/30] Adapting to the different types of gas

Setting the minimum level

1) Light the burner as already described.

2) Turn the tap to the minimum flame position.

3) Remove the control knobs.

4) Use a thin straight screwdriver to turn the by-pass pin located next to the tap rod

(see fig. 5).

For LPG, turn the by-pass pin fully clockwise.

The result should be a small, homogeneous flame which is uniform around the

entire burner ring. For the Dual Triple Flame version see fig. 5A, by-pass 1 central

burner, by-pass 2 both burners.

5) Finally, check that the burner does not go out when the tap is turned quickly from

the maximum to the minimum position.

Changing the nozzles

1) Remove the pan stands

2) Remove the burner caps and flame caps from the burners.

3) Use a size 7 socket wrench to unscrew and remove the nozzles, replacing them

with those corresponding to the type of gas to be used (see table on page 24).

4) Reassemble the parts, reversing the operations described above.

5) Then replace the setting data plate (close to the mains gas connection) with the

one for the new type of gas

If the pressure of the gas used is different from that specified (or variable), a suitable

piped gas pressure regulator complying with the standard must be installed on the

supply pipeline.

Adapting to the different types of gas

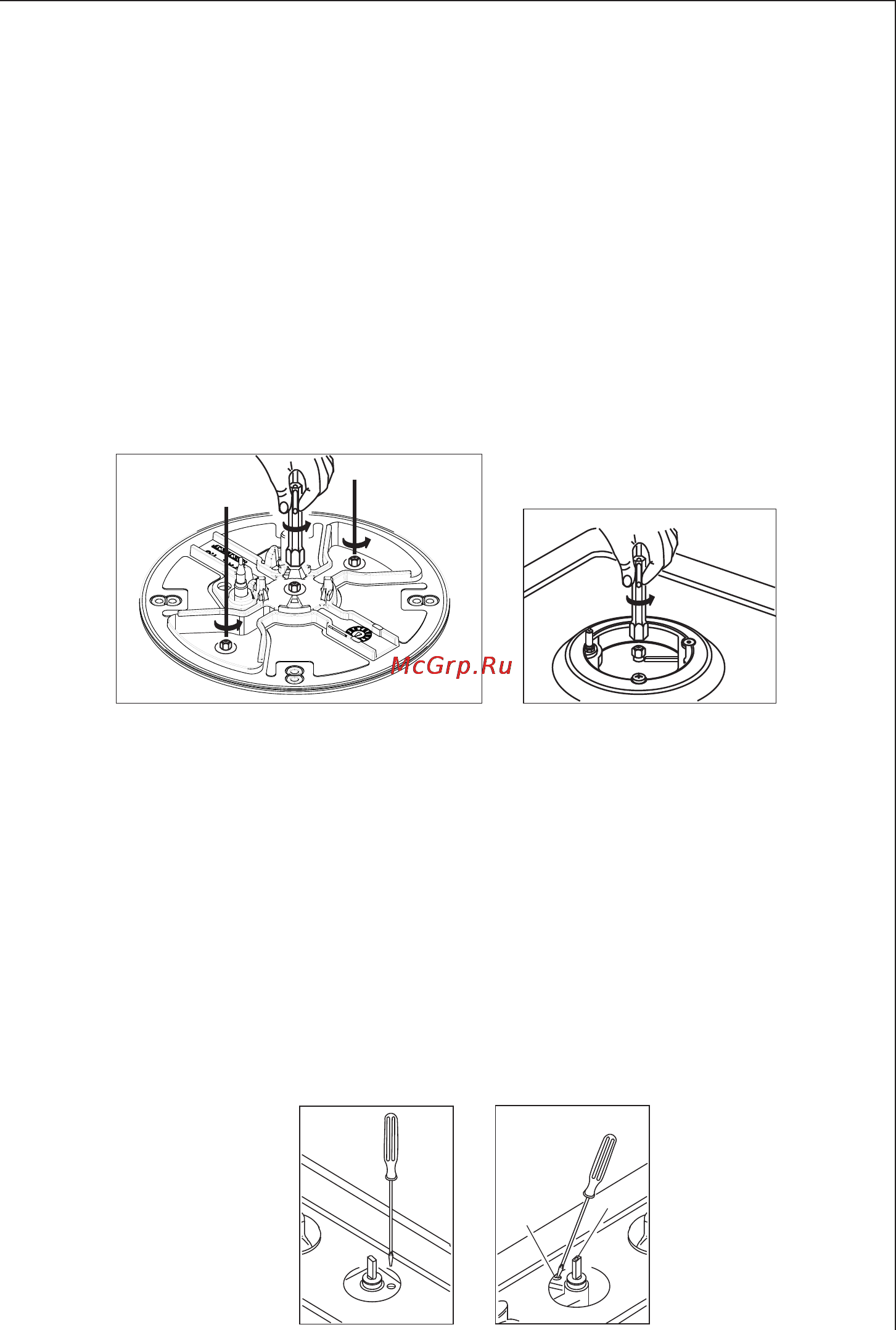

Fig. 5

Dual

Fig. 5A
