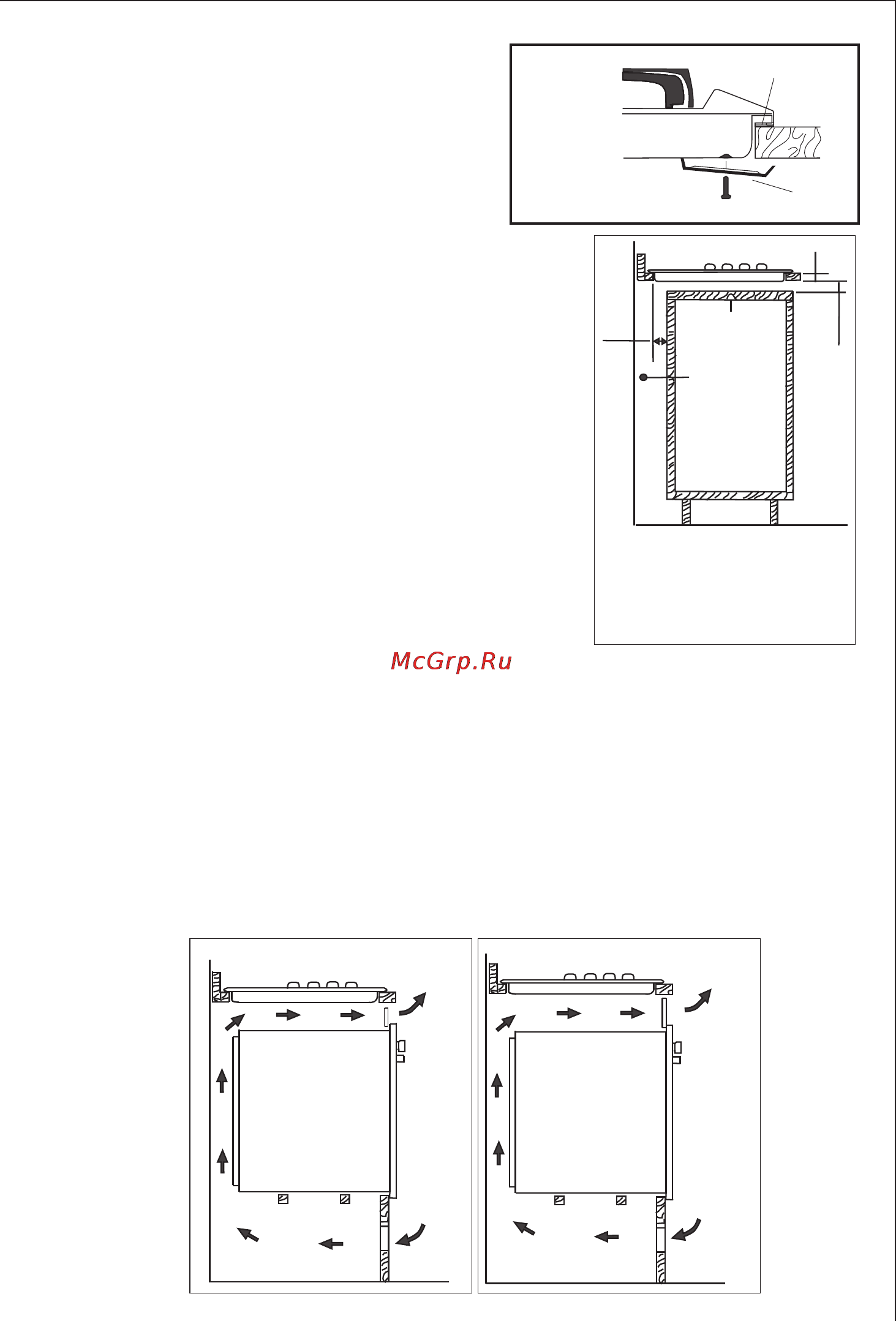

Installation options
On base cabinet with door
When constructing the cabinet, suitable precautions must
be taken to prevent contact with the casing of the hob,
which becomes very hot during operation.The
recommended method for overcoming this problem is
illustrated in fig. 10.
The panel underneath the hob must be easily removable
to allow the hob to be locked in position and released in
case of servicing work.
On base cabinet with oven
The installation compartment must have the dimensions shown in figures 8 and must
have supports to allow satisfactory ventilation.Two possible methods for avoiding
overheating are illustrated in figures 11 and 12.
The electrical connections of the hob and oven must be made separately both for
electrical reasons and to simplify removal of the oven through the front of the cabinet.
Wall cabinets or extractor hoods must be at least 650 mm above the hob.
60
b
a
20
min
Fig. 10
120cm
180 cm
2
2
50 cm
360 cm
2
2
Fig. 11
Fig. 12
15
Place the hob in the opening in the cabinet,
checking that it is centred correctly.
Secure the hob to the cabinet using the
brackets “S” supplied (fig.9).
Fig. 9
30
a) Removable panel
b) Space for connections
A)
gasket
A
S
