Pioneer AVH-P4200DVD [2/8] Connecting the power cord
![Pioneer AVH-P4200DVD [2/8] Connecting the power cord](/views2/1704911/page2/bg2.png)

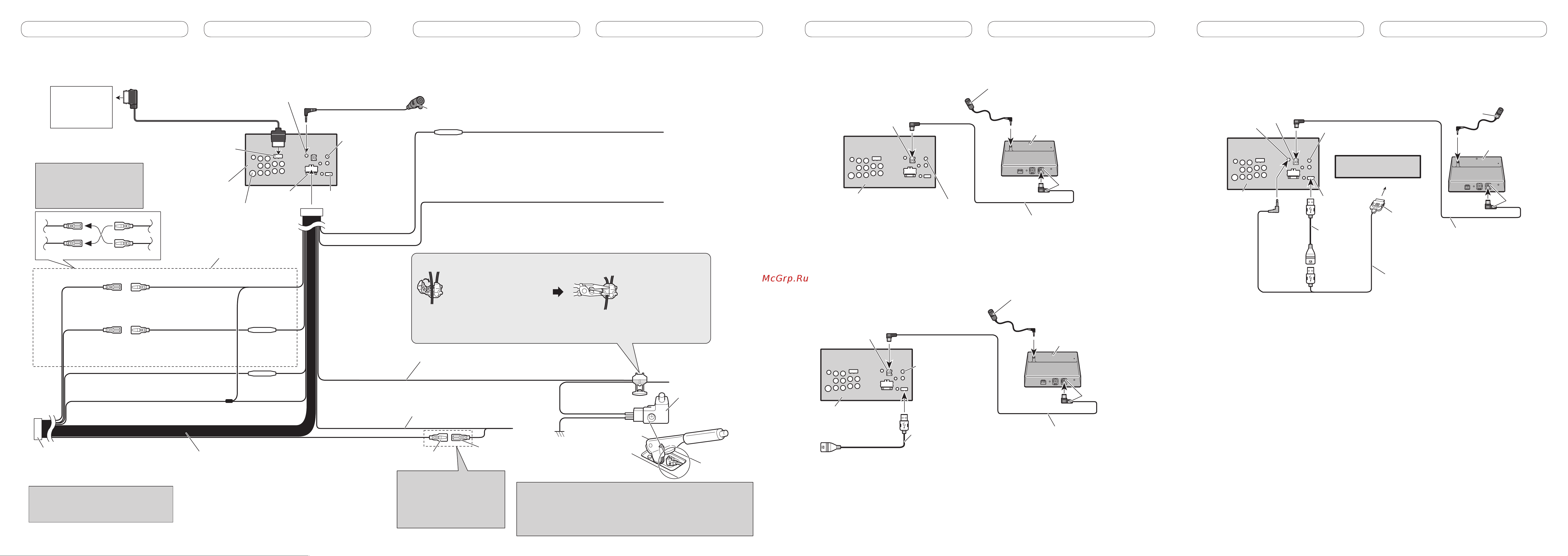

Connecting the power cord
Navigation unit can
be connected
(AVIC-F220 (sold
separately)).
Please contact your dealer to
inquire about the
connectable navigation unit.
Notes:
· Change the initial setting of this unit (refer to the Operation Manual). The
subwoofer output of this unit is monaural.
· When using a subwoofer of 70 W (2 Ω) , be sure to connect with V
iolet and
Violet/black leads of this unit. Do not connect anything to Green and
Green/black leads.
Connection method
1. Clamp
the lead.
2. Clamp
firmly with
needle-nosed pliers.
Note:
· The position of the parking brake switch depends on the vehicle model. For details,
consult the vehicle Owner’s Manual or dealer.
Yellow/black
If you use an equipment with Mute function
, wire this lead to
the Audio Mute lead on that equipment. If not, keep the Audio
Mute lead free of any connections.
Light green
Used to detect the ON/OFF status of the parking brake. This lead
must be connected to the power supply side of the parking brake
switch.
Blue/white
Connect to system control terminal of the power
amp (max. 300 mA 12 V DC).
Blue/white (6*)
Connect to auto
-antenna relay control terminal
(max. 300 mA 12 V DC).
The pin position of the ISO
connector will differ depending on
the type of vehicle. Connect 5* and
6* when P
in 5 is an antenna control
type. In another type of vehicle,
never connect 5* and 6*.
Blue/white (5*)
Ground side
P
ower supply side
Parking brake
switch
Speaker leads
White: F
ront lef
t
White/black: Front left
Gray: Front right
Gray/black: Front right
Green: Rear left or subwoofer
Green/black: Rear left or subwoofer
Violet: Rear right or subwoofer
Violet/black: Rear right or subwoofer
ISO connector
Note:
In some vehicles, the ISO connector may be divided into
two
. In this case, be sure to connect to both connectors.
When you connect the separately sold
multi-channel processor (DEQ-P6600) to this
unit, do not connect anything to the speaker
leads and system remote control (blue/white).
Note:
Depending on the kind of vehicle,
the function of 2* and 4* may be
different. In this case, be sure to
connect 1* to 4* and 3* to 2*.
1*
3*
2*
4*
Y
ellow (2*)
Back-up
(or accessory)
Y
ellow (1*)
Connect to the constant 12 V
supply terminal.
Connect leads of the same
color to each other.
Fuse resistor
Red (4*)
Accessory
(or back-up)
Red (3*)
Connect to terminal controlled by
ignition switch (12 V DC).
Black (chassis ground)
Connect to a clean, paint-free metal location.
This product
(AVH-
P4200DVD
only)
Microphone input (AVH-P3200BT)
Microphone
(AVH-P3200BT only)
Antenna input
Fuse resistor
Orange/white
Connect to lighting switch terminal.
Fuse resistor
Violet/white
Of the two lead wires connected to the back lamp, connect the one
in which the voltage changes when the gear shift is in the
REVERSE (R) position. This connection enables the unit to
sense whether the car is moving forwards or backwards.
4 m
Fuse (10 A)
AUX jack (3.5 ø) (AVH-P4200DVD)
Use a mini plug cable to connect with auxiliary device.
RGB input
Wired remote
input
Hard-wired
remote control
adaptor can be
connected (sold
separately).
Insert the 26 pin cable in the
direction indicated in the figure.
26 pin cable (Supplied with Navigation unit)
Connecting the system (AVH-P4200DVD only)
This product
IP-BUS cable
(Supplied with Bluetooth adapter)
Black
1.5 m
Bluetooth adapter
(e.g. CD-BTB200)
(sold separately)
Microphone
for hands-free phoning
(supplied with Bluetooth adapter)
IP-BUS input
Wired remote input
Hard-wired remote control
adaptor can be connected
(sold separately).
When connecting with supplied USB cable (AVH-P4200DVD
only)
1.5 m
USB cable
(supplied with this unit)
Connect to sparately sold
USB device.
IP-BUS cable
(Supplied with Bluetooth adapter)
Black
Bluetooth adapter
(e.g. CD-BTB200)
(sold separately)
Microphone
for hands-free phoning
(supplied with Bluetooth adapter)
1.5 m
This product
IP-BUS input
Wired remote input
Hard-wired remote control
adaptor can be connected
(sold separately).
When connecting with optional CD-IU200V cable (AVH-
P4200DVD only)
This product
Wired remote input
Hard-wired remote control adaptor
can be connected (sold separately).
iPod with video capabilities
(sold separately)
IP-BUS cable
(Supplied with Bluetooth adapter)
Black
Bluetooth adapter
(e.g. CD-BTB200)
(sold separately)
Microphone
for hands-free phoning
(supplied with Bluetooth adapter)
1.5 m
IP-BUS input
USB input
AUX input (AUX)
Dock connector
Interface cable
(CD-IU200V) (sold separately)
1.5 m
USB cable
Connecting the units Connecting the units Connecting the units Connecting the units
