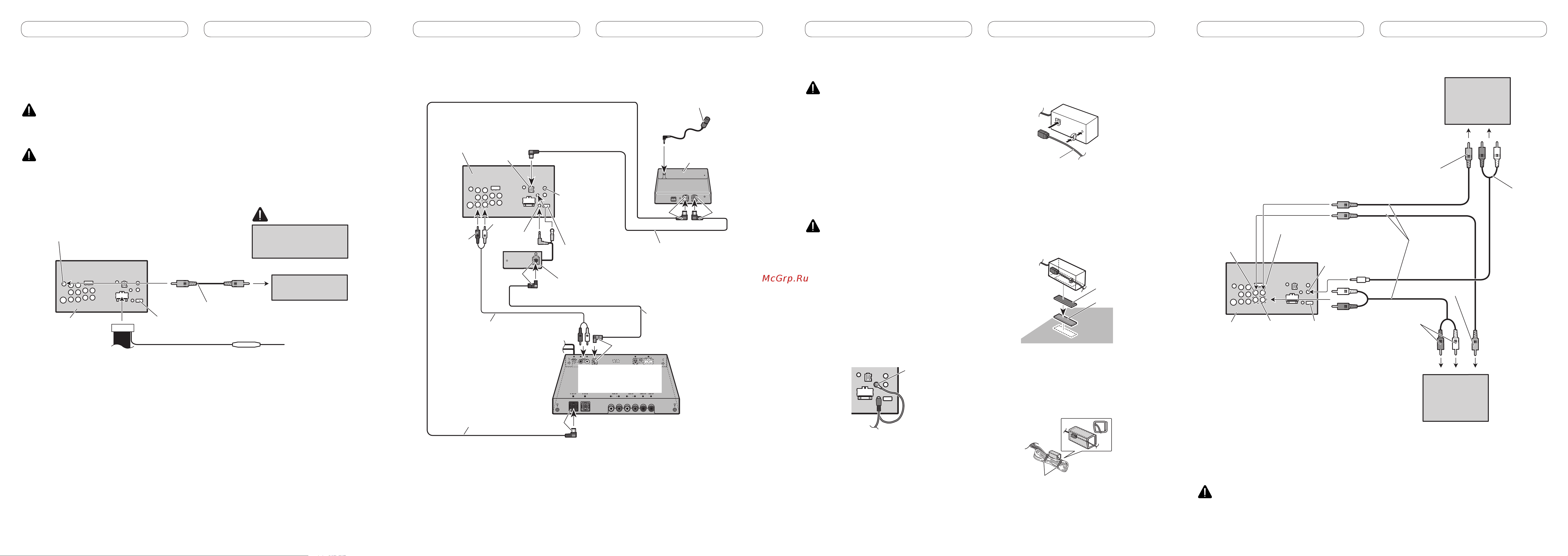

When connecting with a rear view camera
When this product is used with a rear view camera, it is possible to automatically switch from
the video to rear view image when the gear shift is moved to REVERSE (R).
WARNING
USE INPUT ONLY FOR REVERSE OR MIRROR IMAGE REAR VIEW CAMERA. OTHER USE MAY
RESULT IN INJURY OR DAMAGE.
CAUTION
• The screen image may appear reversed.
• The rear view camera function is to be used as an aid for backing into a tight parking spot. Do
not use this function for entertainment purposes.
• Objects in the rear view may appear closer or more distant than they actually are.
To video output
Rear view camera
(sold separately)
Rear view camera input (R.C IN)
Violet/white
Of the two lead wires connected to the back lamp, connect the one
in which the voltage changes when the gear shift is in the
REVERSE (R) position. This connection enables the unit to
sense whether the car is moving forwards or backwards.
You must use a camera
which outputs mirror
reversed images.
CAUTION
Fuse resistor
This product
RCA cable (sold separately)
(AVH-P4200DVD only)
• It is necessary to set Camera Polarity properly in System when connecting the rear view camera.
When connecting with a multi-channel processor
IP-BUS cable (supplied with
multi-channel processor)
RCA cable (supplied with
multi-channel processor)
Optical cable
(supplied with
multi-channel processor)
IP-BUS cable
(Supplied with Bluetooth adapter)
Black
Bluetooth adapter
(e.g. CD-BTB200)
(sold separately)
(AVH-P4200DVD only)
Microphone
for hands-free phoning
(supplied with Bluetooth adapter)
Black
Optical
output
Optical cable connection box
(supplied with multi-channel processor)
To SWL
To SWR
Blue
Blue
Multi-channel processor
(DEQ-P6600)
(sold separately)
This product
IP-BUS input
Black
Wired remote input
Hard-wired remote
control adaptor
can be connected
(sold separately).
(A
VH-P4200DVD only)
Connecting and installing the optical cable connection box
WARNING
• Avoid installing the optical cable connection
box in locations where the operation of safety
devices such as airbags is prevented by this
unit. Otherwise, there is a danger of a fatal
accident.
• Avoid installing the optical cable connection
box in locations where the operation of the
brake may be prevented. Otherwise, it may
result in a traffic accident.
• Fix the optical cable connection box securely
with the hook and loop fastener or lock tie. If
the unit is loose, it disturbs driving stability,
which may result in a traffic accident.
CAUTION
• Install this unit using only the parts supplied with
this unit. If other parts are used, this unit may be
damaged or could dismount itself, which leads to
an accident or other problems.
• Do not install this unit near the doors where
rainwater is likely to be spilled on the unit. Incursion
of water into the unit may cause smoke or fire.
Connecting the optical cable
1. Connect the optical cable and ground
lead to the main unit.
Connect the optical cable so that it does not
protrude from the main unit, as shown in the
illustration. Fasten the ground lead to the
protrusion on the back of the main unit.
Screw
2. Connect the optical cable to the optical
cable connection box.
optical cable
Installing the optical cable
connection box
• When installing the optical cable
connection box with the hook and loop
fastener.
Install the optical cable connection box
using the hook and loop fastener in the
ample space of the console box.
Hook fastener
Loop fastener
• When installing the optical cable
connection box with the lock tie.
Wrap the optical cable and connection box with
the protection tape and fasten with the power
code using the lock tie.
Wrap with the protection tape
Fasten with the lock tie
When connecting the external video component and the display
External video
component (sold
separately)
Audio input
(L IN, R IN)
Display with RCA
input jacks (sold
separately)
To video input
To video output
To audio outputs
To audio input
This product
Mini pin plug cable
(sold separately)
RCA cables
(sold separately)
(AVH-P4200DVD only)
Rear audio output
(REAR AUDIO OUT)
Rear monitor output (V OUT)
Video input (V IN)
• It is necessary to change AV Input in System when connecting the external video component.
When using a display connected to rear video output
This product’s rear video output and rear audio output are for connection of a display to
enable passengers in the rear seats to watch the DVD, etc.
WARNING
Never install the display in a location where it is visible to the driver while driving.
