Note
• Check all connections and systems before final
installation.
• Do not use unauthorized parts as this may cause
malfunctions.
• Consult your dealer if installation requires drilling of
holes or other modifications to the vehicle.
• Do not install this unit where:
— it may interfere with operation of the vehicle.
— it may cause injury to a passenger as a result of
a sudden stop.
• Do not install the display where it may (i) obstruct
the driver’s vision, (ii) impair the performance of
any of the vehicle’s operating systems or safety
features, including air bags, hazard lamp buttons or
(iii) impair the driver’s ability to safely operate the
vehicle.
• The semiconductor laser will be damaged if it
overheats. Install this unit away from hot places
such as near the heater outlet.
• Optimum performance is obtained when the unit is
installed at an angle of less than 30°.
• When installing, to ensure proper heat dispersal
when using this unit, make sure you leave ample
space behind the rear panel and wrap any loose
cables so they are not blocking the vents.

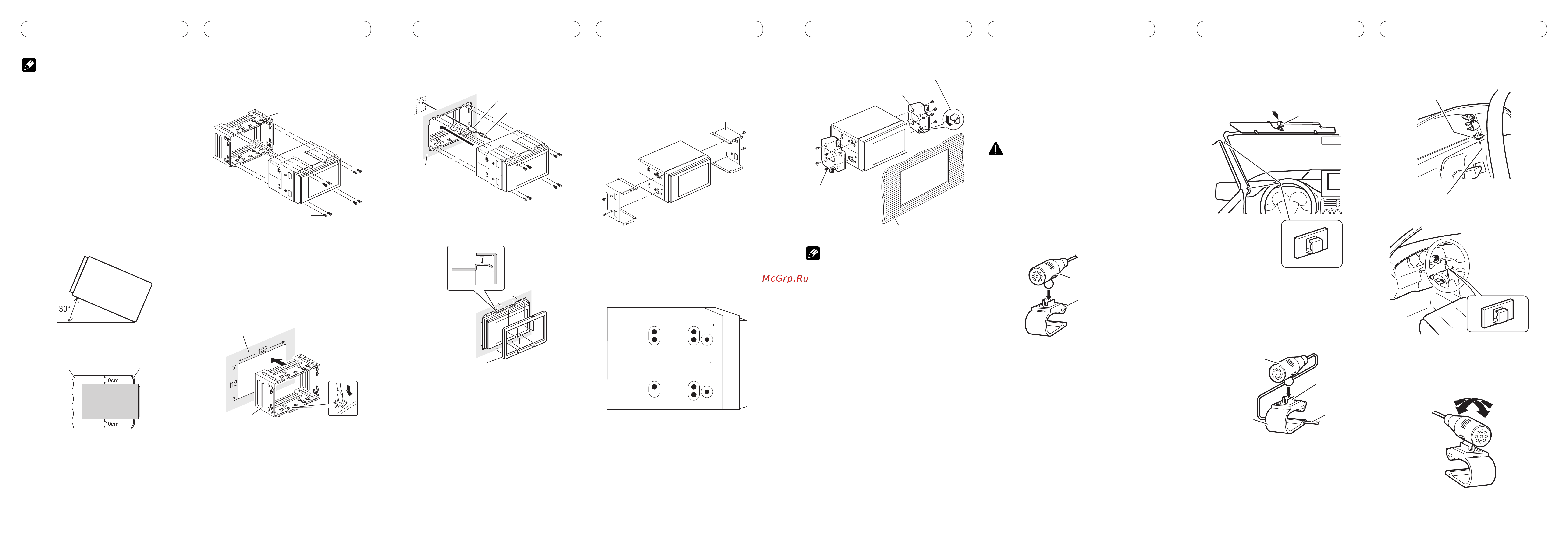

Before installing this unit
•
Remove the holder.
Loosen the screws (3 × 6 mm) to remove the
holder.
Screw (3 × 6 mm)
(Supplied with this unit)
Holder
(Supplied with this unit)
Installation with the holder
and side bracket
1. Install the holder into the dashboard.
After inserting the holder into the dashboard,
select and bend the tabs appropriate to the
thickness of the dashboard material. (Install
this unit as firmly as possible using the top and
bottom tabs. To secure this unit, bend the tabs
90 degrees.)
Dashboard
Holder(Supplied with this unit)
2. Install this unit and fasten the screws.
Rubber bush
(Supplied with this unit)
Double-ended screw
(Supplied with this unit)
Screw (3 × 6 mm)
(Supplied with this unit)
Dashboard
3. Attach the trim ring.
Trim ring
(Supplied with this unit)
Installation using the screw
holes on the side of the unit
1. Remove the side brackets.
Side bracket
(Supplied with this unit)
Screw for fixing the side
bracket (5 × 9 mm)
(Supplied with this unit)
2. Fastening the unit to the factory
radio-mounting bracket.
Position the unit so that its screw holes are
aligned with the screw holes of the bracket, and
tighten the screws at 3 or 4 locations on each
side.
Factory radio mounting bracket
If the pawl gets in the way,
bend it down.
Dashboard or console
Tapping screw
(5 × 8 mm)
Note
In some types of vehicles, discrepancy may
occur between the unit and the dashboard. If this
happens, use the supplied frame to fill the gap.
Installing the microphone
(AVH-P3200BT only)
Installation notes
Install the microphone in a position and
orientation that will enable it to pick up the voice
of the person operating the system.
CAUTION
• It is extremely dangerous to allow the microphone
lead to become wound around the steering column
or gearstick. Be sure to install the unit in such a
way that it will not obstruct driving.
When installing the microphone
on the sun visor
1. Install the microphone on the
microphone clip.
Microphone
Microphone clip
Microphone base
2. Install the microphone clip on the sun
visor.
• With the sun visor up, install the microphone
clip. (Lowering the sun visor reduces the voice
recognition rate.)
Microphone clip
Clamp
Use separately sold
clamps to secure the
lead where necessary
inside the vehicle.
When installing the microphone
on the steering column
1. Install the microphone on the
microphone clip.
Microphone
Microphone clip
Fit the
microphone lead
into the groove.
• Microphone can be installed without using
microphone clip. In this case, detach the
microphone base from the microphone clip. To
detach the microphone base from microphone
clip, slide the microphone base.
Installation Installation Installation Installation
2. Install the microphone clip on the
steering column.
Double-sided tape
Install the microphone clip on the
rear side of the steering column.
Clamp
Use separately sold
clamps to secure the
lead where necessary
inside the vehicle.
Adjusting the microphone
angle
The microphone angle can be adjusted.
Leave ample space
Dashboard
