Biostar B250ET2 Версия 6.x [43/71] 4 后置面板接口
![Biostar B250ET2 Версия 6.x [43/71] 4 后置面板接口](/views2/1707905/page43/bg2b.png)
第一章: 主板介绍 | 5
B250ET2

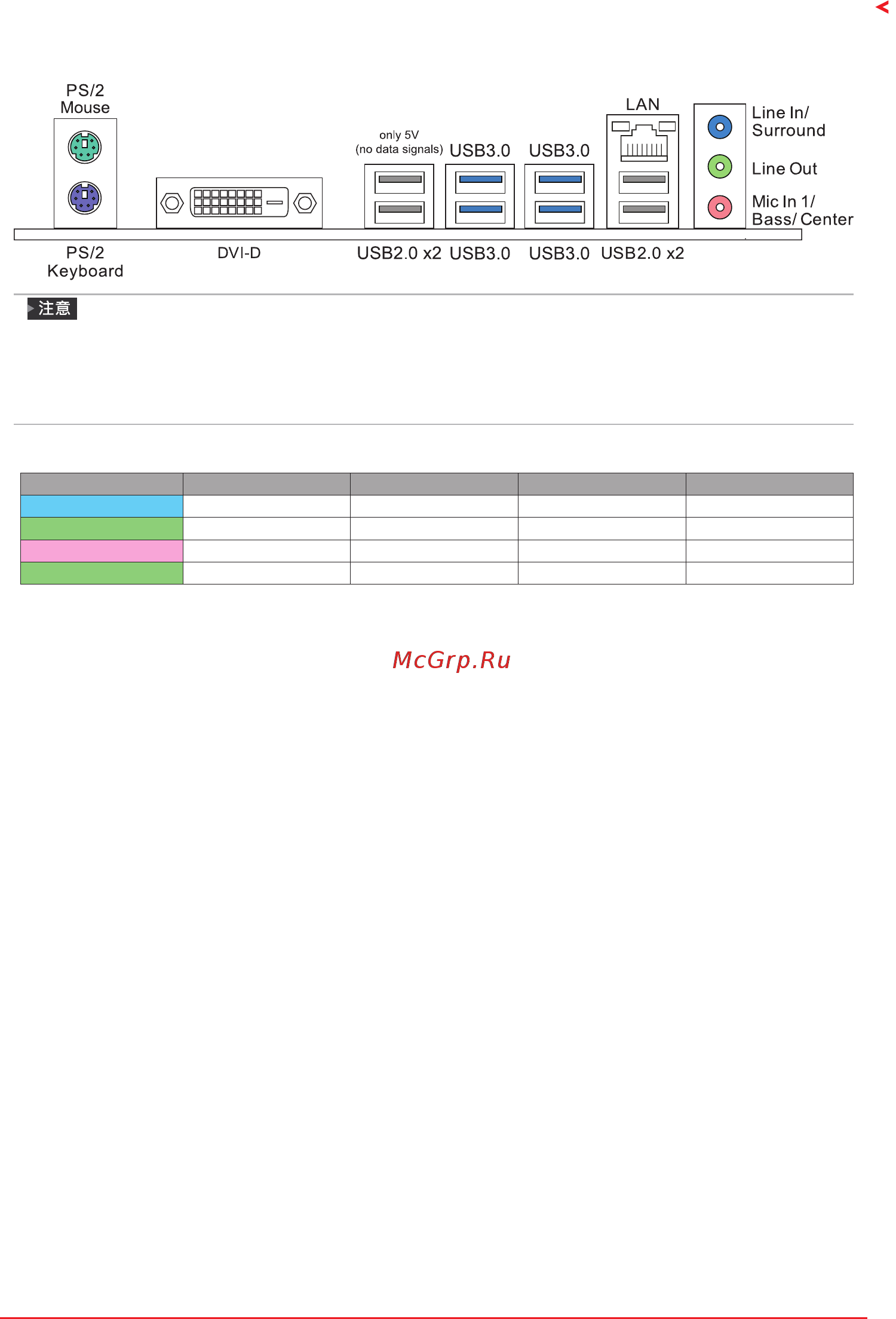

1�4 后置面板接口
»
仅Intel集成显卡处理器支持DVI-D端口。
»
最 高 分 辨 率：
DVI-D: 1920 x 1200 @60Hz
»
当使用前置HD音频插孔并插入耳机/麦克风时，后置声音将自动禁用。
2/ 4/ 5�1/ 7�1-声道模式配置
音频接口 2 声道模式 4 声道模式 5�1 声道模式 7�1 声道模式
蓝色 (背部面板) 线性输入 线性输入 线性输入 侧边声道输出
绿色 (背部面板) 线性输出 前置声道输出 前置声道输出 前置声道输出
粉红色 (背部面板) 麦克风输入 麦克风输入 中置/重低单声道输出 中置/重低单声道输出
草绿色 (前置面板) 耳机 后置声道输出 后置声道输出 后置声道输出
