Biostar B250ET2 Версия 6.x [55/71] 8 led灯

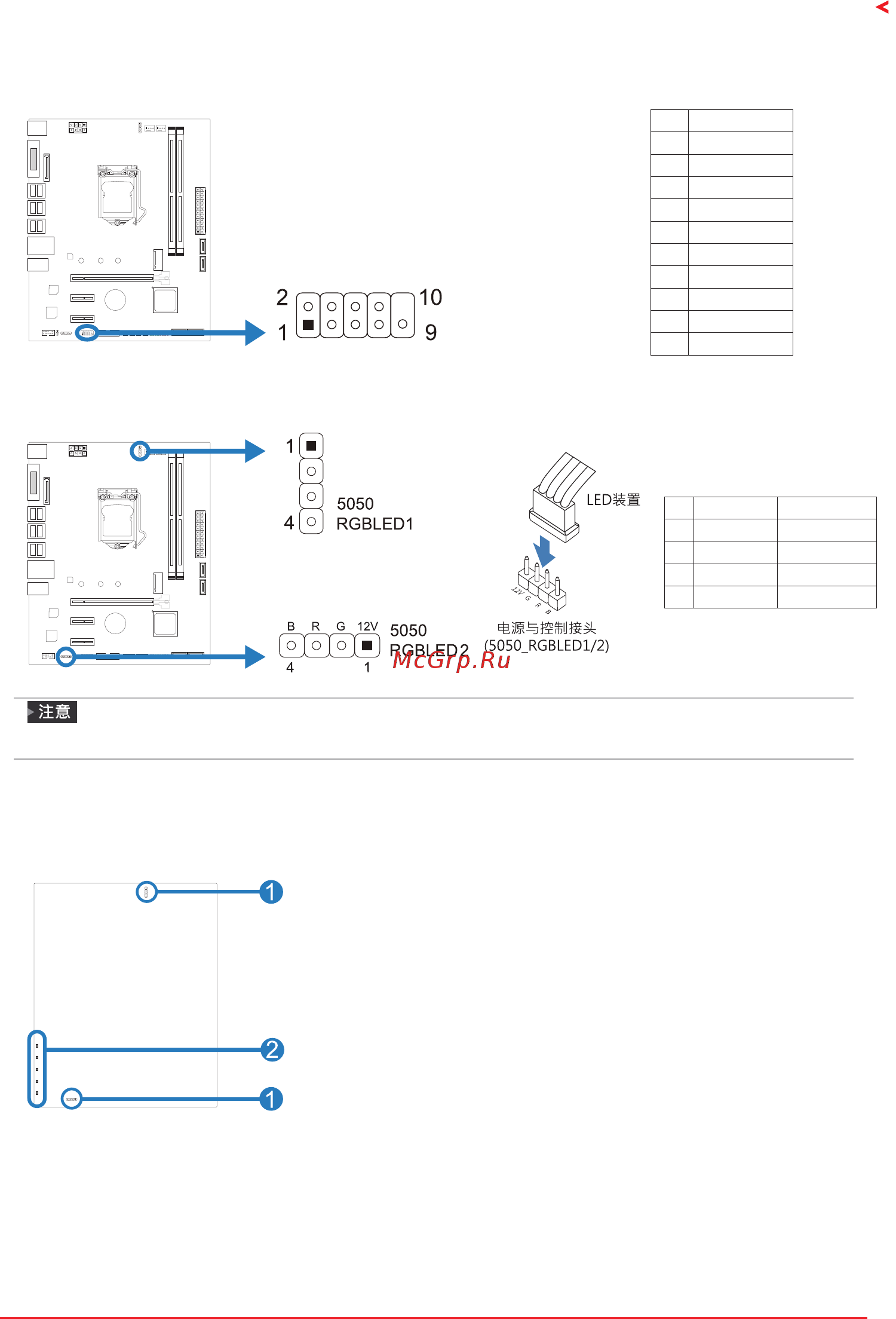

第二章: 硬件安装 | 17

B250ET2

COM1:串行端口

此主板有一个串行端口可接出RS-232接头

针定义

1 载波检测

2 接收资料

3 发送数据

4 资料终端备妥

5 接地信号

6 资料集备妥

7 输送要求

8 清除发送

9 振铃指示器

10 Key

5050_RGBLED1/2: RGB LED装置 (5050 SMD) 接头

此接头提供12V电源与RGB控制讯号，可连接RGB LED装置（5050 SMD）。

针电缆颜色定义

1 12V (黑色) VCC12

2 G (绿色) LED_GREEN

3 R (红色) LED_RED

4 B (蓝色) LED_BLUE

确保正确將针脚连接到LED装置，错误的连接可能会损坏您的LED装置或主板。

2�8 LED灯

LED灯

下面的LED灯由RACING GT软件控制。请参考3.3章节的软件设置。

1 RGB LED 接头

2. 板载LED灯（x5）
