Chapter 2: Hardware installaon | 13

B360GT5S

PCIE-M2_2: M.2 (Key M) Slot (x2 speed)

• The M.2 slot supports M.2 Type 2242/2260/2280 SSD module. When installing M.2 SSD

module, please place the screw and hex pillar to correct posion.

• Support M.2 SATA III (6.0 Gb/s) module and M.2 PCI Express module up to Gen3 x2

(16Gb/s)

Note



WhenusingSATASSDmoduleonPCIE-M2_2slot,theSATA3_1connectorwillbedisabled.



PEX16_SB_1runinx2speedwhenPEX1_SB_2orPEX1_SB_3isoccupied.

Install an Expansion Card

You can install your expansion card by following steps:

• Read the related expansion card’s instrucon document before install the expansion

card into the computer.

• Remove your computer’s chassis cover, screws and slot bracket from the computer.

• Place a card in the expansion slot and press down on the card unl it is completely

seated in the slot.

• Secure the card’s metal bracket to the chassis back panel with a screw.

• Replace your computer’s chassis cover.

• Power on the computer, if necessary, change BIOS sengs for the expansion card.

• Install related driver for the expansion card.

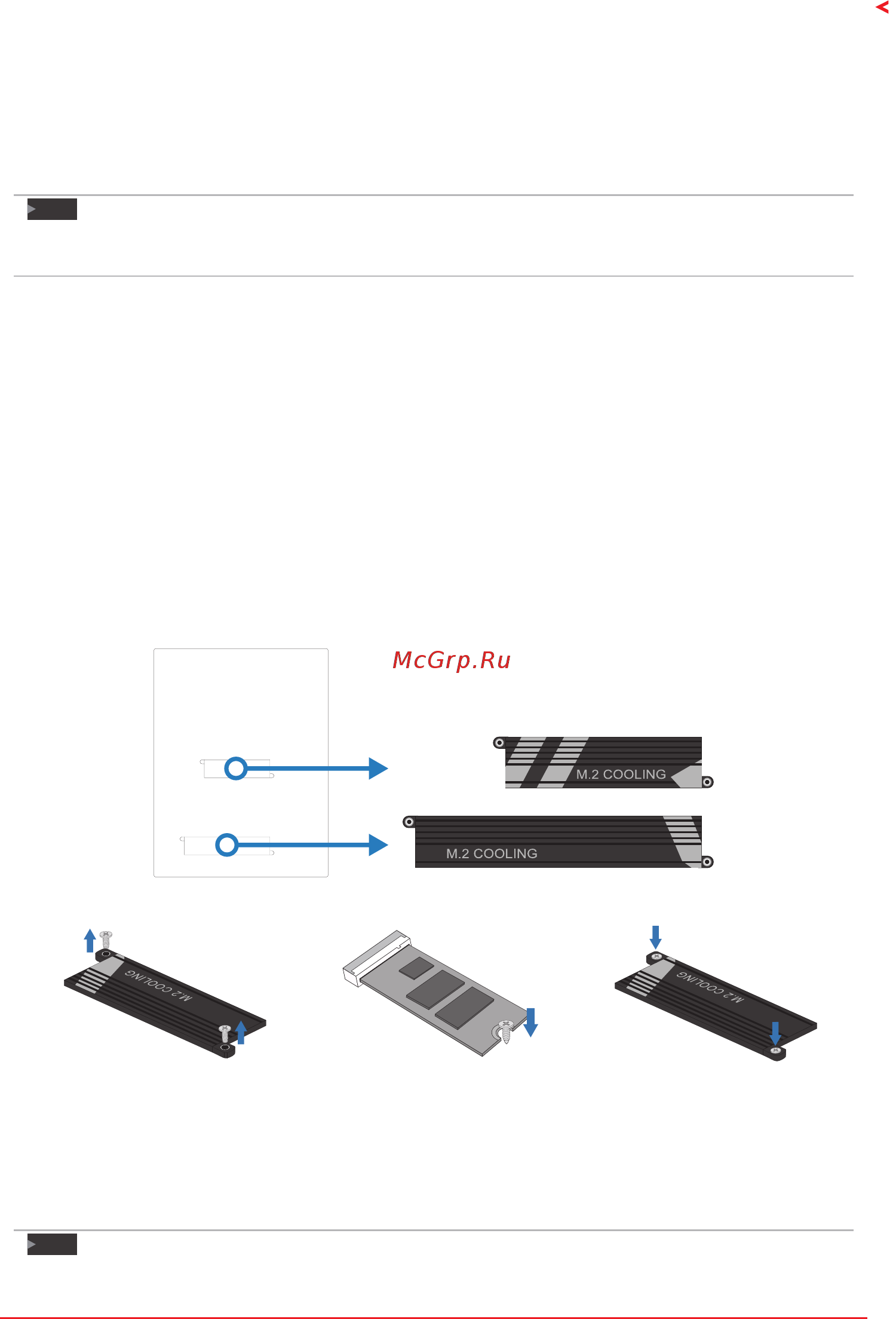

Install M.2 COOLING Heatsink

Steps of Removing the M.2 COOLING Heatsink:

Step 1:

There are two screws on the edge

of heatsink and unscrew them

before insert the M.2 SSD card.

Step 2:

Insert M.2 SSD card onto the

M.2 slot and screw it onto the

motherboard.

Step 3:

Aer installing the M.2 SSD card,

place the M.2 COOLING Heatsink

over the M.2 slot and fasten the

screws to x the heatsink onto

the motherboard.

Note



PleasefollowtheinstallaoninstruconsofM.2COOLINGHeatsinkandremovetheM.2COOLING

HeatsinktoinstalltheM.2SSDcardontoyourmotherboard.
