第一章: 主板介绍 | 5
B365GTQ

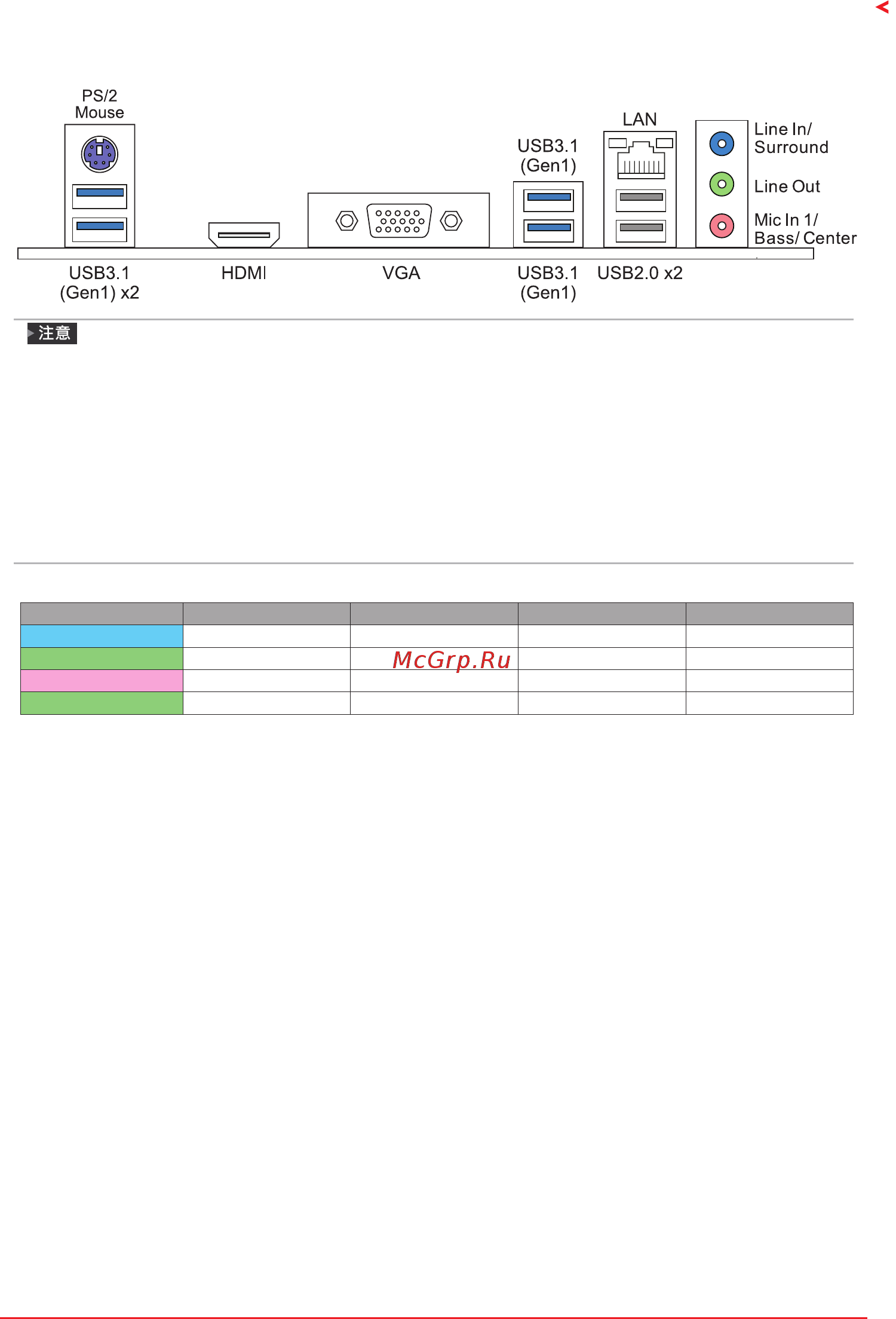

1�4 后置面板接口
»
仅Intel集成显卡处理器支持HDMI/VGA端口。
»
最 高 分 辨 率：
HDMI: 4096 x 2160 @24Hz，符合HDMI 1.4规范
VGA: 1920 x 1200 @60Hz
»
当使用前置HD音频插孔并插入耳机/麦克风时，后置声音将自动禁用。
»
主板仅同时支持2个板载显示端口输出。显示输出的配置可以在英特尔图形驱动程序工具中进行
选 择。
»
配置8声道音频输出，您必须使用HD前面板音频模块，才能够通过O.S.多声道音频功能音频工
具。
2/ 4/ 5�1/ 7�1-声道模式配置
音频接口 2 声道模式 4 声道模式 5�1 声道模式 7�1 声道模式
蓝色 (背部面板) 线性输入 线性输入 线性输入 侧边声道输出
绿色 (背部面板) 线性输出 前置声道输出 前置声道输出 前置声道输出
粉红色 (背部面板) 麦克风输入 麦克风输入 中置/重低单声道输出 中置/重低单声道输出
草绿色 (前置面板) 耳机 后置声道输出 后置声道输出 后置声道输出
