第二章: 硬件安装 | 17
B365GTQ

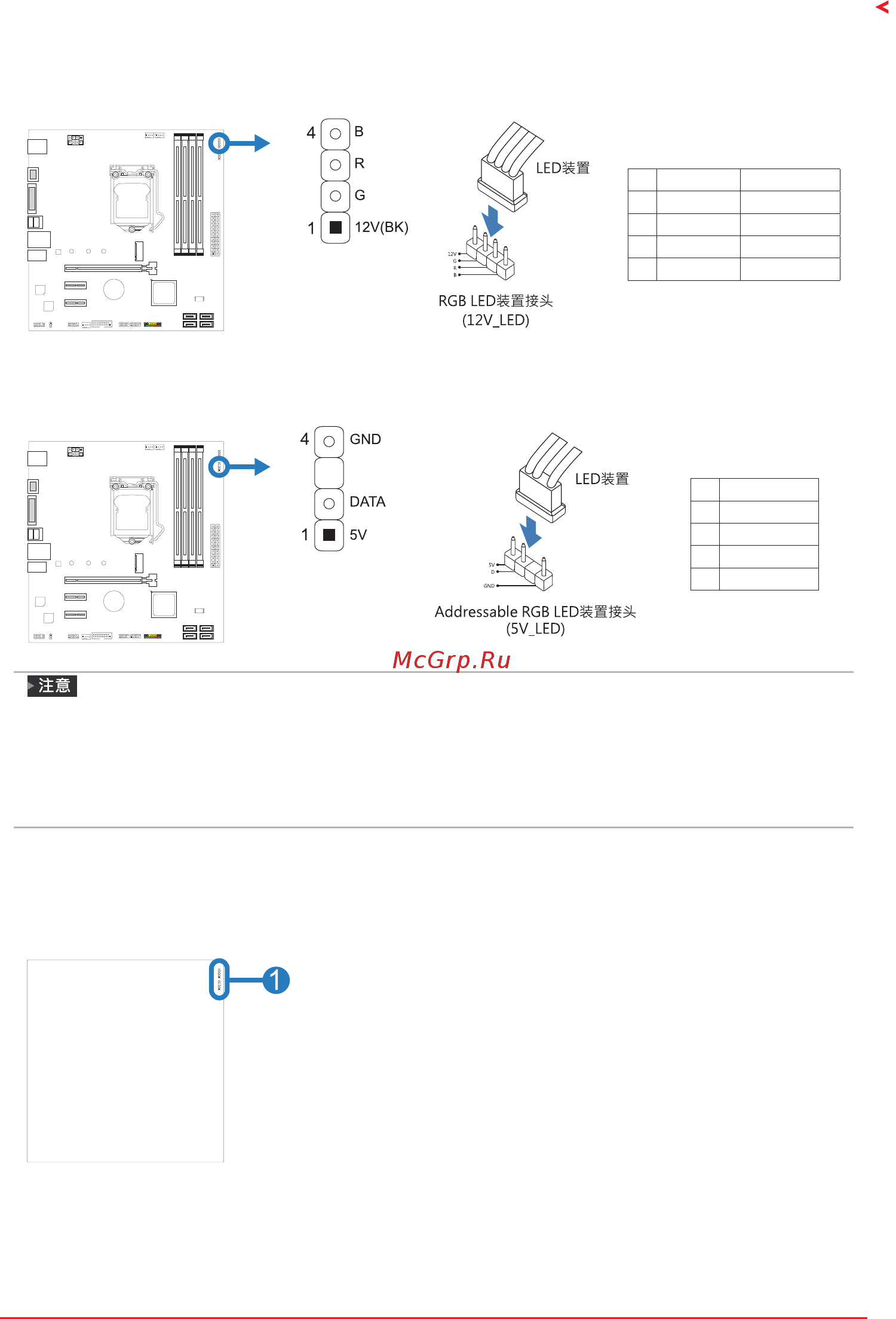

12V_LED: RGB LED装置 (5050 SMD) 接头
此接头提供12V电源与RGB控制讯号，可连接RGB LED装置 (5050 SMD)。
针 电缆颜色 定义
1 12V (黑色) VCC12
2 G (绿色) LED_GREEN
3 R (红色) LED_RED
4 B (蓝色) LED_BLUE
5V_LED: Addressable RGB LED装置 (WS2818B) 接头
此接头提供5V电源与数据控制讯号，可连接RGB LED装置 (WS2818B)。
针 定义
1 VCC5
2 数据
3 N/A
4 接地
»
确保正确將针脚连接到LED装置，错误的连接可能会损坏您的LED装置或主板。
»
12V_LED接头支持5050 RGB LED灯条，最大输出功率为3A（12V）。
»
5V_LED接头最多可支持300个LED WS2818B Addressable RGB LED灯条，最大输出功率为3A
（ 5 V ）。
»
请使用Vivid LED DJ软件控制LED。 有关详细的软件设置信息，请参阅第3.3章。
2�8 LED灯
LED灯
下面的LED灯由RACING GT EVO软件控制。请参考3.3章节的软件设置。
1. RGB LED 裝置接头 (5V/12V)
