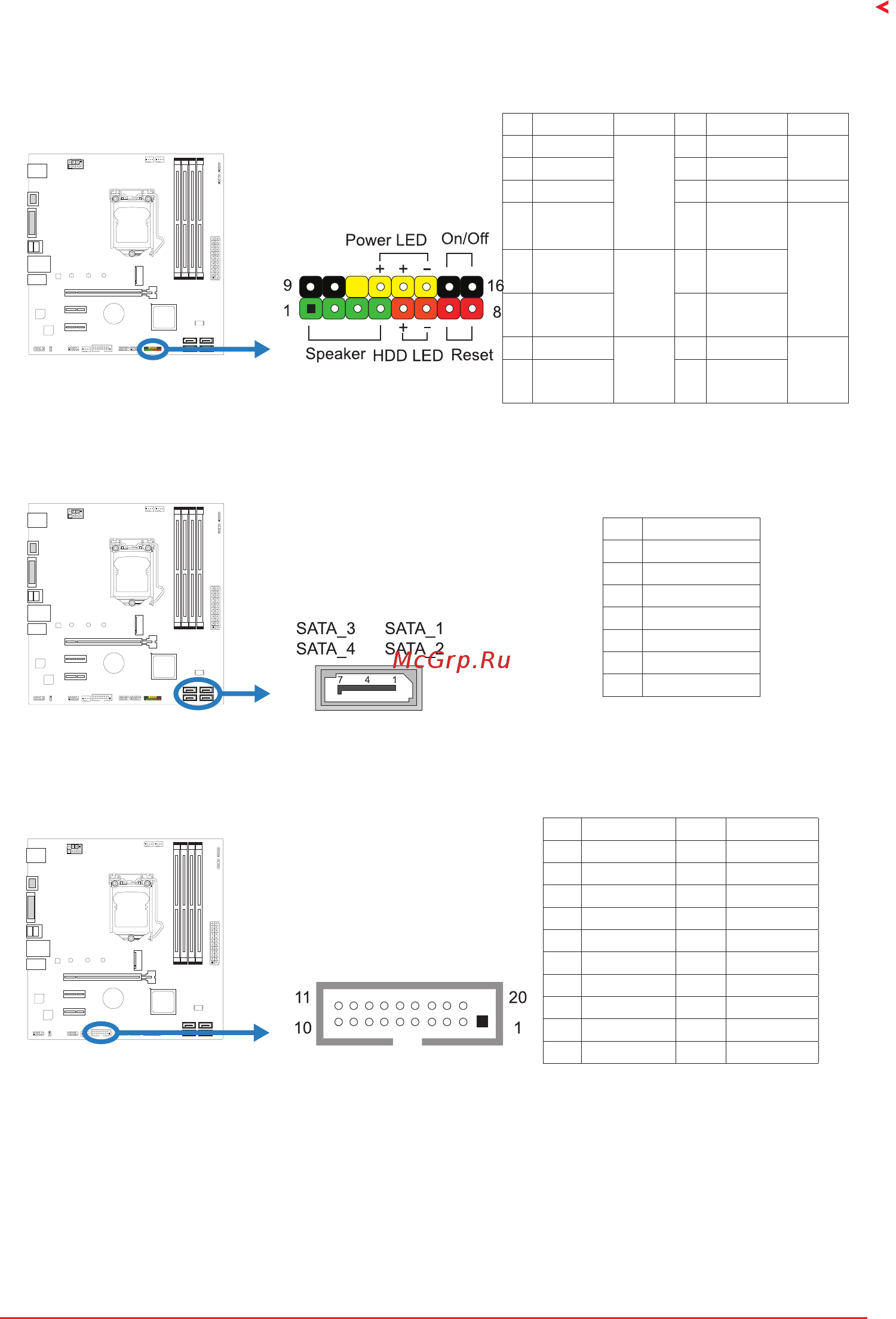

第二章: 硬件安装 | 15
B365GTQ
PANEL1: 前置面板接头
此16针脚接口包含开机，重启，硬盘指示灯，电源指示灯和扬声器接口。
针 定义 功能 针 定义 功能
1 +5V
扬声器
接口
2 N/A
N/A
3 N/A 4 N/A
5 N/A 6 N/A N/A
7 扬声器 8
Power
LED (+)
电源指
示灯
9
HDD LED
(+)
硬盘指
示灯
10
Power
LED (+)
11
HDD LED
(-)
12
Power
LED (-)
13 接地
重启按
钮
14 电源按钮
开机按
钮
15
Reset
control
16 接地
SATA_1/_2/_3/_4: 串行ATA接口
此接口通过SATA数据线连接SATA硬盘。
针 定义
1 接地
2 TX+
3 TX-
4 接地
5 RX-
6 RX+
7 接地
JFRONT_USB3_1: 前置面板USB 3�1(Gen1)接头
PC前置面板支持附加的USB数据线，也可连接即插即用外围设备。
针 定义 针 定义
1 VBUS0 11 D2+
2 SSRX1- 12 D2-
3 SSRX1+ 13 接地
4 接地 14 SSTX2+
5 SSTX1- 15 SSTX2-
6 SSTX1+ 16 接地
7 接地 17 SSRX2+
8 D1- 18 SSRX2-
9 D1+ 19 VBUS1
10 ID 20 Key
