10 | 第二章: 硬件安装
<类型B>

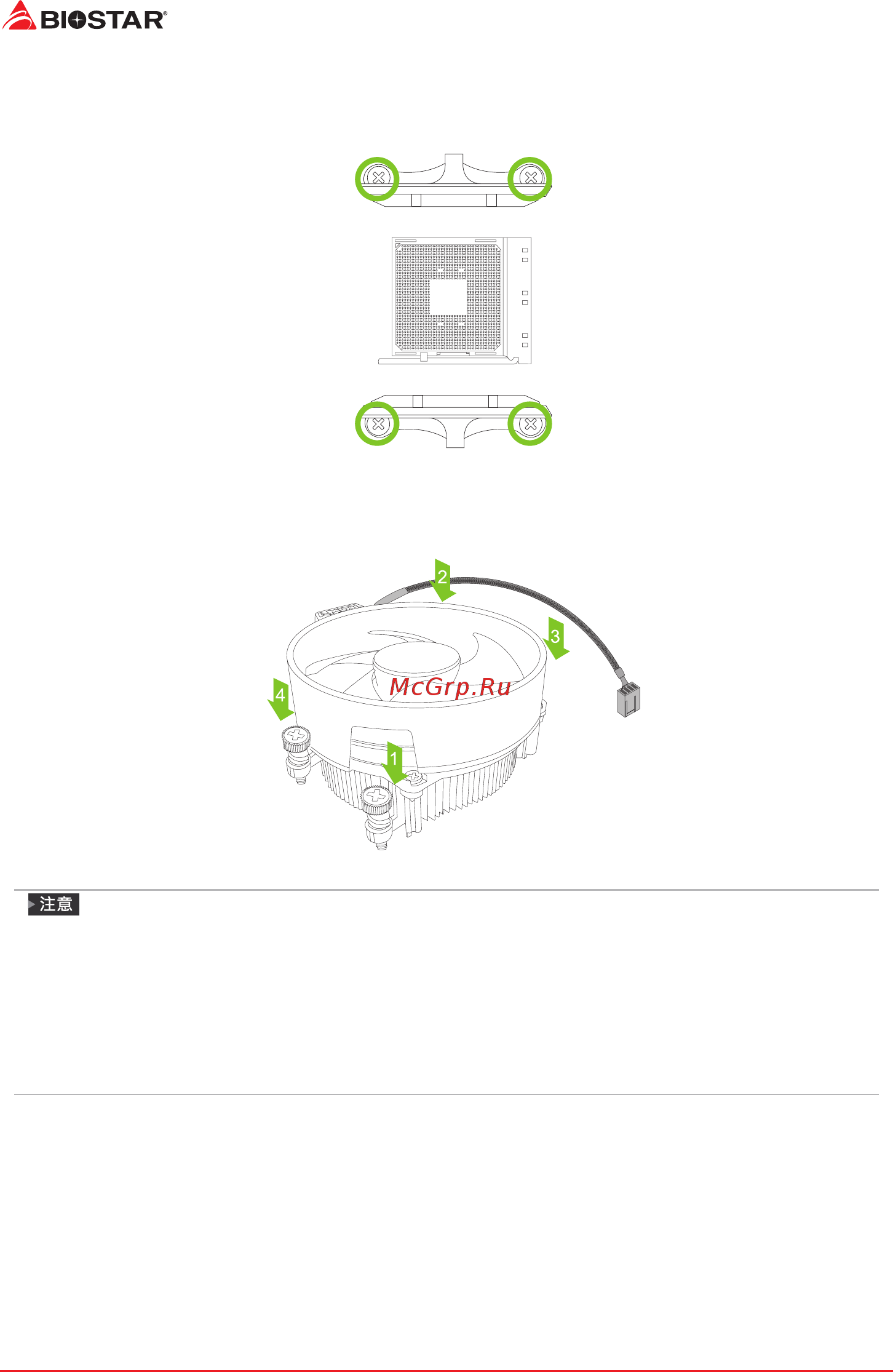

步骤 1: 取下主板上的散热片和风扇组件支架, 并保留散热风扇的铁背板于主板下方。
步骤2: 将散热片和风扇组件放置于CPU上方，调整方向使风扇电缆最靠近CPU风扇连接
器，参照示意图之顺序将螺丝锁入，完成散热片风扇的安装。
»
请 务 必连 接 C P U 风 扇 接 口。
»
请参照CPU散热片的安装手册获取正确的安装信息。
»
AMD Wraith Stealth CPU散热器仅与不带散热器的DDR4模块兼容 (内存高度45-70mm内可
安装，但可能会触碰到散热器)。
»
AMD Wraith Spire CPU散热器与多数带有散热片的DDR4模块兼容 (86mm)。
»
AMD Wraith Max CPU散热器仅与不带散热器的DDR4模块兼容 (内存高度45-70mm内可安
装，但可能会触碰到散热器)。
