Biostar X370GTN Версия 5.x [54/72] Jfront_usb3_1 前置面板usb 3 1 gen1 5gb s 接头

16 | 第二章: 硬件安装

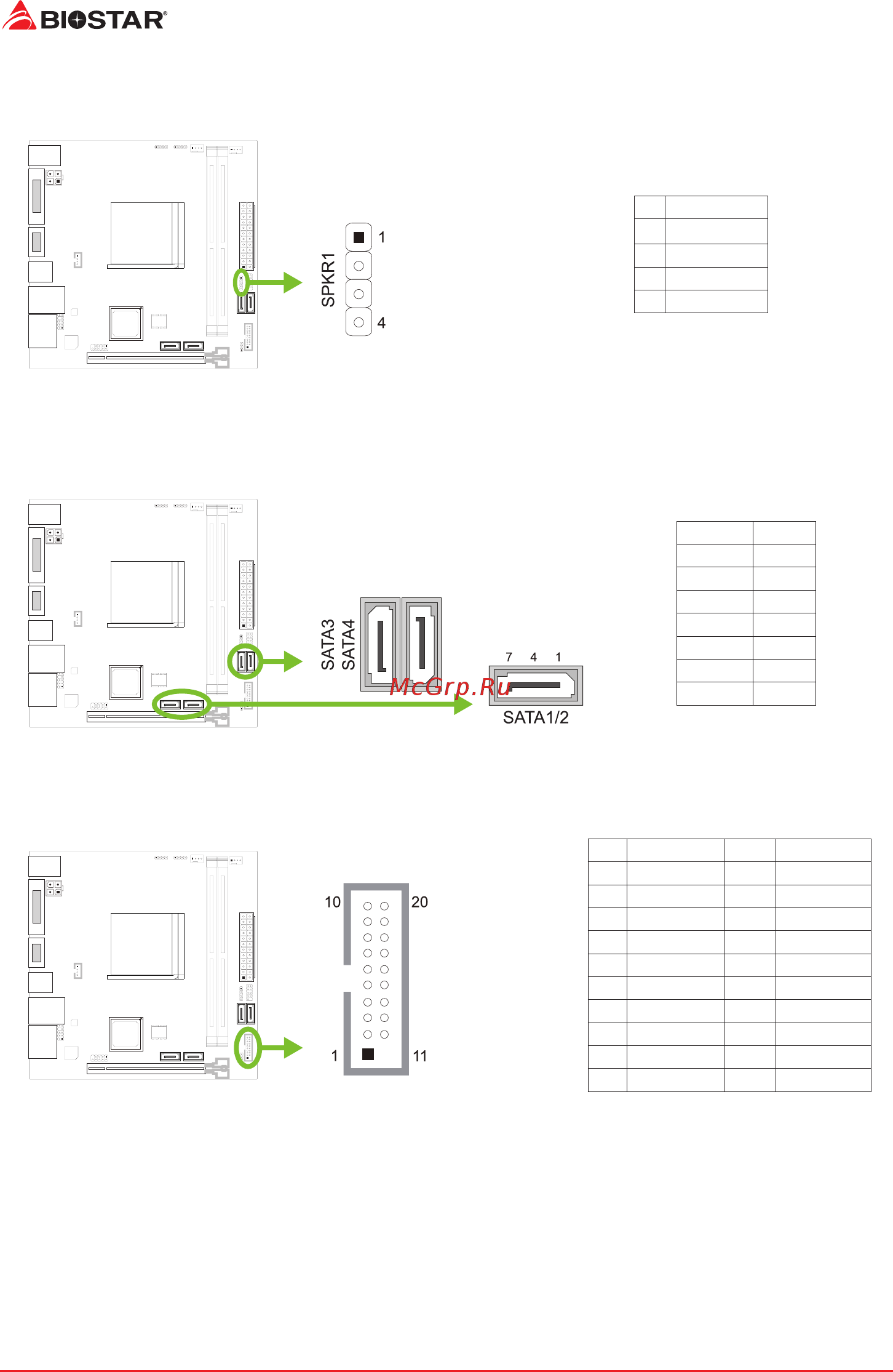

SPKR1: 扬声器接头

此4针脚接口连接扬声器。

针定义

1 +5V

2 N/A

3 N/A

4 扬声器

SATA_1~SATA4: 串行ATA 6�0 Gb/s 接口

此接口通过SATA数据线连接SATA硬盘。

针定义

1 接地

2 TX+

3 TX-

4 接地

5 RX-

6 RX+

7 接地

JFRONT_USB3_1: 前置面板USB 3�1 Gen1 (5Gb/s)接头

PC前置面板支持附加的USB数据线，也可连接即插即用外围设备。

针定义针定义

1 VBUS0 11 D2+

2 SSRX1- 12 D2-

3 SSRX1+ 13 接地

4 接地 14 SSTX2+

5 SSTX1- 15 SSTX2-

6 SSTX1+ 16 接地

7 接地 17 SSRX2+

8 D1- 18 SSRX2-

9 D1+ 19 VBUS1

10 ID 20 Key
