第二章: 硬件安装 | 15
B350GTN / X370GTN
2�7 接口和插槽

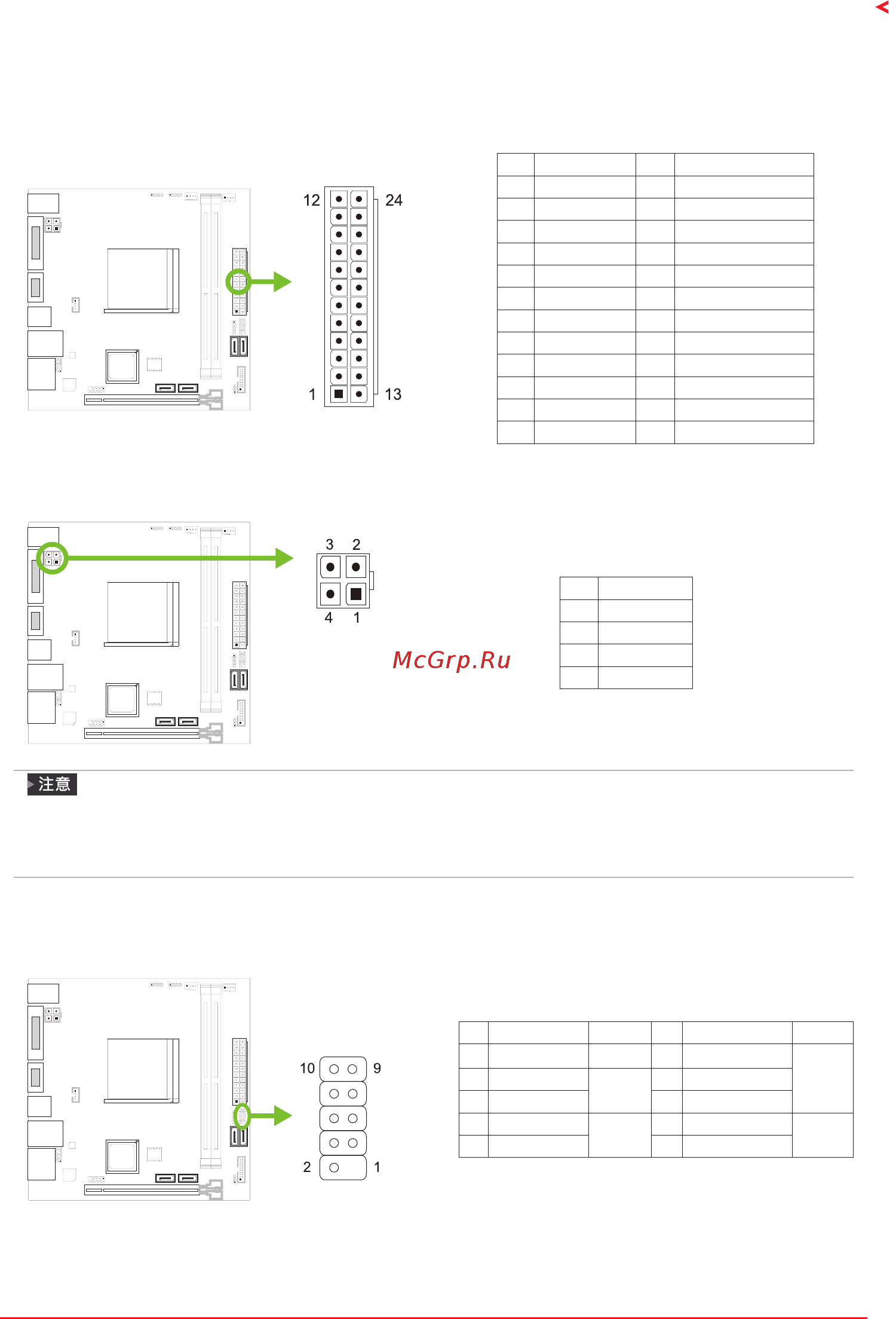

ATXPWR1: ATX电源接口
为了更好的兼容性，我们建议使用标准的ATX24-pin电源供应此接口的电源。
针 定义 针 定义
13 +3.3V 1 +3.3V
14 -12V 2 +3.3V
15 接地 3 接地
16 PS_ON 4 +5V
17 接地 5 接地
18 接地 6 +5V
19 接地 7 接地
20 NC 8 PW_OK
21 +5V 9 唤醒电压+5V
22 +5V 10 +12V
23 +5V 11 +12V
24 接地 12 +3.3V
ATXPWR2: ATX电源接口
此接口给CPU电路提供+12V电压。
针 定义
1 +12V
2 +12V
3 接地
4 接地
»
开机前，请确保ATXPWR1和ATXPWR2接口都已插上电源。
»
电压不足可能导致系统不稳或者外围设备不能正常运行。当配置使用大功率设备的系统时，建议
您 使 用 带 有 大 功 率 输 出 的 电 源。
PANEL1: 前置面板接头
此10针脚接口包含开机，重启，硬盘指示灯和电源指示灯。
针 定义 功能 针 定义 功能
1 N/A 2 Power LED (+)
电源指
示灯
3 HDD LED(+)
硬盘指
示灯
4 Power LED (+)
5 HDD LED(-) 6 Power LED (-)
7 接地
重启按
钮
8 电源按钮
开机按
钮
9 重启 10 接地
