第一章: 主板介绍 | 5
Hi-Fi H170S3H / Hi-Fi B150S3H

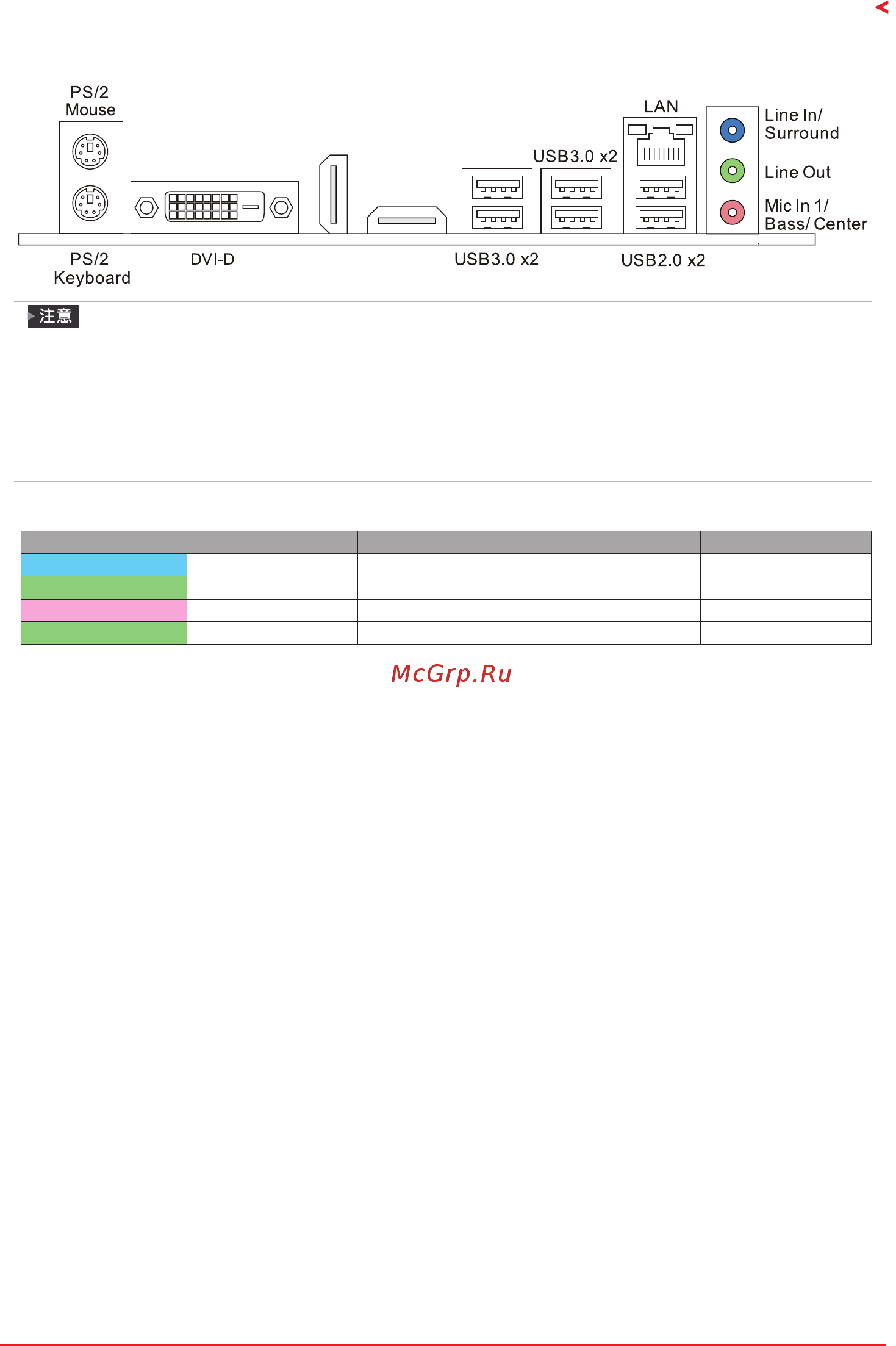

1�4 后置面板接口
HDMI HDMI
»
仅Intel集成显卡处理器支持HDMI和DVI-D端口。
»
最 高 分 辨 率：
HDMI: 4096 x 2160 @24Hz, 符合HDMI 1.4规范
DVI-D: 1920 x 1200 @60Hz
»
如需配置7.1声道，需要使用到一个HD前置音源输出模组，并且在系统音频工具中设置多声道功
能。
2/ 4/ 5�1/ 7�1-声道模式配置
音频接口 2 声道模式 4 声道模式 5�1 声道模式 7�1 声道模式
蓝色 (背部面板) 线性输入 线性输入 线性输入 侧边声道输出
绿色 (背部面板) 线性输出 前置声道输出 前置声道输出 前置声道输出
粉红色 (背部面板) 麦克风输入 麦克风输入 中置/重低单声道输出 中置/重低单声道输出
草绿色 (前置面板) 耳机 后置声道输出 后置声道输出 后置声道输出
